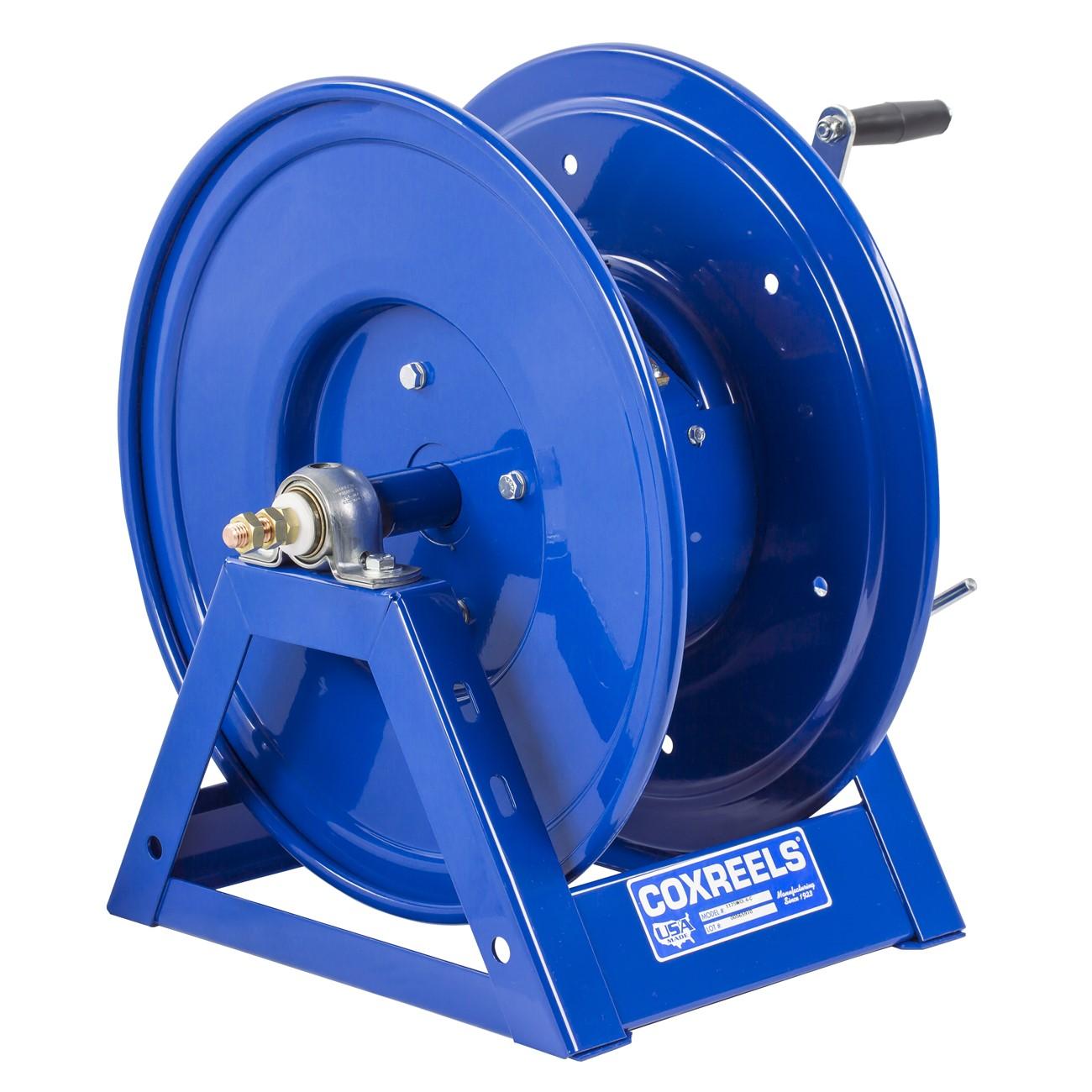

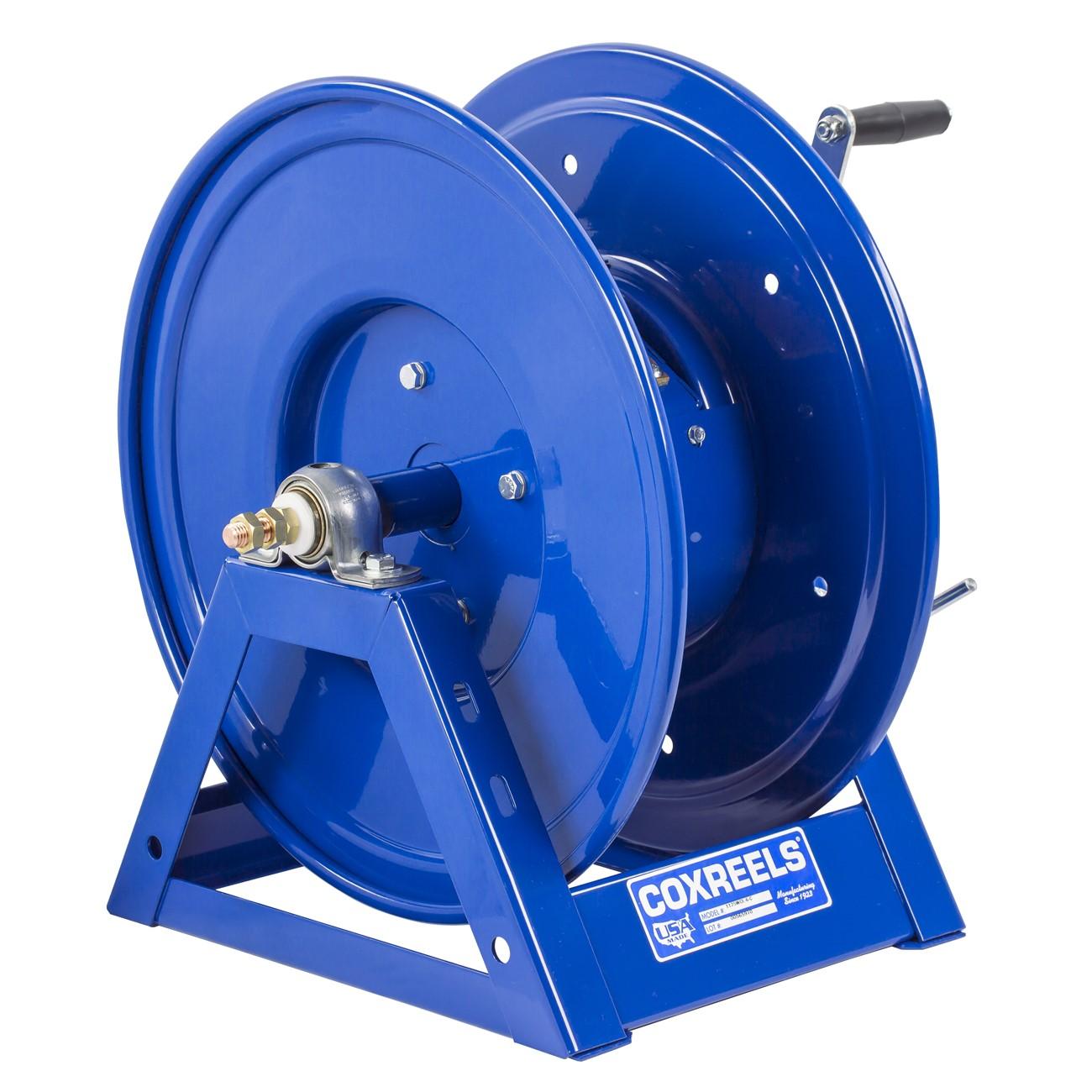

Coxreels 1125WCL-12-C Hand Crank Welding Cable Reel

Product Description

The COXREELS 1125WCL-12-C is a hand crank welding cable reel designed for grounding cable applications in welding and industrial environments. Built on a CNC robotically welded 12-gauge steel A-frame base, this reel houses all electrical components inside the drum for a narrow overall width profile. The drum-located slip ring assembly allows routine maintenance without removing the reel from its mount. A bevel-geared hand crank and adjustable tension brake round out the core mechanical design. Licensed electricians and welding equipment technicians are the primary installers of this reel.

The 1125WCL-12-C suits both residential shop and commercial welding applications where organized, durable cable management is required. It is well suited for grounding cable runs and can be paired with an optional stacking bracket to create a combined lead and ground setup in a single organized unit. The motorized drive option is available in the broader 1125WCL series for higher-demand installations. This reel is intended for use with welding cable and is sold as a single unit.

Key Features

• Drum-located slip ring assembly with removable access panel for maintenance without unmouting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and removal
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Long-handled locking pin secures the reel against rotation during storage or transport
• CPC powder coat finish resists chipping and rust; adjustable tension brake prevents freewheeling; bevel-geared crank for controlled retrieval

Compatibility

Designed for use with welding cable in grounding cable applications. An optional stacking bracket is available within the 1125WCL series to combine lead and ground reels into a single organized unit.

Installation Notes

Installation is typically performed by a licensed electrician or qualified welding equipment technician. De-energize all circuits and disconnect the welding power source before mounting or servicing the reel. The A-frame base mounting pattern should be fastened to a structurally adequate surface capable of supporting the reel and cable load. Refer to applicable NEC requirements for grounding cable installations in the work area.

Technical Specifications

• Drive Type: Hand Crank
• Frame Material: 12-Gauge Steel, Powder Coated
• Finish: CPC Powder Coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 38 pounds
• UPC: 674255827233

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-12-C
