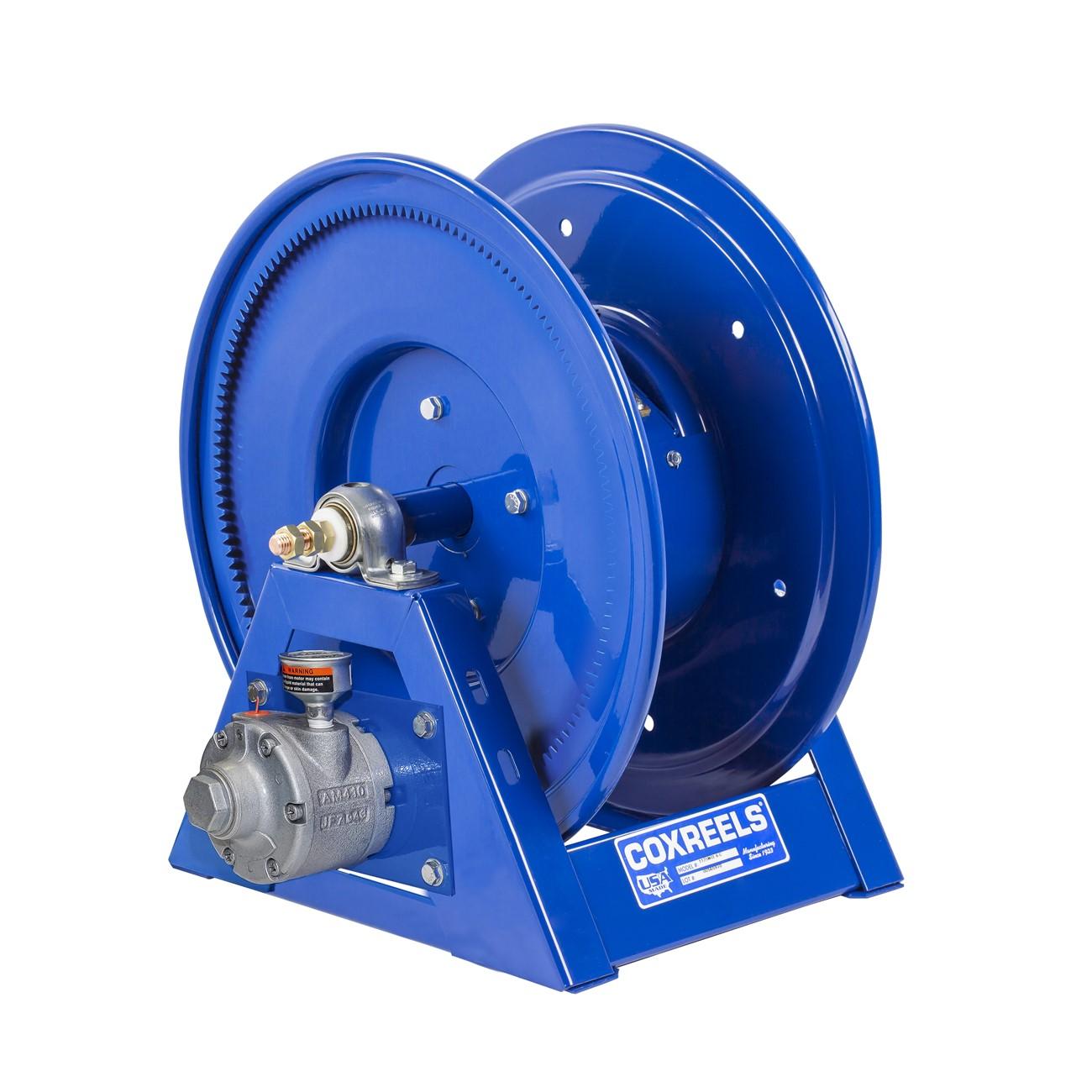

Coxreels 1125WCL-12-A Cable Reel Motor Drive Steel

Product Description

The COXREELS 1125WCL-12-A is a motorized welding cable reel designed for grounding cable management in industrial and welding service environments. Built on a heavy-duty CNC-welded 12-gauge steel A-frame base, this reel integrates all electrical components inside the drum for a compact, narrow-width profile. The powder coat finish resists chipping, rust, and corrosion for long service life. A drum-located slip ring assembly provides continuous electrical connection while the reel rotates, and an aluminum 4-vane air motor handles cable retrieval under load. Weighing 53 pounds, this unit is built for demanding shop and field applications.

The 1125WCL-12-A is suited for welding operations, grounding cable runs, and heavy-duty electrical service in both shop and field settings. The A-frame mounting base includes a pre-drilled mounting pattern for straightforward installation and removal. An optional stacking bracket allows a lead and ground reel to be combined into one organized unit, reducing floor space and keeping cable management tidy. This reel is appropriate for use wherever welding cable must be extended and retracted repeatedly while maintaining a reliable electrical ground path.

Key Features

• Drum-located slip ring assembly with removable access panel for routine maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece CNC-welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and reduced maintenance
• Long-handled locking pin secures the reel against rotation during storage or transport
• Chip-resistant, rust-inhibiting CPC powder coat finish and aluminum body 4-vane air motor drive

Compatibility

Designed as an OEM-style motorized cable reel for use with welding and grounding cable applications in the COXREELS 1125WCL Series. A stacking bracket accessory is available for lead and ground cable combination setups.

Installation Notes

Installation should be performed by a qualified electrician or welding equipment technician familiar with applicable NEC requirements. De-energize all circuits before mounting or servicing the reel. Secure the A-frame base to a stable surface using the integrated mounting pattern and appropriately rated hardware. Verify air supply compatibility before connecting the motor drive, and confirm the slip ring assembly connections are properly seated before returning the reel to service.

Technical Specifications

• Drive Type: Motor Drive (Air, 4-Vane Aluminum Body)
• Frame Material: 12-Gauge Steel, CNC Robotically Welded
• Finish: CPC Powder Coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 53 pounds
• Sold As: Each
• UPC: 674255923980

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-12-A
