Coxreels 1125PCL-8M-ED Motorized Cord Reel 250 Ft

Product Description

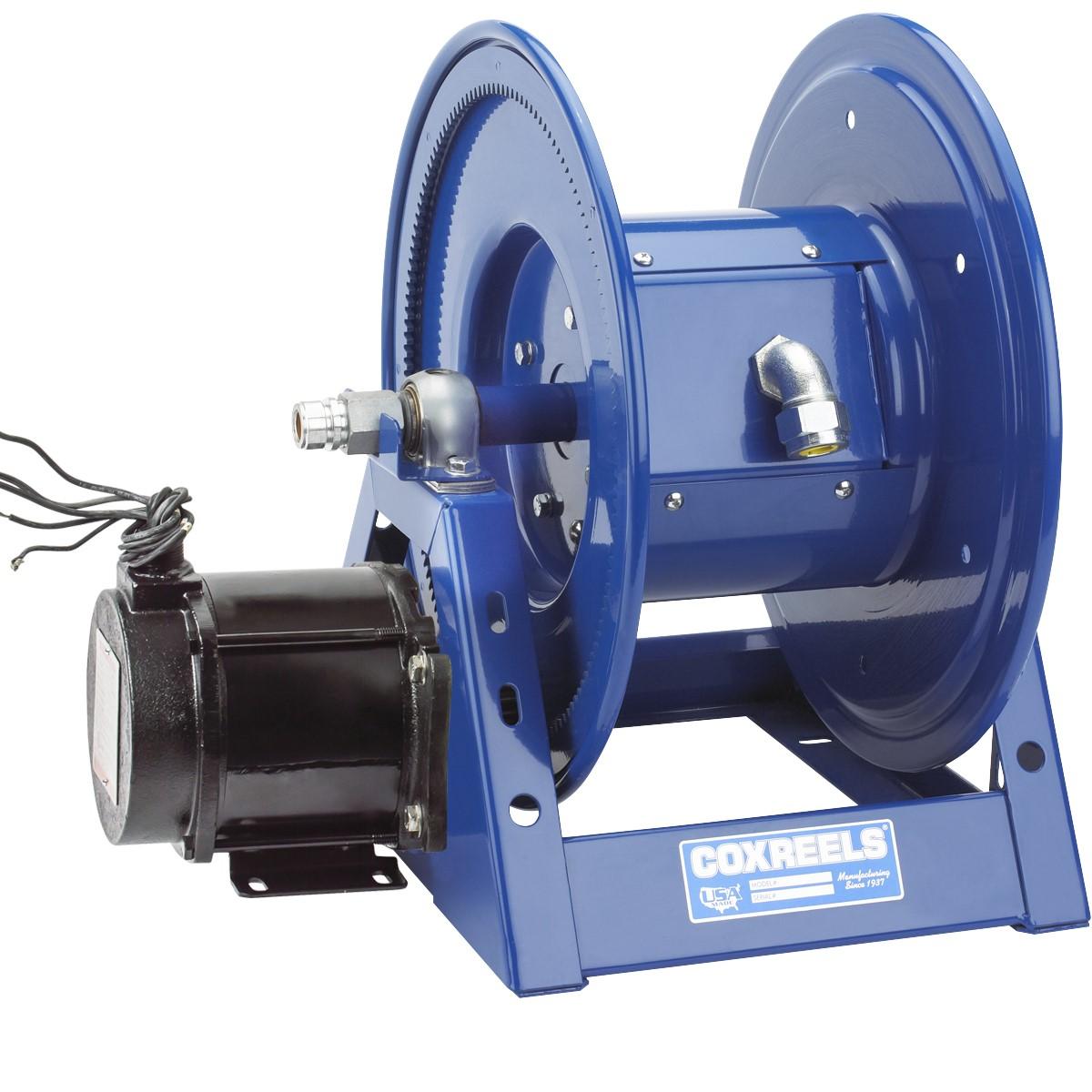

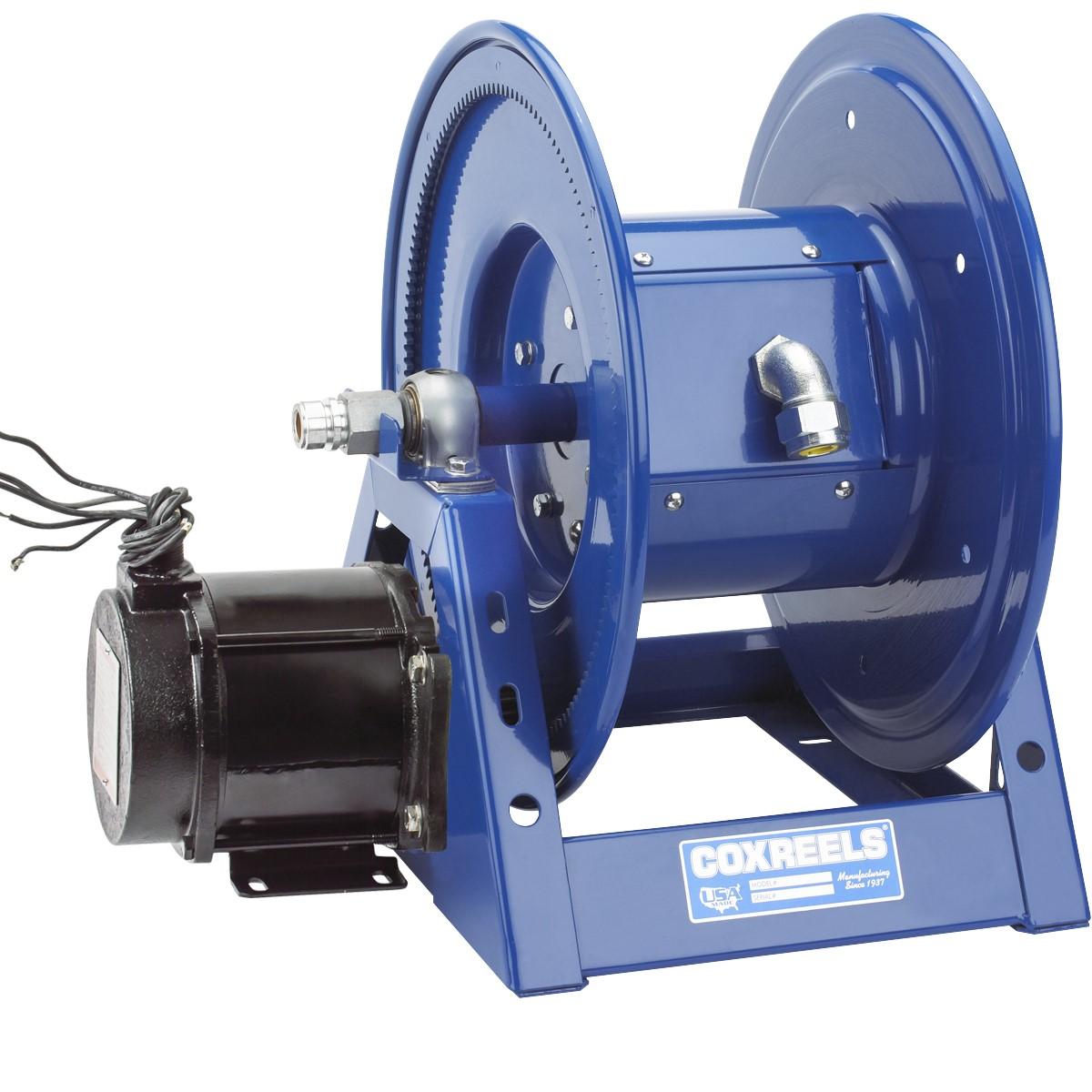

The COXREELS 1125PCL-8M-ED is a heavy-duty motorized cord reel built for demanding trade and industrial environments. It features a 12V DC, 1/2 HP explosion-proof reversible motor and is constructed with an all-welded 12-gauge steel A-frame base for maximum structural integrity. The drum-located slip ring assembly is accessible without removing the reel from its mount, reducing downtime during routine maintenance. Permanently lubricated, self-aligning pillow block bearings at each end of the drum ensure smooth rotation under continuous heavy use. This reel is designed to handle long runs of 12/3 or 10/3 gauge SO-type power cord, making it a reliable solution for electricians, maintenance crews, and industrial service teams.

The 1125PCL-8M-ED suits professional applications where a large-capacity motorized cord reel is required. Typical installations include industrial facilities, service vehicles, maintenance shops, and job sites where up to 250 feet of power cord must be deployed and retrieved efficiently. The explosion-proof motor designation makes it appropriate for environments where ignitable vapors or dust may be present. Licensed electricians and qualified industrial maintenance technicians are the primary installers for this class of reel.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered cord retrieval in hazardous-rated environments
• Drum-located slip ring assembly with removable access panel — no need to dismount the reel for routine maintenance
• All-welded, CNC robotically welded 12-gauge steel A-frame base for superior structural strength over bolted designs
• Heavy-duty CNC spun and ribbed discs with rolled edges for cord protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting during operation
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in tough conditions

Compatibility

Designed to accommodate long lengths of 12/3 gauge or 10/3 gauge SO-type power cord up to 250 feet. Part of the COXREELS 1125PCL Series of professional motorized cord reels.

Installation Notes

Installation should be performed by a licensed electrician familiar with NEC requirements for motorized cord reel systems. Disconnect and lock out all power sources before mounting or servicing the reel. Secure the A-frame base using the integrated mounting pattern in the steel base, and verify all electrical connections to the motor and slip ring assembly before restoring power. In explosion-proof-rated installations, confirm that all conduit fittings and enclosure seals meet the applicable hazardous-location classification requirements.

Technical Specifications

• Hose/Cord Capacity: 250 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Frame Material: 12-gauge steel, all-welded A-frame
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Lead Cable Length: 5 feet
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255924253

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8M-ED
