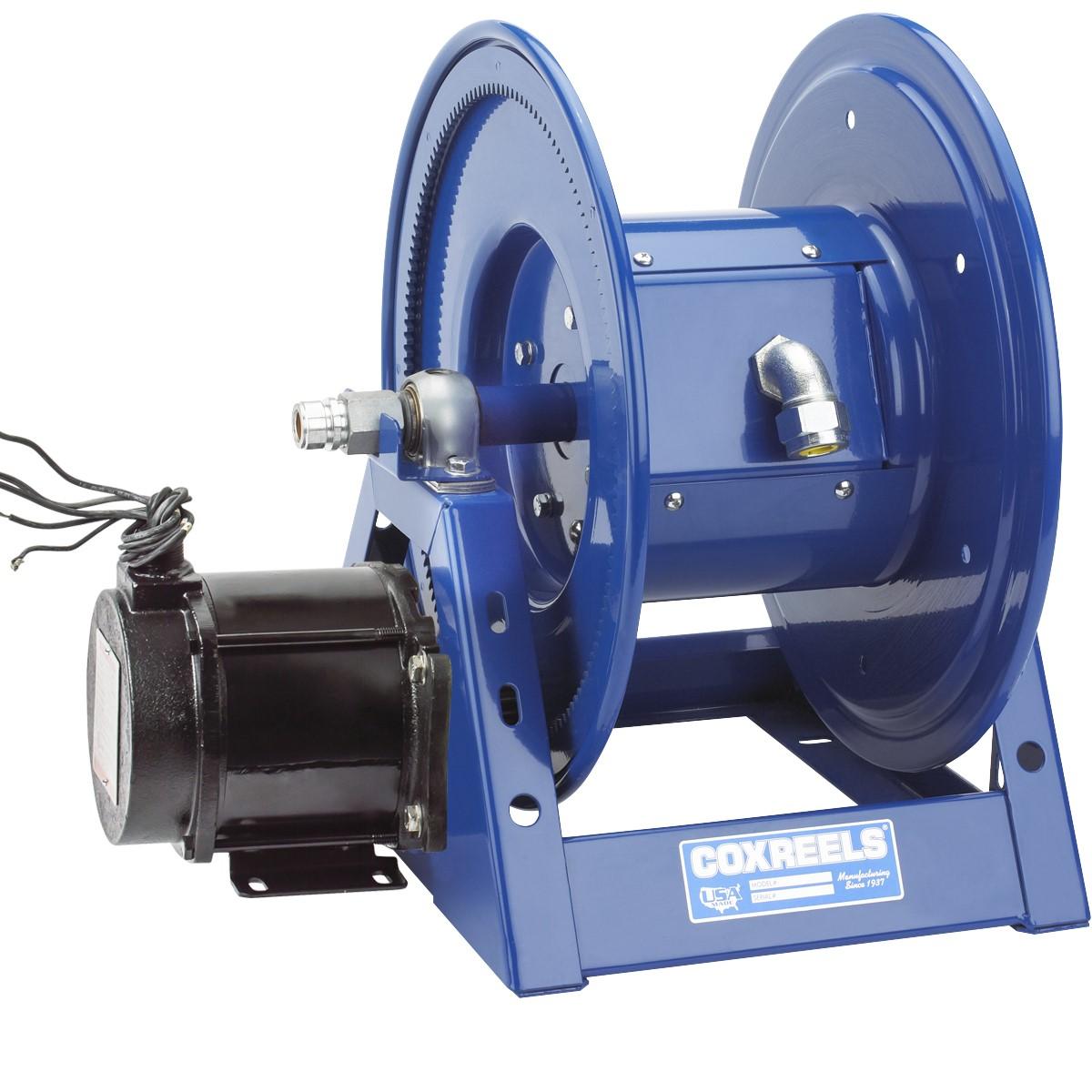

Coxreels 1125PCL-8M-EB Motorized Cord Reel 250 Ft Steel

Product Description

The COXREELS 1125PCL-8M-EB is a heavy-duty motorized cord reel designed for professional electrical cord management in demanding industrial and commercial environments. It stores and deploys up to 250 feet of 12/3 or 10/3 gauge SO-type power cord and is driven by a 24-volt DC, 1/3 HP reversible motor. The all-welded steel frame and CNC-spun ribbed discs give this reel the structural integrity needed for continuous use on job sites, in service bays, and in maintenance facilities. Licensed electricians and industrial maintenance technicians are the primary installers and operators of this unit.

The 1125PCL-8M-EB is suited for commercial and industrial applications where long cord runs are required and repeated retraction under load is the norm. Typical installations include manufacturing facilities, vehicle service centers, construction sites, and utility maintenance operations. The motorized retraction makes it well-suited for high-cycle environments where manual rewind is impractical. The integrated cable keeper and accessible slip ring assembly reduce downtime and simplify routine service without removing the reel from its mount.

Key Features

• 24V DC, 1/3 HP reversible motor for powered cord deployment and retraction
• Drum-located slip ring assembly with removable access panel for maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base for superior structural integrity
• Permanently lubricated, self-aligning pillow block bearings at each drum end for smooth rotation in heavy-duty conditions
• Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed to handle 12/3 gauge or 10/3 gauge SO-type power cord up to 250 feet in length. Part of the COXREELS 1125PCL Series of professional motorized cord reels.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Disconnect and lock out all power sources before servicing the slip ring assembly or motor connections. Ensure the mounting surface can support the loaded weight of the reel and cord. Do not exceed the rated cord gauge or length specified for this model.

Technical Specifications

• Hose/Cord Capacity: 250 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric motor
• Compatible Cord Type: 12/3 or 10/3 gauge SO-type power cord
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255924246

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8M-EB
