Product Description

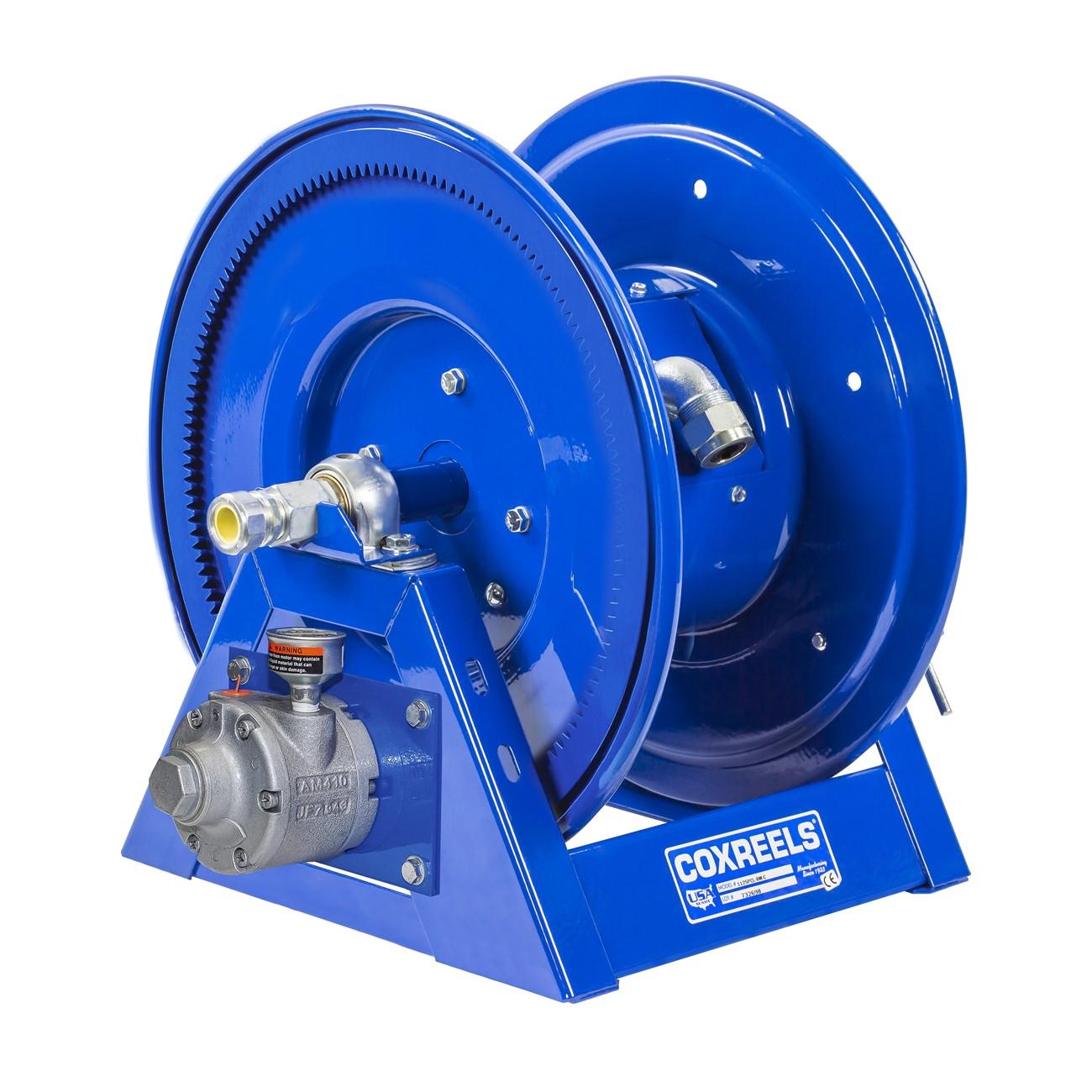

The COXREELS 1125PCL-8M-A is a heavy-duty motorized cord reel built for demanding trade and industrial applications. Part of the 1125PCL Series, it handles long runs of 12/3 or 10/3 gauge SO-type power cord up to 250 feet. The reel is constructed on an all-CNC robotically welded 12-gauge steel A-frame base, giving it the structural rigidity needed for rough-service environments. A drum-located slip ring assembly with a removable access panel allows routine maintenance without pulling the reel from its mount. Permanently lubricated, self-aligning pillow block bearings at each end of the drum deliver smooth rotation across the full range of motion. Licensed electricians and industrial maintenance technicians are the typical installers.

This cord reel is suited for commercial and industrial environments where a fixed, motorized retraction system is required. Typical applications include service garages, manufacturing facilities, construction sites, and industrial maintenance bays where long power cord runs must be managed safely and efficiently. The motor drive eliminates manual rewinding on 250-foot cord lengths, reducing operator fatigue and keeping cord stored neatly when not in use.

Key Features

• Drum-located slip ring assembly with removable panel for maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• All-CNC robotically welded one-piece 12-gauge steel A-frame base with integrated mounting pattern
• Permanently lubricated self-aligning pillow block bearings for smooth, trouble-free rotation
• Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting
• Chip-resistant, rust-inhibiting CPC powder coat finish for long-term durability in harsh environments
• Aluminum body 4-vane air motor drive for reliable motorized cord retraction

Compatibility

Designed to accept 12/3 gauge or 10/3 gauge SO-type power cord up to 250 feet in length. Part of the COXREELS 1125PCL Series platform.

Installation Notes

Installation is typically performed by a licensed electrician. Disconnect and lock out all power sources before servicing or mounting the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern. All wiring connections at the slip ring and cord terminations must comply with applicable NEC requirements for the circuit voltage and ampacity.

Technical Specifications

• Cord Capacity: 250 feet
• Cord Type: 12/3 or 10/3 gauge SO-type power cord
• Drive Type: Motor drive (aluminum body, 4-vane air motor)
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 43 pounds
• UPC: 674255924208

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8M-A
