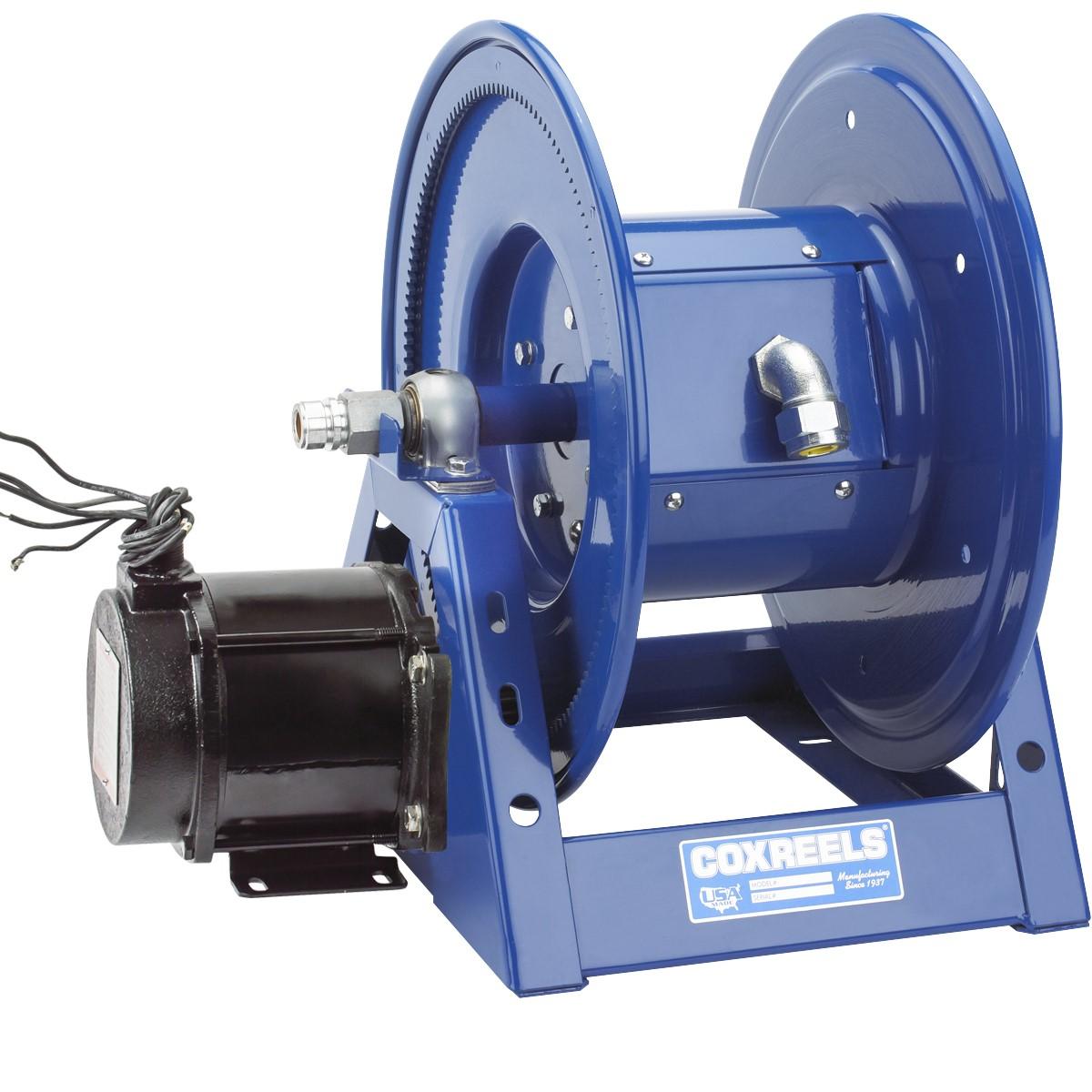

Coxreels 1125PCL-8-ED Motorized Cord Reel 250 Ft

Product Description

The COXREELS 1125PCL-8-ED is a heavy-duty motorized cord reel built for industrial and trade professionals who need reliable, high-capacity power cord management in demanding environments. The unit houses a 12V DC, 1/2 HP explosion-proof reversible motor and is constructed from 12-gauge welded steel with a CPC powder coat finish that resists chipping and rust. It accommodates long runs of 12/3 or 10/3 gauge SO-type power cord up to 250 feet, making it a practical solution for contractors, maintenance crews, and plant electricians who work across large job sites or facilities.

The 1125PCL-8-ED is suited for industrial, commercial, and heavy-duty field applications where a motorized retraction cord reel is required. Typical installation scenarios include shop floors, service bays, construction sites, and industrial facilities. The explosion-proof motor classification also makes it appropriate for environments where flammable vapors or dust may be present. A licensed electrician should handle wiring and motor connection work per applicable NEC requirements.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered cord retraction
• Drum-located slip ring assembly with removable access panel for in-place routine maintenance without removing the reel from its mount
• All-welded one-piece 12-gauge steel A-frame base for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings at each end of the drum for smooth rotation
• Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting
• Long-lasting CPC powder coat finish resists chips and rust in rough-service environments

Compatibility

Designed for use with 12/3 gauge or 10/3 gauge SO-type power cord up to 250 feet. Part of the COXREELS 1125PCL Series of professional-grade motorized cord reels.

Installation Notes

Installation and motor wiring should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power sources before servicing the slip ring assembly or any electrical components. The mounting pattern is located in the steel base to allow straightforward mounting and detachment from a fixed structure. Do not exceed the cord gauge and length ratings specified for this reel model.

Technical Specifications

• Motor Voltage: 12V DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Cord Capacity: 250 feet
• Compatible Cord Gauge: 12/3 or 10/3 gauge SO-type
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Lead Cable Length: 5 feet
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255924185

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8-ED
