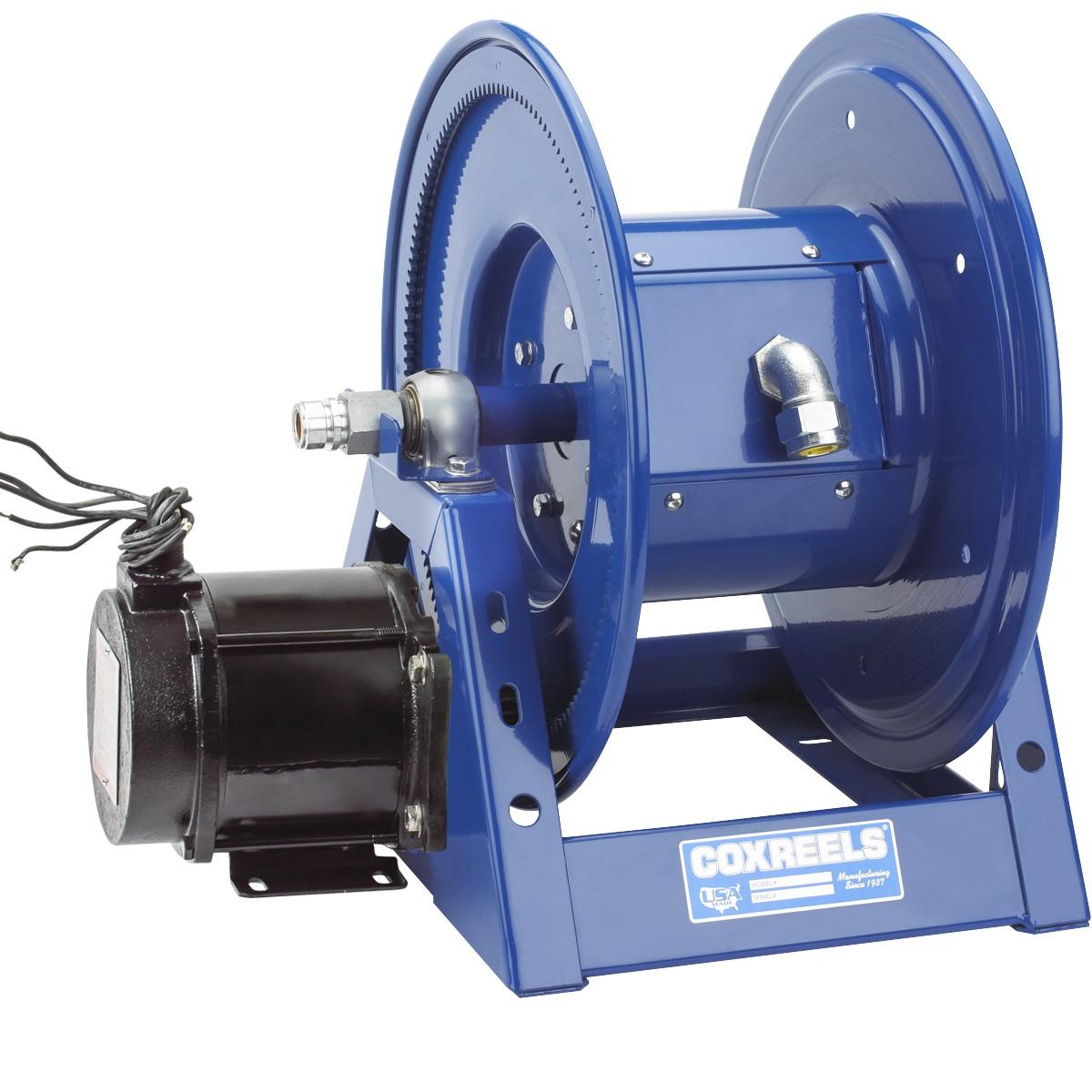

Coxreels 1125PCL-8-EB Motorized Cord Reel 250 Ft Steel

Product Description

The COXREELS 1125PCL-8-EB is a heavy-duty motorized cord reel built for demanding industrial and trade environments. It accommodates long runs of 12/3 or 10/3 gauge SO-type power cord up to 250 feet and is driven by a 24-volt DC, 1/3 HP reversible motor. The reel is constructed with an all-welded 12-gauge steel A-frame base and CNC robotically spun ribbed discs with rolled edges for structural integrity and operator safety. Licensed electricians and industrial maintenance technicians install this unit in shops, service bays, and job sites where managed cord deployment is required.

The 1125PCL-8-EB is suited for commercial and industrial applications where long power cord lengths must be stored, deployed, and retracted repeatedly without tangling or damage. Typical install scenarios include vehicle service facilities, construction sites, and manufacturing floors where 120-volt or 240-volt SO cord is routed overhead or wall-mounted. The integrated anti-rotation cable keeper controls the 5-foot lead cable and prevents whipping during reel operation.

Key Features

• Drum-located slip ring assembly with removable access panel for routine maintenance without dismounting the reel
• All-welded one-piece 12-gauge steel A-frame base for superior structural rigidity over bolted alternatives
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings at each drum end for smooth, low-maintenance rotation
• Integrated cable keeper prevents the 5-foot lead cable from whipping or twisting during operation
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style motorized cord reel in the COXREELS 1125PCL Series, compatible with 12/3 gauge and 10/3 gauge SO-type power cord applications up to 250 feet in length.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Power down all circuits before making any electrical connections to the slip ring assembly or motor wiring. Mount the reel to a structurally rated overhead or wall surface using the integrated mounting pattern in the steel base. Verify motor supply voltage and polarity before energizing to avoid damage to the 24-volt DC drive system.

Technical Specifications

• Hose/Cord Capacity: 250 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric motor
• Compatible Cord: 12/3 gauge or 10/3 gauge SO-type power cord
• Frame Material: 12-gauge steel, all-welded A-frame
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255924178

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8-EB
