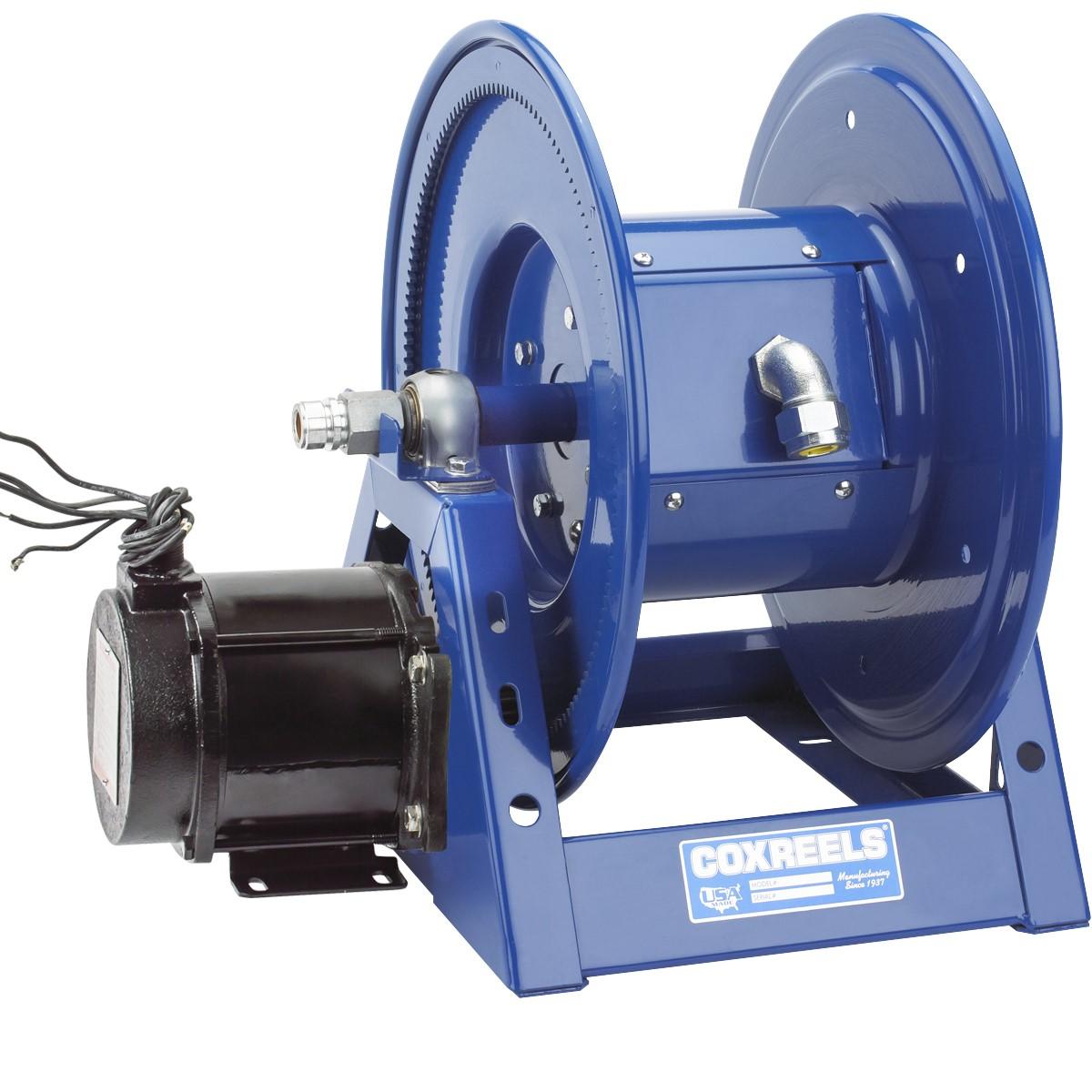

Coxreels 1125PCL-8-EA Motorized Cord Reel 250 Ft

Product Description

The COXREELS 1125PCL-8-EA is a heavy-duty motorized cord reel built for demanding industrial and trade applications. Designed to handle long lengths of 12/3 or 10/3 gauge SO-type power cord up to 250 feet, it runs on a 115 volt AC, 1/2 HP reversible AC rectified motor for powered retrieval. The reel is constructed with a sturdy all-welded steel A-frame base and features heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength and operator safety. Licensed electricians and industrial maintenance crews are the primary installers and operators of this unit.

The 1125PCL-8-EA is suited for commercial and industrial environments where long cord management is required — shop floors, service bays, construction sites, and facilities maintenance operations. The drum-located slip ring assembly allows routine maintenance without removing the reel from its mount, reducing downtime during regular service intervals. The integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting during operation, making it appropriate for high-cycle work environments.

Key Features

• 115 volt AC, 1/2 HP reversible AC rectified motor for powered cord retrieval
• Drum-located slip ring assembly with removable access panel — no need to dismount the reel for maintenance
• All-welded 12-gauge steel A-frame base provides superior structural rigidity over bolted alternatives
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings at each drum end for smooth, trouble-free rotation
• Integrated anti-rotation cable keeper prevents lead cable whipping and twisting
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh environments

Compatibility

Designed to accommodate 12/3 gauge or 10/3 gauge SO-type power cord up to 250 feet in length. Part of the COXREELS 1125PCL Series of professional-grade motorized cord reels.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for cord and cable management equipment. Power down and lockout the circuit before making any electrical connections to the motor or slip ring assembly. The mounting pattern is located in the steel base for straightforward installation and detachment from the mounting surface. Do not exceed the rated cord gauge or length for this reel model.

Technical Specifications

• Hose/Cord Capacity: 250 ft
• Motor: 115 volt AC, 1/2 HP reversible AC rectified
• Frame Material: 12-gauge welded steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 61 pounds
• Finish: CPC powder coat
• UPC: 674255924161

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8-EA
