Coxreels 1125PCL-8-E Cord Reel 250 Ft Motor Drive Steel

Product Description

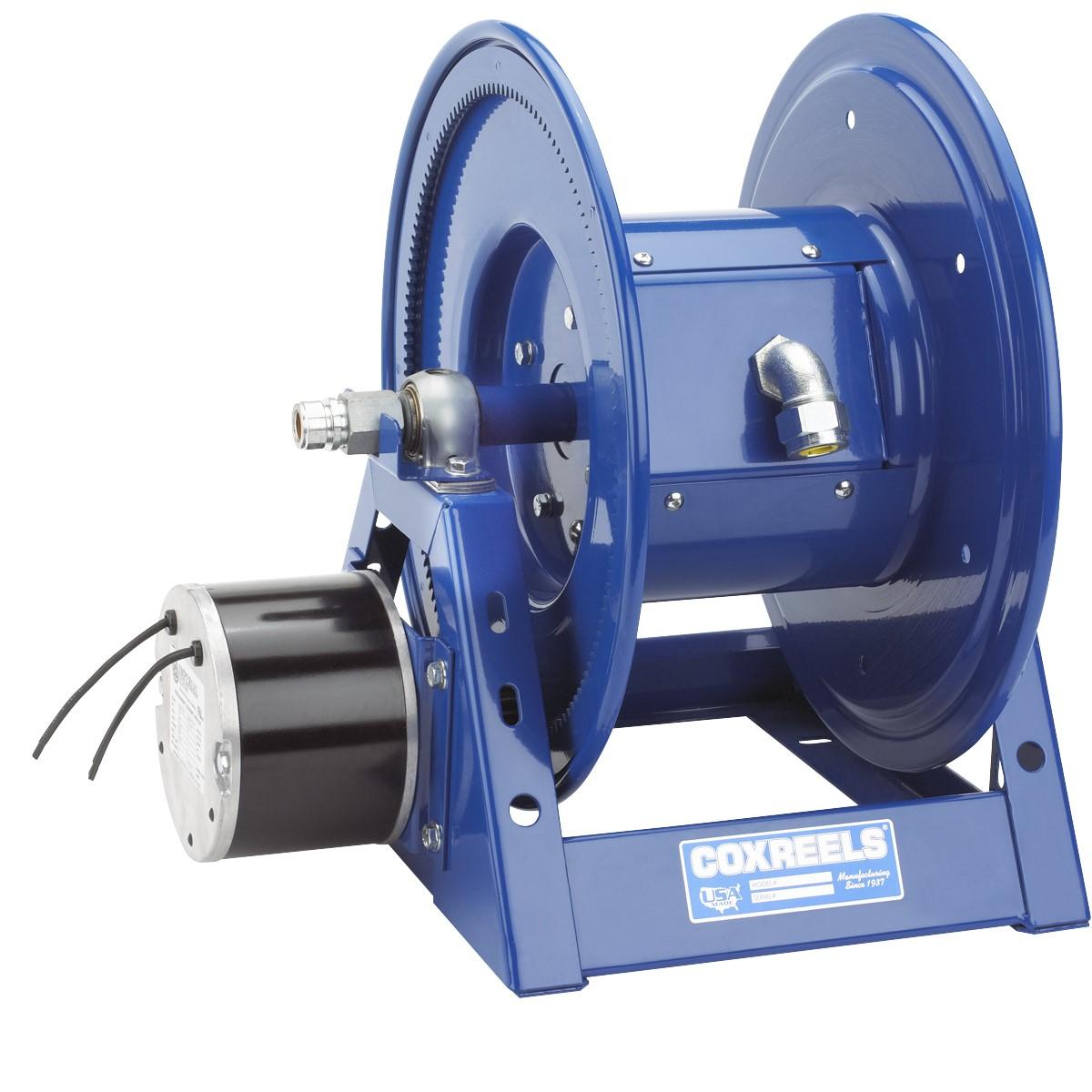

The COXREELS 1125PCL-8-E is a heavy-duty motorized cord reel built for demanding industrial and commercial applications. It runs on a 12V DC, 1/3 HP reversible motor and is engineered to manage up to 250 feet of 12/3 or 10/3 gauge SO-type power cord. The all-welded steel A-frame construction and CNC-spun ribbed discs give this reel the structural integrity required for rough service environments. A drum-located slip ring assembly provides access to routine maintenance components without removing the reel from its mount. Licensed electricians and industrial maintenance technicians are the primary installers.

The 1125PCL-8-E is suited for industrial facilities, construction sites, service shops, and commercial operations where long cord runs and repeated deployment cycles are the norm. Its motor-driven retraction simplifies handling of heavy cord lengths that would otherwise require significant manual effort. The integrated anti-rotation cable keeper controls the 5-foot lead cable, preventing whipping or twisting during operation. Applications include powering portable equipment, work lighting, and electrical tools across extended distances.

Key Features

• 12V DC, 1/3 HP reversible motor for powered cord retraction and extension
• Drum-located slip ring assembly with removable access panel for maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece, all-welded 12-gauge steel A-frame base for superior structural rigidity
• Permanently lubricated, self-aligning pillow block bearings at each drum end for smooth rotation in heavy-duty conditions
• Integrated anti-rotation cable keeper controls the 5-foot lead cable and prevents twisting or whipping
• CPC powder coat finish resists chipping and rust for long service life

Compatibility

Designed to handle 12/3 gauge and 10/3 gauge SO-type power cord up to 250 feet in length. Part of the COXREELS 1125PCL Series of professional-grade motorized cord reels.

Installation Notes

Installation should be performed by a qualified electrician familiar with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. The steel A-frame base includes a built-in mounting pattern for straightforward attachment to fixed structures. Do not exceed the rated cord gauge or length specified for this reel.

Technical Specifications

• Cord Capacity: 250 feet
• Compatible Cord Gauge: 12/3 or 10/3 SO-type power cord
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 48 pounds
• UPC: 674255924154

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8-E
