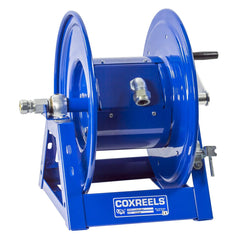

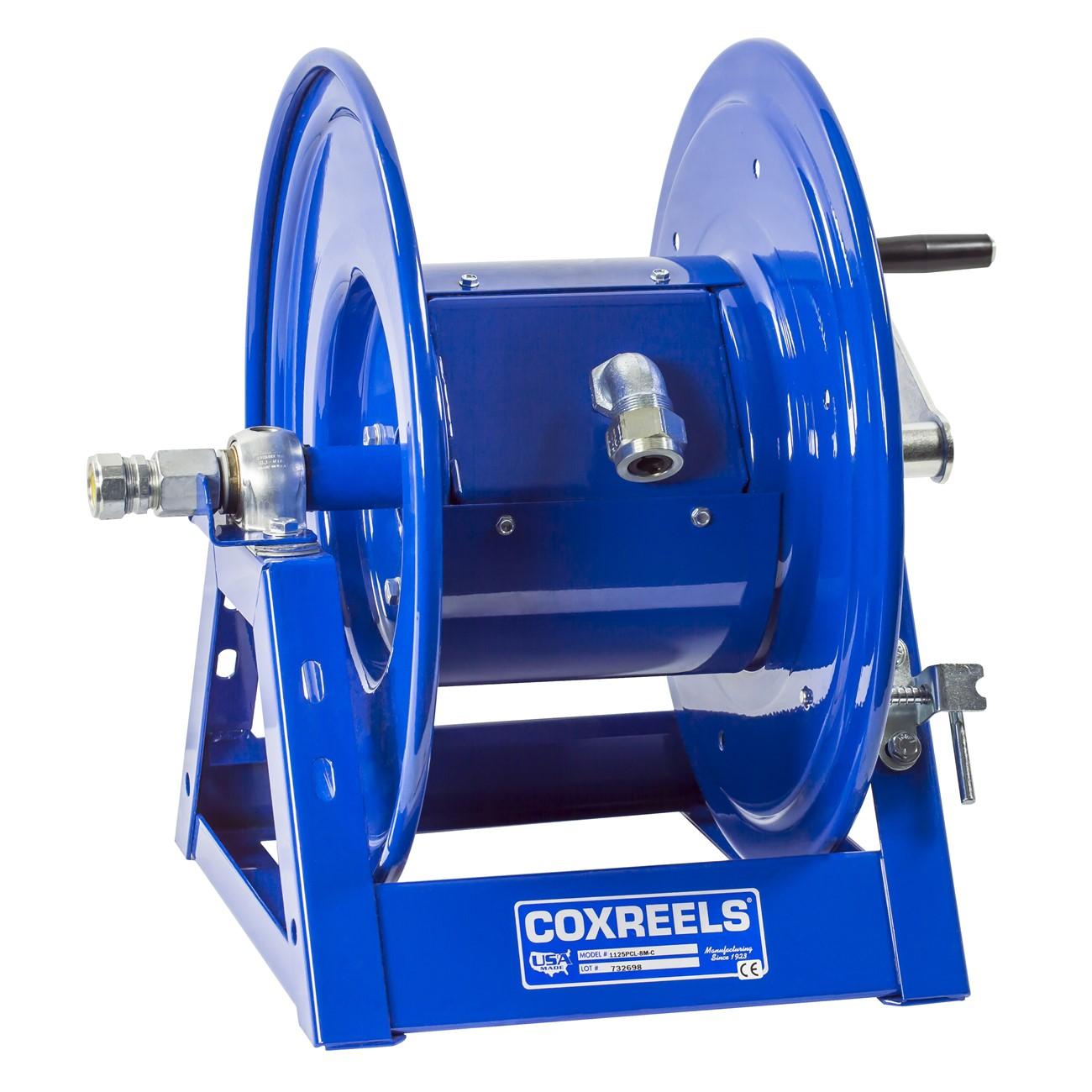

Coxreels 1125PCL-8-C Hand Crank Cord Reel 250 Ft

Product Description

The COXREELS 1125PCL-8-C is a heavy-duty hand crank cord reel built for professional trade use in demanding electrical and industrial service applications. It handles long runs of 12/3 or 10/3 Gage SO type power cord up to 250 feet and is constructed around a sturdy all-welded steel frame. The drum-located slip ring assembly is accessible without removing the reel from its mount, making routine maintenance straightforward for field technicians. Permanently lubricated, self-aligning pillow block bearings at each drum end deliver smooth rotation under heavy loads. A CPC powder coat finish resists chips and rust for extended service life.

This cord reel is suited for residential and commercial electrical service work, industrial maintenance, and job site power distribution where long cord lengths and reliable retraction are required. It is installed by licensed electricians and industrial maintenance technicians in fixed or semi-permanent mount configurations. The adjustable tension brake prevents free-wheeling during deployment, and the front bevel-geared hand crank provides controlled mechanical retraction. The integrated cable keeper manages the 5-foot lead cable to prevent whipping or twisting during operation.

Key Features

• Drum-located slip ring assembly with removable access panel — no reel dismounting required for routine service
• CNC robotically spun and ribbed disc ends with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12 Gage steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings at each drum end for smooth, trouble-free rotation
• Integrated anti-rotation cable keeper controls the 5-foot lead cable and prevents whipping or twisting
• Adjustable tension brake and front bevel-geared crank for controlled cord deployment and mechanical retraction

Compatibility

Designed to handle 12/3 or 10/3 Gage SO type power cord up to 250 feet in length. Part of the COXREELS 1125PCL Series of professional-grade hand crank and motorized cord reels.

Installation Notes

Installation is typically performed by a licensed electrician following applicable NEC guidelines. Power down all circuits before connecting or servicing the cord reel and slip ring assembly. Secure the A-frame base to a structurally sound mounting surface using the integrated mounting pattern in the steel base. Do not exceed the rated cord gauge or length for this reel model.

Technical Specifications

• Cord Capacity: 250 feet
• Compatible Cord Gauge: 12/3 or 10/3 Gage SO type power cord
• Drive Type: Hand Crank
• Frame Material: 12 Gage Welded Steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 35 pounds
• Finish: CPC Powder Coat
• UPC: 674255924147

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125PCL-8-C
