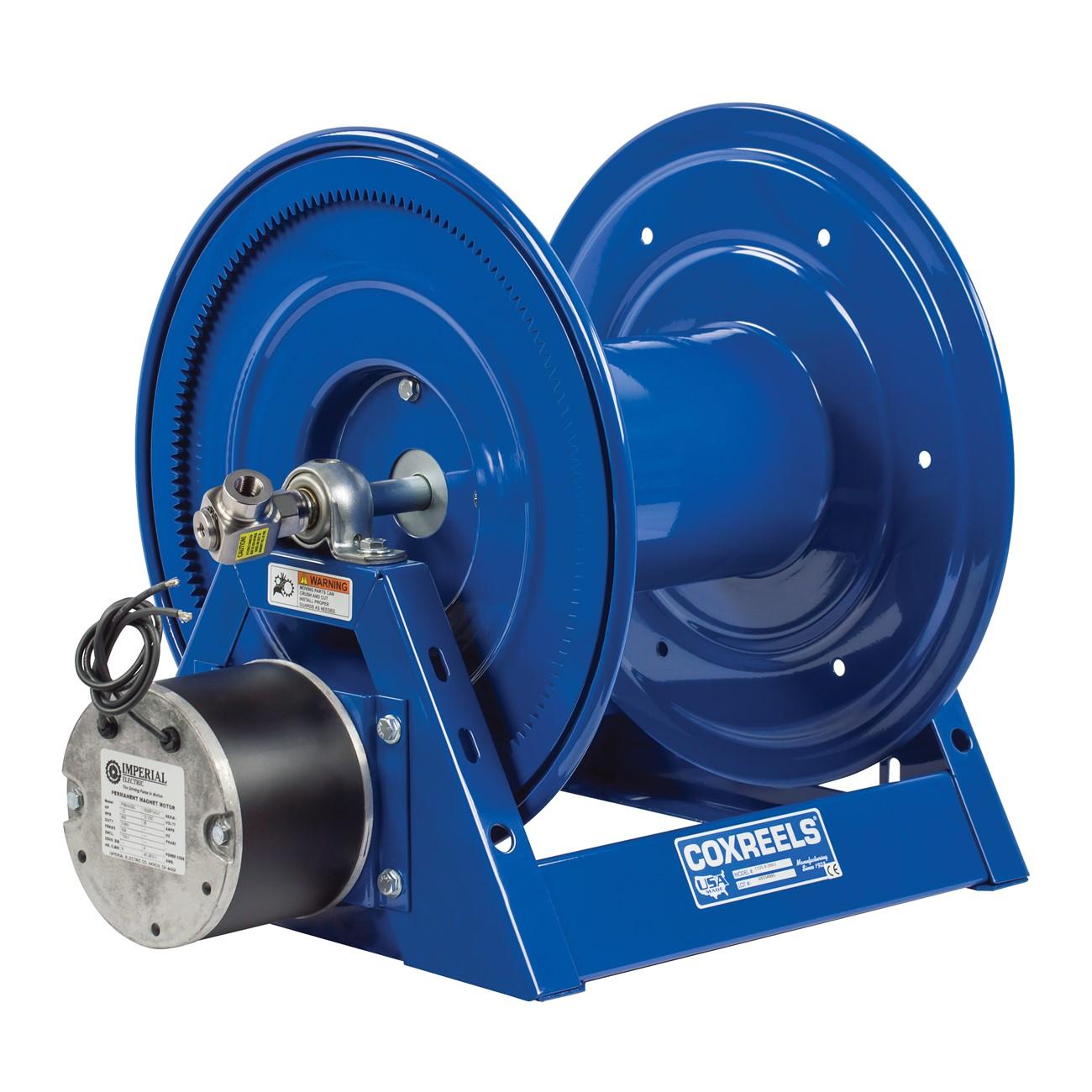

Coxreels 1125P-4-8-E Pure Flow Hose Reel 1/2 Inch Id

Product Description

The COXREELS 1125P-4-8-E is a motorized Pure Flow series hose reel engineered for clean-fluid transfer applications including breathing air, potable water, and other sanitized fluid systems. Driven by a 12-volt DC, 1/3 HP reversible electric motor, this reel features a fully stainless steel air and fluid path with a stainless steel 90-degree full-flow NPT swivel inlet lubricated with non-toxic, food-grade grease. The result is a reel that keeps fluid transfer free of contamination throughout the service cycle. At 50 pounds and built on a one-piece CNC robotically welded 12-gauge steel A-frame base, the unit is constructed for demanding industrial and trade environments.

The 1125P-4-8-E is suited for facilities and mobile service operations that require dependable, contamination-free hose management. Typical installations include respiratory air supply systems in low- and high-pressure breathing applications, potable water distribution on job sites, and any service scenario where hose cleanliness and fluid integrity are mandatory. The electric motorized retraction makes it well-suited for high-frequency use where manual rewinding is impractical. Licensed contractors, industrial hygienists, and facility maintenance professionals are the primary installers of this reel.

Key Features

• Stainless steel air and fluid path with stainless steel 90-degree full-flow NPT swivel inlet for contamination-free transfer
• Non-toxic, food-grade grease in swivel for potable water and breathing air compliance
• 12-volt DC, 1/3 HP reversible electric motor for powered retraction
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot for non-crimping, flat hose wrap
• Chip-resistant, rust-inhibiting CPC powder coat finish for long-term durability
• Adjustable tension brake prevents free-wheeling during hose deployment

Compatibility

Designed as an OEM-style motorized hose reel for use with 1/2-inch inner diameter hose in breathing air, potable water, and clean-fluid transfer systems requiring a stainless steel fluid path.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with compressed air or fluid distribution systems and low-voltage DC wiring. Shut off the fluid supply and disconnect all electrical power to the motor circuit before mounting or servicing the reel. Secure the reel to a structurally sound mounting surface using the integrated base mounting pattern. Confirm motor polarity and circuit protection comply with applicable NEC requirements before energizing.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Frame Material: 12-gauge steel, CNC robotically welded
• Fluid Path Material: Stainless steel
• Swivel Type: Stainless steel 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255829169

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125P-4-8-E
