Coxreels 1125P-4-6-EA Pure Flow Motorized Hose Reel

Product Description

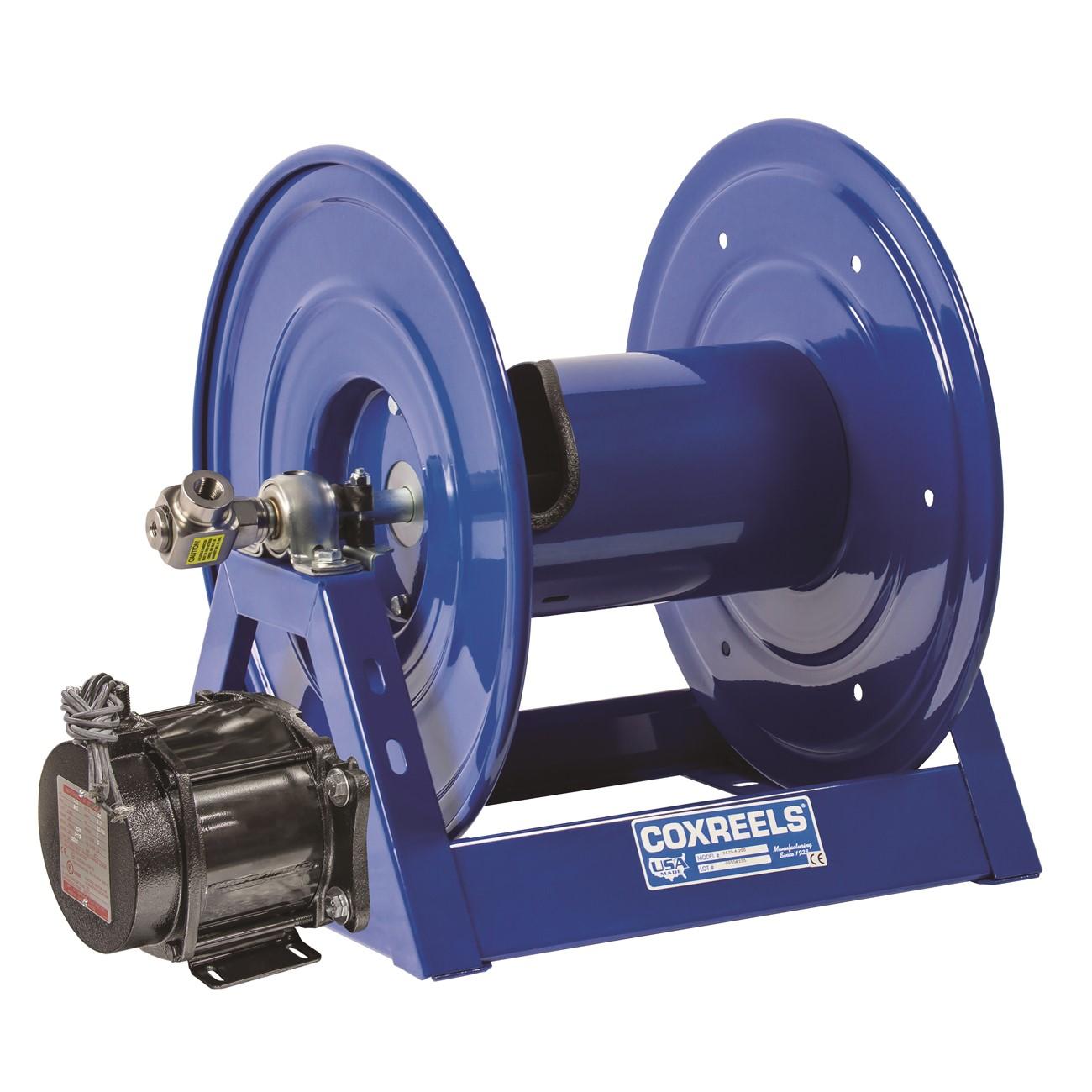

The COXREELS 1125P-4-6-EA is a motorized Pure Flow series hose reel engineered for the safe transfer of breathing air, potable water, and other clean fluids requiring a contaminant-free fluid path. The reel features a fully stainless steel air and fluid path, including a stainless steel swivel with non-toxic food-quality grease, keeping transferred media free from contamination. It is driven by a 115-volt AC, 1/2 HP reversible AC rectified motor and is built around a one-piece CNC robotically welded 12-gauge steel A-frame base. Licensed contractors, safety professionals, and industrial service technicians specify this reel for applications where fluid purity and worker safety are non-negotiable requirements.

The 1125P-4-6-EA fits applications involving low- or high-pressure respiratory air systems, drinking water distribution lines, and any hose service requiring sanitized, non-contaminated fluid transfer. Its 1/2-inch ID and 7/8-inch OD hose path suits common trade hose sizes used in industrial, food service, and safety compliance environments. The reel is suited for permanent wall, floor, or ceiling mounting and is designed for both commercial and light industrial facilities where reliable, repeatable hose management is required.

Key Features

• Stainless steel air and fluid path with machined stainless steel 90-degree full-flow NPT swivel inlet prevents corrosion and contamination
• 115-volt AC, 1/2 HP reversible AC rectified motor provides powered retraction and payout
• One-piece CNC robotically welded 12-gauge steel A-frame base delivers rigid, bolt-free structural integrity
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Exclusive low-profile outlet riser and open drum slot design enables a flat, non-crimping hose wrap
• Chip-resistant, rust-inhibiting CPC powder coat finish with adjustable tension brake to prevent free-wheeling

Compatibility

Designed as an OEM-style motorized hose reel for use with 1/2-inch ID hose lines in respiratory air, potable water, and clean-fluid transfer systems requiring stainless steel fluid paths.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and applicable electrical codes. Disconnect and lock out all electrical power before servicing the motor or wiring connections. The A-frame base mounting pattern allows fixed installation to walls, floors, or ceilings using appropriate fasteners for the substrate. Verify hose inlet thread compatibility with existing NPT fittings before final installation.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Frame Material: 12-gauge steel, CNC robotically welded
• Fluid Path Material: Stainless steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 62 pounds
• Finish: CPC powder coat
• UPC: 674255830967

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125P-4-6-EA
