Coxreels 1125P-4-12-ED Pure Flow Hose Reel 12V Dc

Product Description

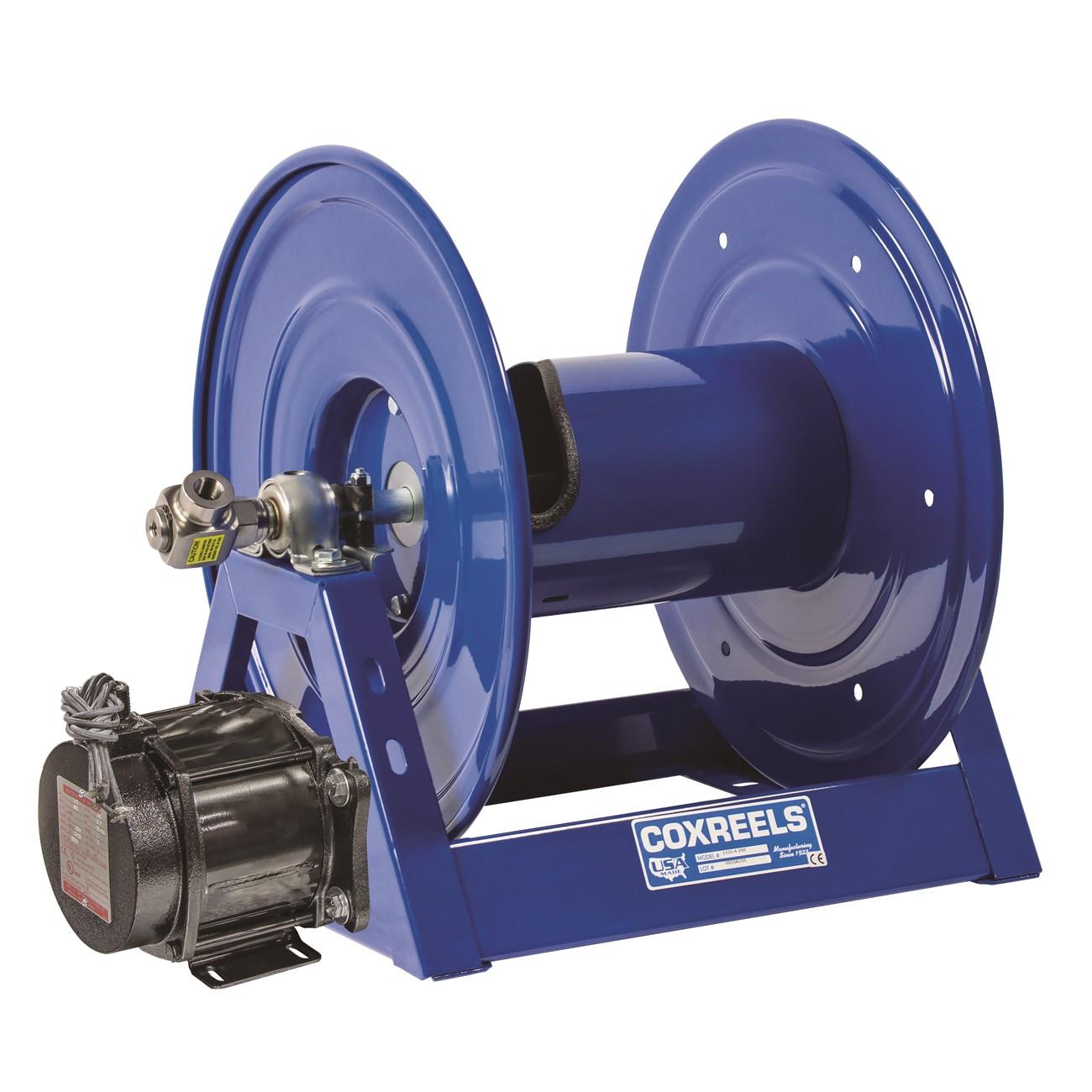

The COXREELS 1125P-4-12-ED is a motorized Pure Flow series hose reel built for the safe, non-contaminated transfer of breathing air, potable water, and other clean fluids. It features a fully stainless steel air and fluid path, a stainless steel 90-degree full-flow NPT swivel inlet, and a 12V DC 1/2 HP explosion-proof reversible motor for powered retraction. The drum and frame are constructed from 12-gauge CNC robotically welded steel with a chip-resistant, rust-inhibiting CPC powder coat finish. This reel ships as a single unit and weighs 65 pounds. It is intended for installation by licensed or qualified trade professionals in respiratory, potable water, or clean-fluid hose management applications.

The 1125P-4-12-ED is designed for hose lines with a 1/2 inch inner diameter and 7/8 inch outer diameter. Typical applications include low- and high-pressure breathing air systems, drinking water distribution lines, and any service requiring sanitized fluid transfer. The motorized electric drive makes it well-suited for fixed service bays, industrial facilities, and commercial settings where repeated powered hose retrieval is required. The adjustable tension brake prevents free-wheeling during payout.

Key Features

• Stainless steel air and fluid path with non-toxic, food-quality grease for contamination-free fluid transfer
• 12V DC, 1/2 HP explosion-proof reversible motor with electric drive retraction
• Stainless steel 90-degree full-flow NPT swivel inlet for reliable, leak-resistant connection
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot for non-crimping, flat hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation
• CPC powder coat finish resists chipping and rust for long service life

Compatibility

Designed for use with 1/2 inch inner diameter, 7/8 inch outer diameter hose lines in breathing air, potable water, and clean-fluid transfer systems requiring a motorized 12V DC electric-drive reel.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting, low-voltage DC wiring, and applicable local codes. Disconnect and lock out all power and fluid supply before servicing or mounting the reel. Ensure the mounting surface can support the reel weight of 65 pounds plus the loaded hose. Verify the 12V DC power source is correctly fused and wired per NEC requirements before energizing the motor.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Frame Material: 12-gauge CNC welded steel
• Fluid Path Material: Stainless steel
• Swivel Type: 90-degree full-flow NPT stainless steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 65 pounds
• UPC: 674255854710

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125P-4-12-ED
