Coxreels 1125-6-50-EA Hose Reel 1 Inch Id 50 Ft

Product Description

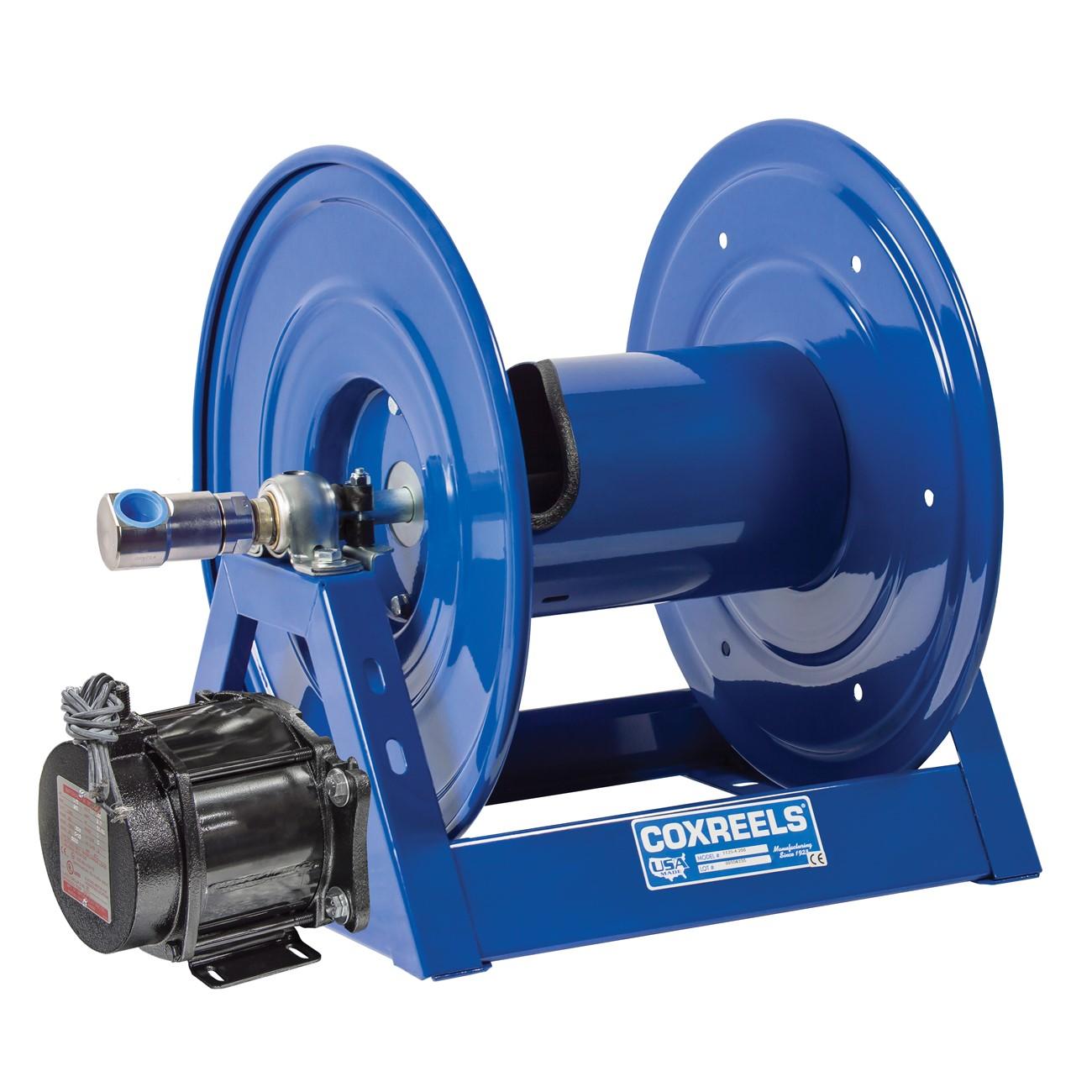

The COXREELS 1125-6-50-EA is a heavy-duty hand crank and motorized hose reel from the 1125 Series, built for demanding industrial and commercial applications. It features a 1 inch inner diameter hose path and accommodates up to 50 feet of hose. The reel is driven by a 115 volt AC, 1/2 HP reversible AC rectified motor and is constructed around a one-piece all-welded 12-gauge steel A-frame base. The low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap, reducing hose wear and extending service life. Licensed contractors and industrial maintenance crews are the primary installers.

This reel is suited for industrial facilities, manufacturing environments, and commercial service applications where reliable hose management and consistent fluid delivery are required. The 1125 Series design is sized for operations that demand high-volume hose handling with durable, repeatable performance. The electroless nickel-plated steel 90-degree full-flow NPT swivel inlet supports efficient fluid routing in fixed or semi-permanent mount installations.

Key Features

• One-piece all-welded 12-gauge steel A-frame base provides superior structural rigidity without bolted joints
• 115 volt AC, 1/2 HP reversible AC rectified motor for powered hose retrieval
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet for leak-resistant fluid transfer
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term service
• CPC powder coat finish resists chipping and rust for extended field life
• Low-profile outlet riser and open drum slot design prevents hose crimping during wrap

Compatibility

Designed as an OEM-style replacement or direct installation unit for industrial and commercial hose reel applications requiring a 1 inch ID hose path and up to 50 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid handling and electrical systems. Shut off fluid supply and disconnect electrical power before mounting or servicing the reel. The steel A-frame base includes a mounting pattern for secure anchoring to a fixed surface — use fasteners appropriate for the mounting substrate. Electrical connection of the 115 volt AC motor must comply with applicable NEC requirements for the installation environment.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 50 feet
• Motor: 115 volts AC, 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 81 pounds
• UPC: 674255824898

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-6-50-EA
