Coxreels 1125-6-35-EF Motorized Hose Reel 1 in 35 Ft 24V Dc

Product Description

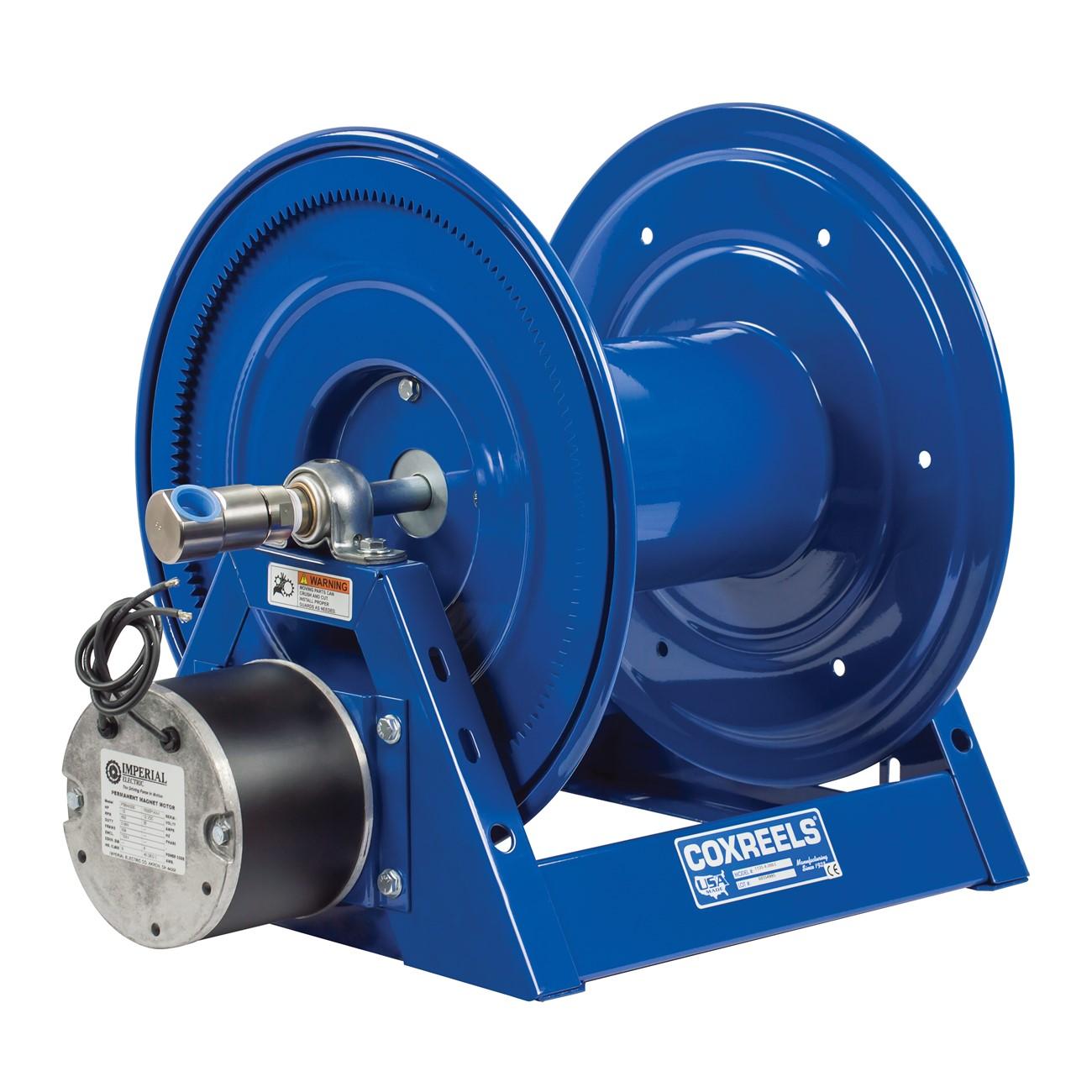

The COXREELS 1125-6-35-EF is a motorized hose reel from the 1125 Series, designed for demanding industrial and trade applications. It features a 24-volt DC, 1/3 HP reversible electric motor for powered retrieval and a hand-crank option for manual operation. The reel accepts hose with a 1-inch ID and 1 7/16-inch OD and holds 35 feet of hose. The frame is a one-piece all-welded 12-gauge steel A-frame base, providing rigid structure without bolted joints. CNC robotically spun and ribbed disc ends with rolled edges protect the hose and the operator. A CPC powder-coat finish resists chipping and corrosion for long service life.

The 1125-6-35-EF suits industrial facilities, fleet maintenance shops, oil and gas field service, and heavy-duty commercial environments where consistent hose management is required. The low-profile outlet riser and open drum slot design keeps hose lay flat and prevents crimping during retraction. This reel is installed by maintenance mechanics, industrial technicians, and licensed tradespeople working in fixed-station or vehicle-mounted service setups. The electroless nickel-plated steel swivel inlet provides full-flow NPT connection to the supply line.

Key Features

• 24V DC, 1/3 HP reversible motor for powered hose retrieval
• One-piece all-CNC-welded 12-gauge steel A-frame base — no bolted joints
• CNC robotically spun and ribbed disc ends with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat wrap
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Chip-resistant, rust-inhibiting CPC powder-coat finish

Compatibility

Designed for use with 1-inch ID, 1 7/16-inch OD hose up to 35 feet in length. Part of the COXREELS 1125 Series platform for industrial hand-crank and motorized hose reel applications.

Installation Notes

Installation should be performed by a qualified mechanic or electrician familiar with low-voltage DC wiring and mechanical mounting practices. Disconnect and lockout all power sources before wiring the 24V DC motor circuit. Secure the reel to a rigid mounting surface using the integrated base mounting pattern. Follow applicable electrical codes for low-voltage DC installations when connecting the motor supply.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1 7/16 inches
• Hose Capacity: 35 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255855946

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-6-35-EF
