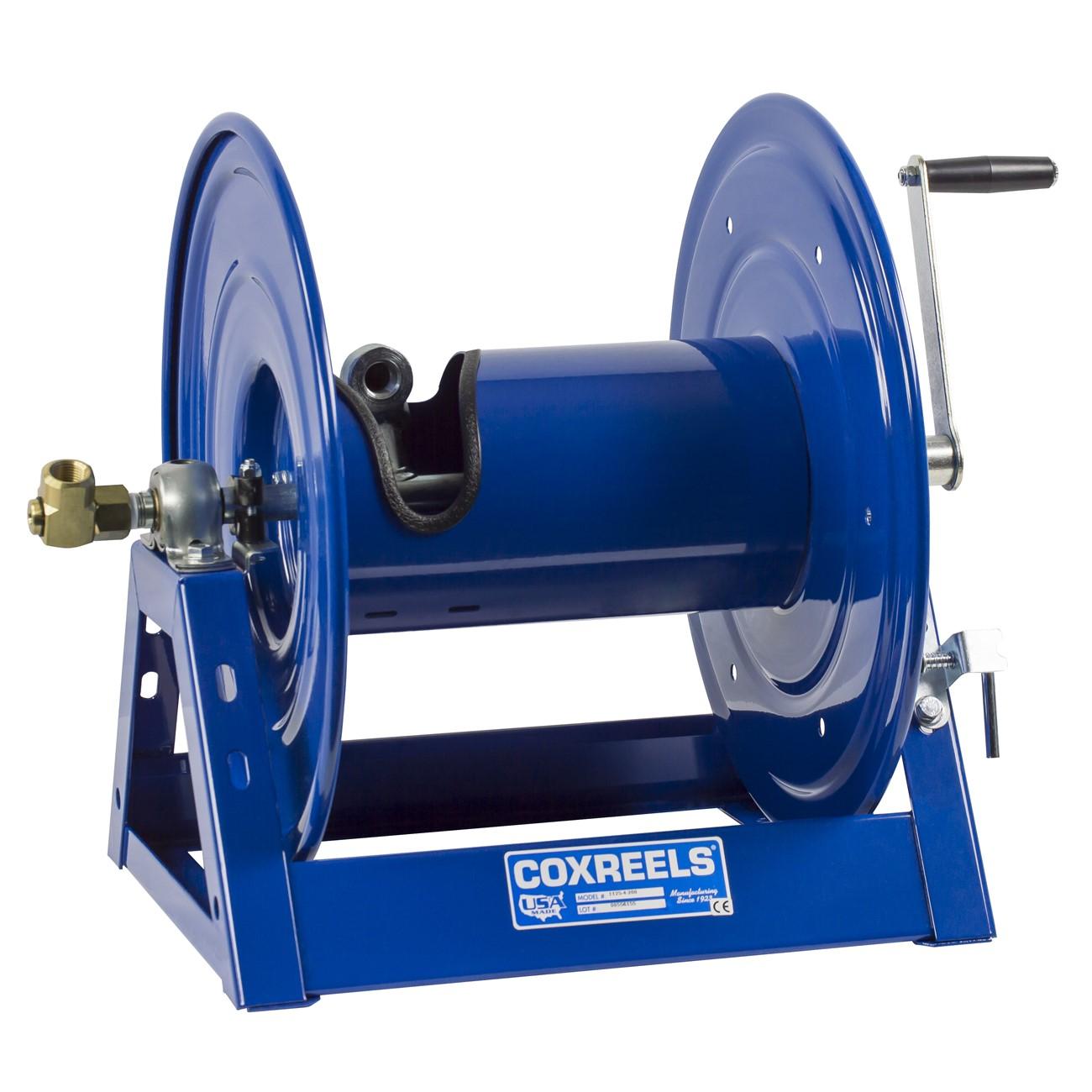

Coxreels 1125-5-50 Hose Reel 3/4 Inch Id 50 Foot

Product Description

The COXREELS 1125-5-50 is a hand crank hose reel from the 1125 Series, built for trade and industrial professionals who need reliable, repeatable hose management in demanding service environments. The reel accepts 3/4 inch ID hose up to 50 feet and features a one-piece all-welded steel A-frame base for rigid, stable mounting. A solid brass 90-degree full-flow NPT swivel simplifies seal maintenance without removing the reel from its mount. CNC robotically spun and ribbed discs with rolled edges protect the hose and the operator through every retraction cycle.

The 1125-5-50 is suited for industrial, commercial, and fleet maintenance applications where durable hose storage and controlled dispensing are required. The open drum slot and low-profile outlet riser deliver a flat, non-crimping hose wrap, extending hose service life. An adjustable tension brake prevents freewheeling during payout, and the direct hand crank provides positive mechanical retraction. Licensed service technicians and maintenance professionals typically install and service this reel in shop bays, service vehicles, and fixed mechanical rooms.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base — not bolted — for superior structural rigidity
• Solid brass 90-degree full-flow NPT swivel machined from solid stock for easy seal maintenance without dismounting the reel
• CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design for flat, non-crimping hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended field durability
• Adjustable tension brake prevents freewheeling; direct hand crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct installation unit compatible with 3/4 inch ID hose assemblies in industrial and commercial hose reel applications.

Installation Notes

Installation is typically performed by qualified maintenance technicians or journeyman mechanics. Power down or depressurize any connected fluid system before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern in the steel base. Verify that all swivel connections are properly torqued to the fitting manufacturer specifications and that hose end fittings are rated for the intended working pressure before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Capacity: 50 feet
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 38 pounds
• UPC: 674255822269

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-50
