Coxreels 1125-5-50-A Hose Reel 3/4 in Id 50 Ft

Product Description

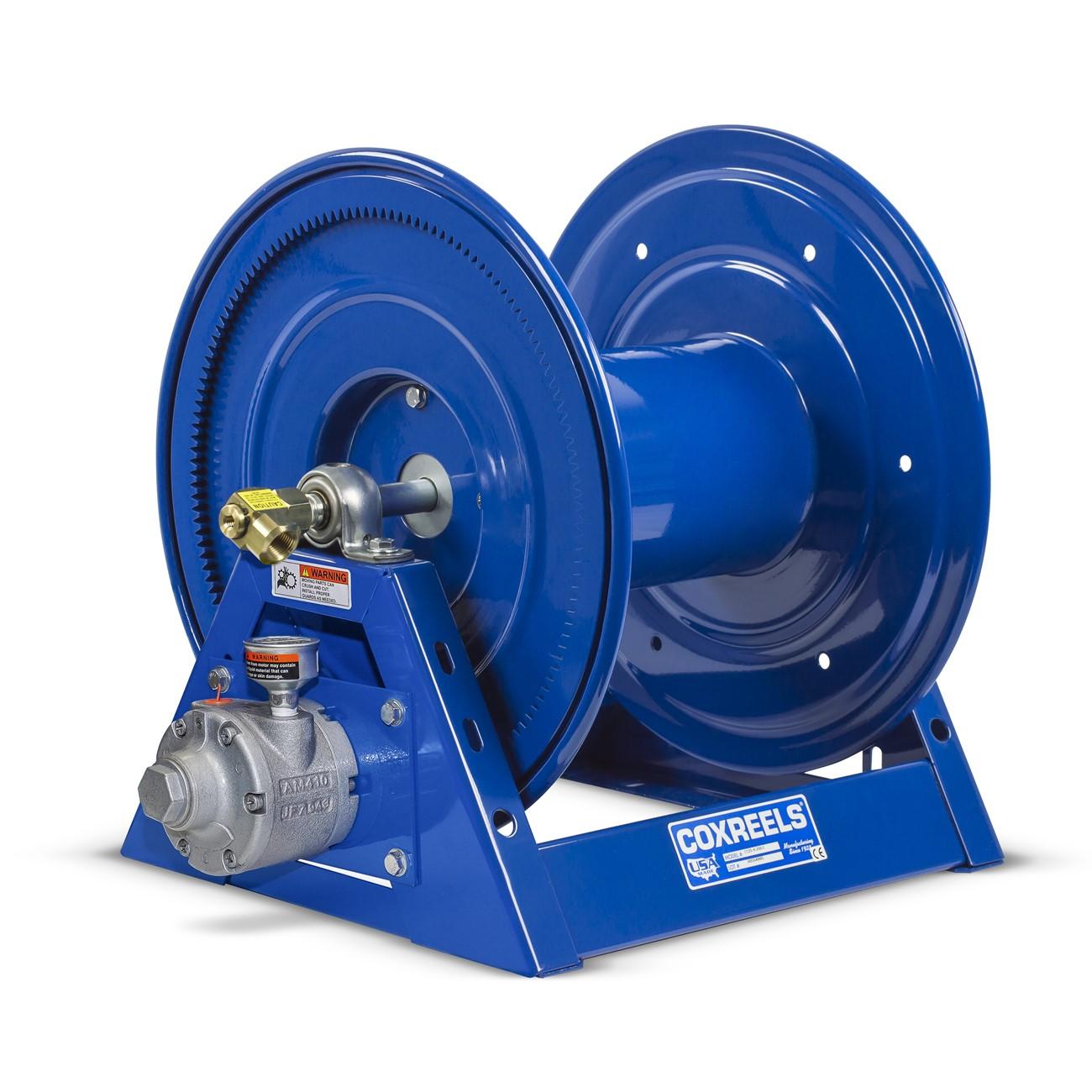

The COXREELS 1125-5-50-A is a heavy-duty industrial hose reel from the 1125 Series, designed for demanding trade and industrial applications where reliable hose management and long service life are required. It accommodates hose with a 3/4 inch ID and 1-1/4 inch OD, with a 50 ft hose capacity. The reel features an all-welded A-frame steel base, a low-profile outlet riser, and an open drum slot design that produces a flat, non-crimping hose wrap. It is available in both hand crank and motorized configurations and is installed by maintenance technicians, industrial service crews, and trade professionals across a wide range of facilities.

The 1125-5-50-A suits industrial, commercial, and heavy-duty service environments where consistent hose deployment and retraction are essential. Typical applications include fluid transfer, compressed air service, and general industrial hose management at fixed service stations, vehicle bays, and plant floor locations. The reel is engineered for permanent or semi-permanent mounting and is suited for settings that require a robust, corrosion-resistant reel with smooth rotation under frequent use.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity — no bolted joints
• Low-profile outlet riser and open drum slot design ensures flat, non-crimping hose wrap for extended hose life
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low-maintenance operation
• CPC powder coat finish provides chip resistance and rust inhibition for long-term durability in industrial environments

Compatibility

Designed for use with 3/4 inch ID hose up to 50 ft in length. Part of the COXREELS 1125 Series, compatible with both hand crank and motorized drive configurations including the aluminum body 4-vane air motor option.

Installation Notes

Installation is typically performed by maintenance technicians or qualified trade professionals. Shut off all supply pressure and depressurize the hose and connected lines completely before mounting or servicing the reel. Secure the reel to a structurally sound mounting surface using the pattern located in the steel base. Follow all applicable facility safety codes and manufacturer torque guidance for fasteners and swivel fittings.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Capacity: 50 ft
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255822467

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-50-A
