Coxreels 1125-5-250 Hose Reel 3/4 in Id 250 Ft

Product Description

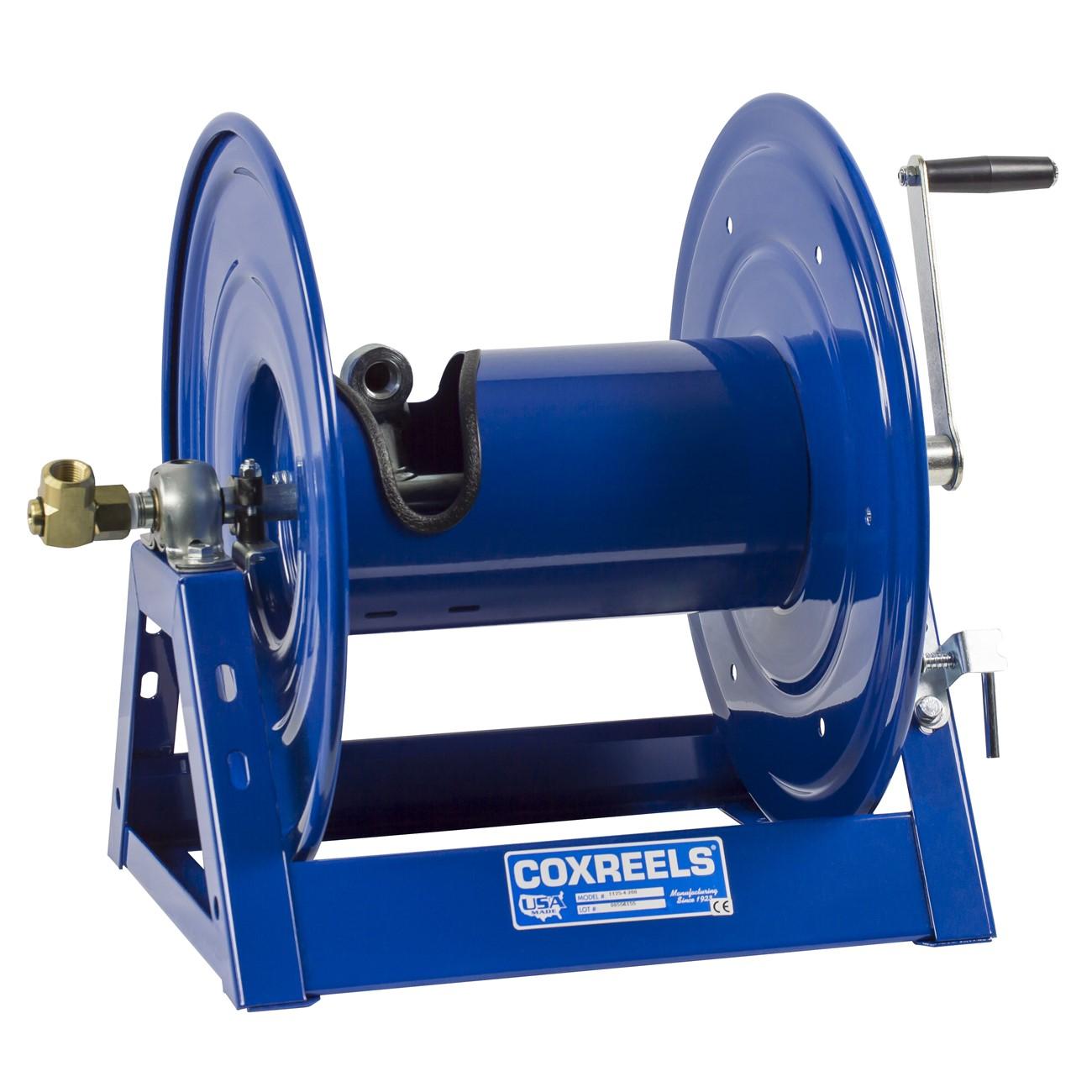

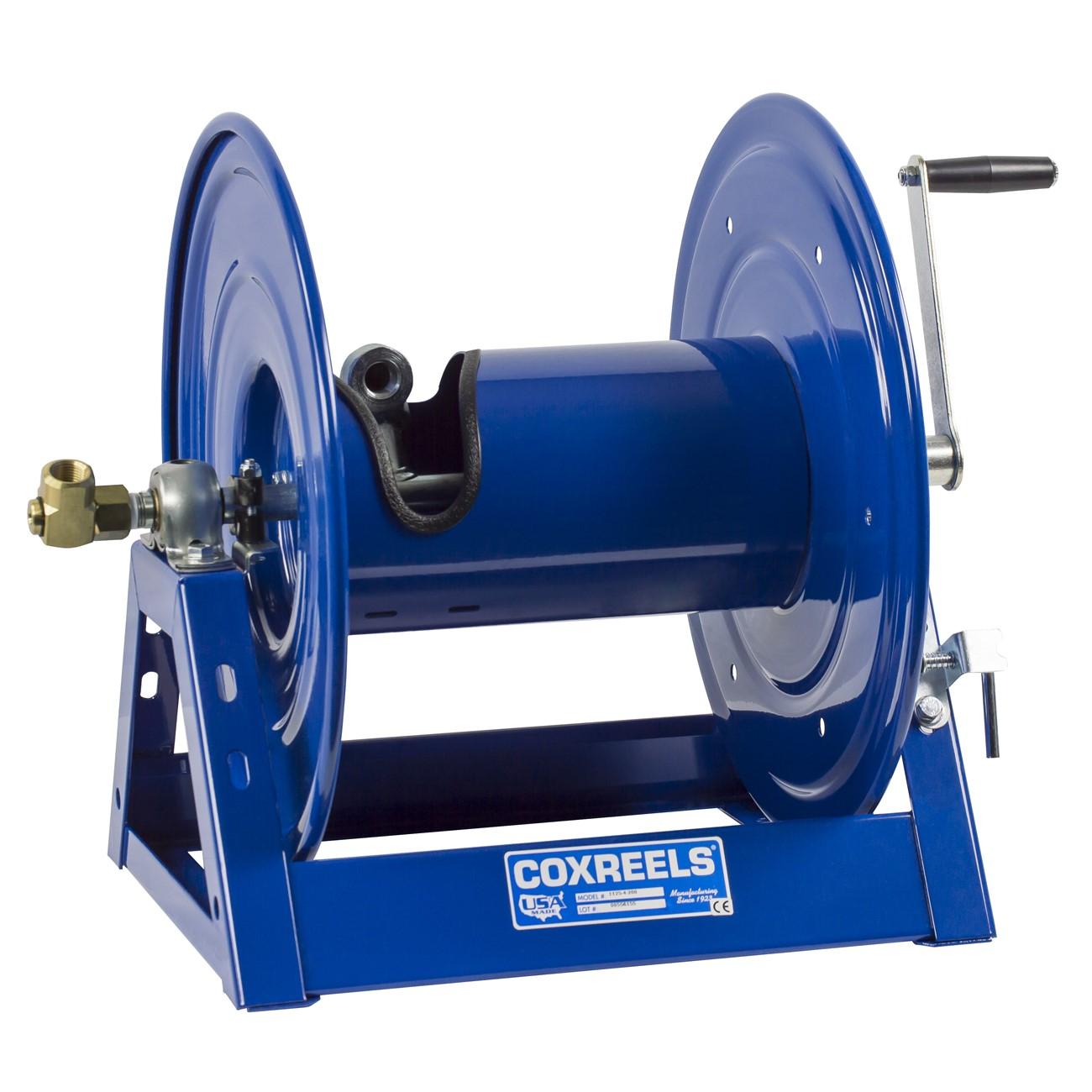

The COXREELS 1125-5-250 is a heavy-duty hand crank hose reel built for demanding industrial and trade applications. Part of the 1125 Series, it accommodates hose with a 3/4 inch inner diameter and 1-1/4 inch outer diameter, with a 250 ft capacity. The reel features an all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs, and a solid brass 90-degree full-flow NPT swivel. At 59 pounds, it is built for permanent or semi-permanent mounting in service bays, maintenance facilities, and industrial environments. Licensed trades and maintenance professionals are the primary installers.

The 1125-5-250 is suited for use in commercial and industrial settings where reliable, high-capacity hose management is required. The open drum slot and low-profile outlet riser deliver a flat, non-crimping hose wrap, making it appropriate for air, water, and other compatible fluid delivery systems. The direct hand crank allows mechanical retraction without motorized assistance, and the adjustable tension brake prevents free-wheeling during deployment. This reel is typically mounted in fixed service locations including garages, fleet maintenance shops, and manufacturing facilities.

Key Features

• All-welded one-piece 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid brass machined 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, smooth wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended field life

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for industrial and commercial fluid delivery systems requiring a 3/4 inch ID hose connection with up to 250 ft of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Shut off and depressurize the supply line before connecting or disconnecting the swivel fitting. The mounting pattern is located in the steel base; use appropriate fasteners rated for the reel weight and application load. Verify that the hose material and reel specifications are compatible with the fluid type and operating pressure of the system before placing in service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/4 inch
• Hose Capacity: 250 ft
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Retraction Method: Direct hand crank with adjustable tension brake
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 59 pounds
• UPC: 674255822313

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-250
