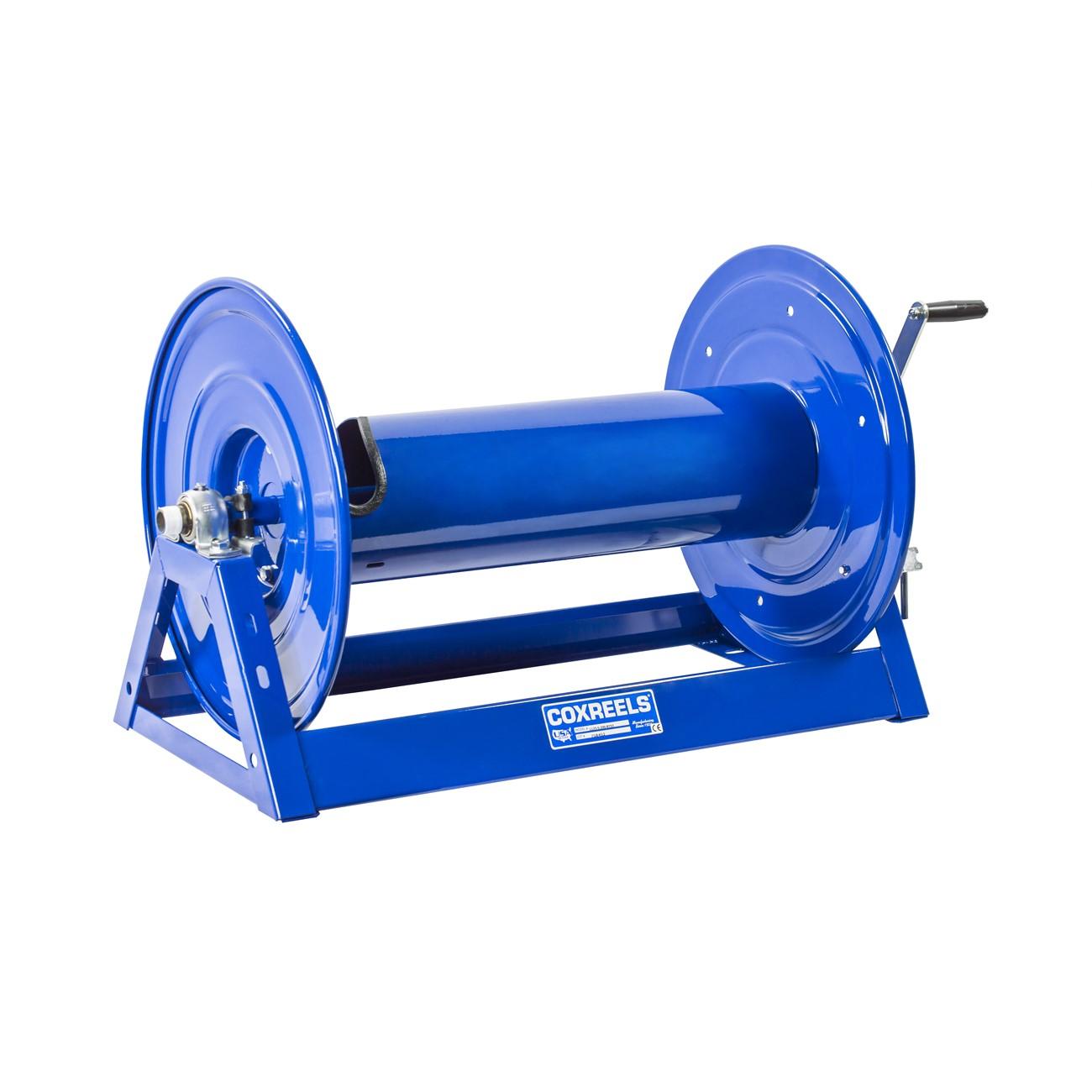

Coxreels 1125-5-250-BYXX Storage Hose Reel Hand Crank

Product Description

The COXREELS 1125-5-250-BYXX is a heavy-duty steel storage hose reel designed for stationary or mobile use in demanding industrial and trade environments. It features a direct hand crank for manual retraction and is built without a swivel or riser, making it purpose-built for storing and managing long lengths of material. The one-piece all-welded A-frame base is constructed from 1/4-inch steel and provides a rigid, stable platform. CNC robotically spun and ribbed discs with rolled edges add structural strength and protect both the stored material and the operator. This reel is suited for HVAC technicians, plumbers, electricians, and general contractors who need a reliable, high-capacity storage solution on the job site or in a service vehicle.

The 1125-5-250-BYXX is designed to store and maintain long lengths of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, chain, and similar materials. It is well suited for both stationary shop installations and mobile service unit mounting. The integrated mounting pattern in the steel base allows for straightforward installation and removal. An adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage.

Key Features

• No swivel and no riser design — dedicated storage configuration for long-length materials including hose, cord, cable, wire, rope, tape, and chain
• CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• One-piece all-welded 1/4-inch steel A-frame base — not bolted — for superior structural integrity
• Adjustable tension brake prevents free-wheeling during operation, transport, and storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style storage reel for stationary and mobile applications handling hose, cord, cable, wire, rope, tape, and chain in industrial and trade service environments.

Installation Notes

Installation is performed by trade professionals using standard hand tools. Power down or de-energize any connected lines before attaching or detaching stored materials. Secure the reel to a stable surface using the mounting pattern in the steel base, following applicable load and fastener requirements for the mounting substrate. Do not exceed the reel capacity for the material being stored.

Technical Specifications

• Frame Material: Steel
• Frame Construction: One-piece all-welded CNC robotically welded A-frame, 1/4-inch steel
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Drive Type: Direct hand crank
• Brake Type: Adjustable tension brake
• Bearings: Permanently lubricated self-aligning pillow block bearings
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 59 pounds
• UPC: 674255848214

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-250-BYXX
