Coxreels 1125-5-250-A Hose Reel 3/4 Inch Id 250 Ft

Product Description

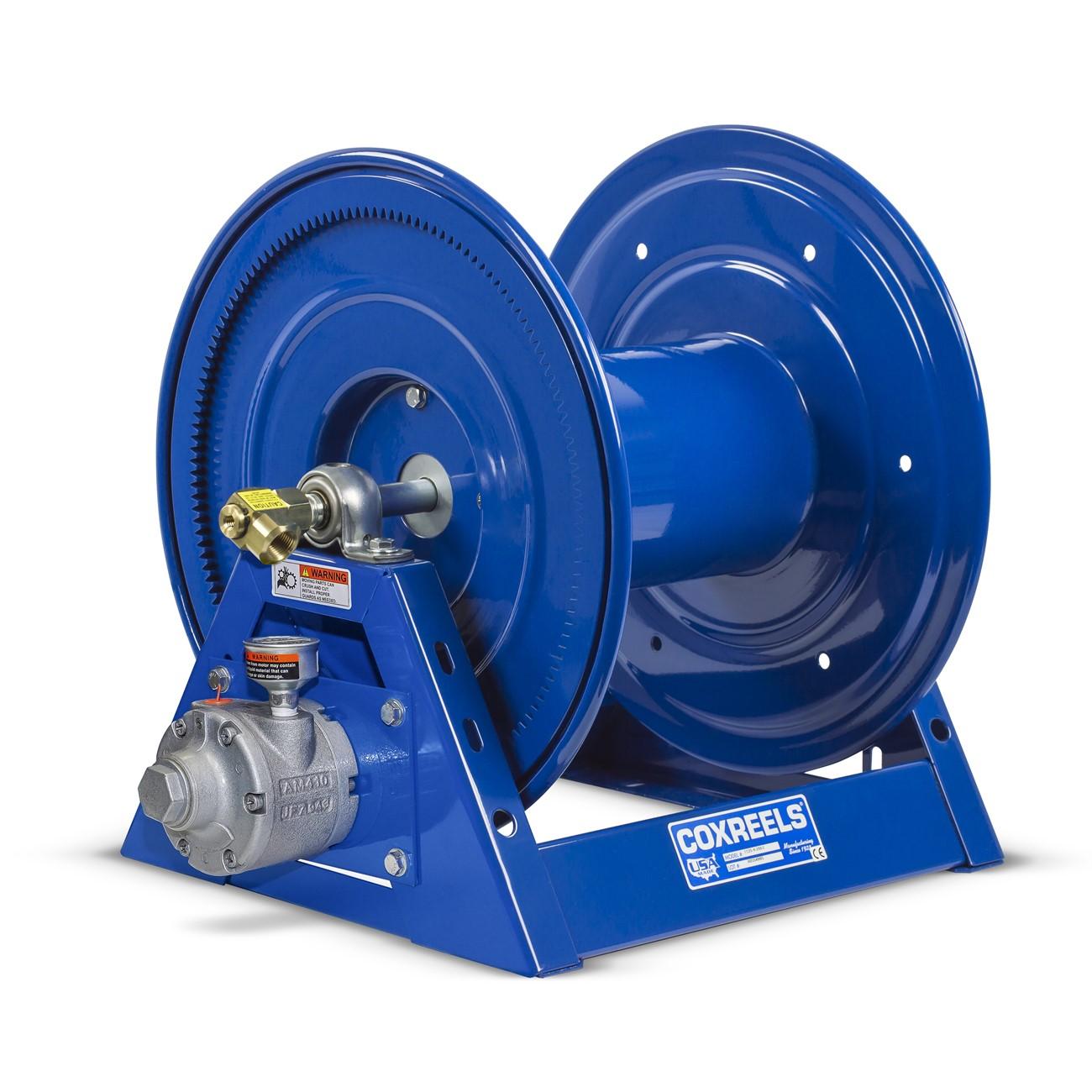

The COXREELS 1125-5-250-A is a heavy-duty hose reel from the 1125 Series, built for hand crank and motorized operation in demanding industrial and commercial environments. It accepts hose with a 3/4 inch inner diameter and 1-1/4 inch outer diameter, with a 250-foot length capacity. The reel is constructed around a one-piece, all-welded 12-gauge steel A-frame base for rigid structure without bolted joints. A low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap. Licensed HVAC technicians, plumbers, and industrial maintenance professionals rely on this unit for high-cycle, high-volume hose deployment.

The 1125-5-250-A is suited for industrial plants, commercial facilities, and fleet service applications where large-volume hose management is required. The motorized-capable design accommodates installations where manual retrieval of 250 feet of hose is impractical. The A-frame base includes a built-in mounting pattern for secure installation to fixed surfaces, vehicle beds, or shop floors. This reel is appropriate for air, water, and compatible fluid service lines in professional trade environments.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity without bolted connections
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design ensures non-crimping, flat smooth hose wrap across the full 250-foot capacity
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping, rust, and corrosion for extended service in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125 Series, compatible with 3/4 inch ID hose assemblies in hand crank and motorized configurations.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with hose reel mounting requirements and applicable plumbing or pneumatic system codes. Shut off and depressurize the supply line completely before connecting or disconnecting hose fittings. Secure the A-frame base to a structurally adequate mounting surface using fasteners rated for the combined weight of the reel and a fully loaded 250-foot hose. Verify NPT swivel thread compatibility with existing supply fittings before final connection.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/4 inch
• Hose Capacity: 250 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Weight: 67 pounds
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Unit of Measure: Each
• UPC: 674255822450

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-250-A
