Coxreels 1125-5-200-SP Ss Hand Crank Hose Reel 3/4in 200ft

Product Description

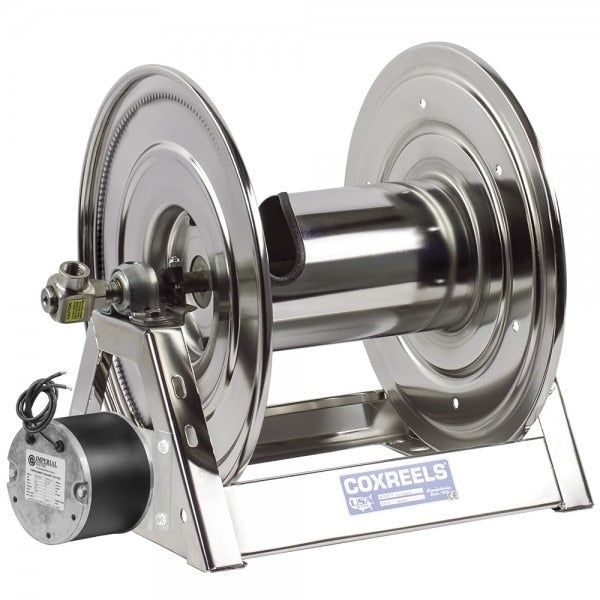

The COXREELS 1125-5-200-SP is a heavy-duty stainless steel hand crank hose reel built for demanding fluid-handling environments where corrosion, contamination, and moisture are constant concerns. The reel features an electro-polished stainless steel construction throughout, including a full stainless steel fluid path, machined 90-degree full-flow NPT swivel inlet, and a low-profile outlet riser with an open drum slot design that promotes a flat, non-crimping hose wrap. CNC robotically spun and ribbed discs with rolled edges add structural strength while protecting the hose and the operator. The unit weighs 55 pounds and is sold individually.

This reel is intended for applications where rust, corrosion, and chemical contamination cannot be tolerated. Typical deployment environments include food and beverage processing facilities, chemical processing plants, marinas, and washdown stations. The adjustable tension brake prevents free-wheeling during hose retraction, making it suitable for overhead, wall, or floor mounting in professional service environments. The all-welded one-piece stainless steel A-frame base includes a bolt-pattern footprint for straightforward installation and removal by maintenance and facility technicians.

Key Features

• Electro-polished stainless steel construction with fully stainless fluid path for non-corrosive performance
• Machined 90-degree full-flow NPT swivel inlet for leak-free, high-flow connections
• CNC robotically spun and ribbed stainless steel discs with rolled edges for hose protection and operator safety
• Exclusive low-profile stainless steel outlet riser with open drum slot for flat, non-crimping hose wrap
• One-piece all-CNC-welded 1/4 inch stainless steel A-frame base with integrated mounting pattern
• Permanently lubricated, self-aligning pillow block bearings with adjustable tension brake for controlled operation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125-SS Series, accommodating 3/4 inch ID hose up to 200 feet in length.

Installation Notes

Installation is typically performed by industrial maintenance technicians or plumbing professionals. Before mounting, confirm the mounting surface can support the reel weight plus the weight of the filled hose. Depressurize and drain the fluid line completely before connecting or disconnecting the swivel inlet. Follow applicable plumbing and facility codes for fluid type, pressure rating, and connection method.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1-1/4 inches
• Hose Length Capacity: 200 feet
• Frame Material: Stainless Steel, 1/4 inch wall, CNC-welded A-frame
• Disc Construction: CNC robotically spun and ribbed stainless steel with rolled edges
• Swivel Inlet: Machined stainless steel 90-degree full-flow NPT
• Drive Type: Direct hand crank
• Bearings: Permanently lubricated, self-aligning pillow block
• Finish: Electro-polished stainless steel (standard unpolished as-manufactured also available)
• Weight: 55 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200-SP
