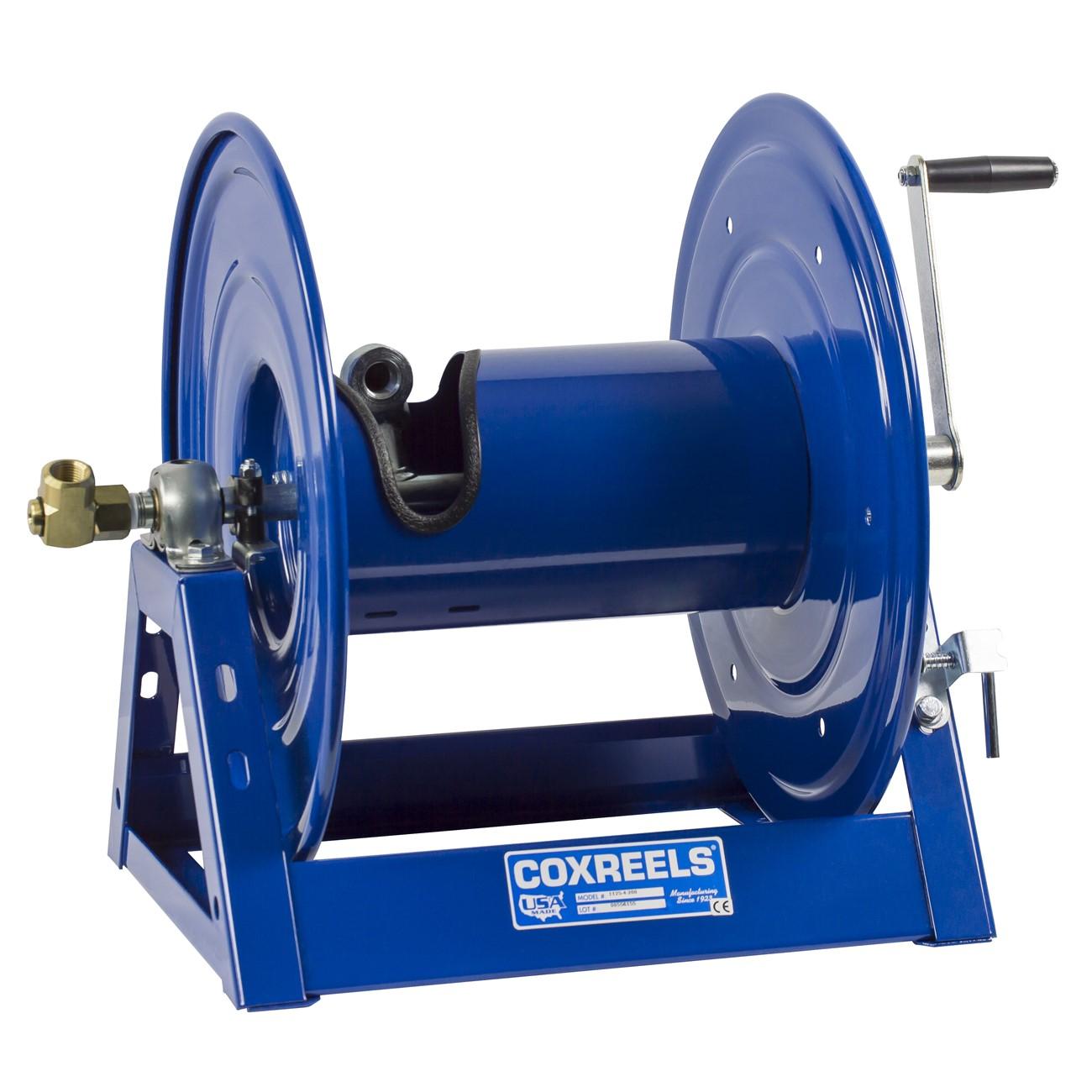

Coxreels 1125-5-200 Hose Reel 3/4 Inch Id 200 Ft

Product Description

The COXREELS 1125-5-200 is a heavy-duty hose reel from the 1125 Series, designed for industrial and trade applications requiring reliable hose management over extended lengths. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel accepts 3/4-inch ID hose up to 200 feet in length and features direct hand crank retraction. The open drum slot and low-profile outlet riser prevent hose crimping and promote a flat, smooth wrap every time. A CPC powder coat finish resists chips and rust for long service life in demanding environments. Licensed HVAC techs, plumbers, and industrial service professionals are the primary installers and users.

The 1125-5-200 suits a wide range of stationary and mobile service setups where consistent hose deployment and retrieval are critical. Typical applications include shop air lines, water service, chemical transfer, and similar fluid-handling tasks in commercial or industrial settings. The reel mounts via a pattern integrated directly into the steel base, making installation and removal straightforward without specialized fixtures. Its 55-pound construction reflects the robust, all-welded frame intended for high-cycle professional use rather than light-duty or occasional service.

Key Features

• One-piece all-CNC-robotically-welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Low-profile outlet riser and open drum slot design deliver a non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation
• Adjustable tension brake prevents free-wheeling; CPC chip-resistant, rust-inhibiting powder coat finish for lasting durability

Compatibility

Designed to accept 3/4-inch ID hose up to 200 feet in length; compatible with standard NPT hose fittings. Verify hose OD does not exceed 1-1/4 inches to ensure proper drum fitment.

Installation Notes

Installation is typically performed by qualified plumbers, HVAC technicians, or industrial maintenance professionals. Before servicing or mounting, shut off and depressurize the supply line completely. Secure the reel to a structurally sound surface using the mounting pattern in the base, and verify all NPT connections are properly sealed before returning the system to service. Follow applicable local codes and the manufacturer instructions for load-bearing and pressure ratings.

Technical Specifications

• Hose ID: 3/4 inches
• Maximum Hose OD: 1-1/4 inches
• Hose Capacity: 200 ft
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Retraction Method: Direct hand crank
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 55 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200
