Coxreels 1125-5-200-EB Hose Reel 200 Ft 24V Dc Motor

Product Description

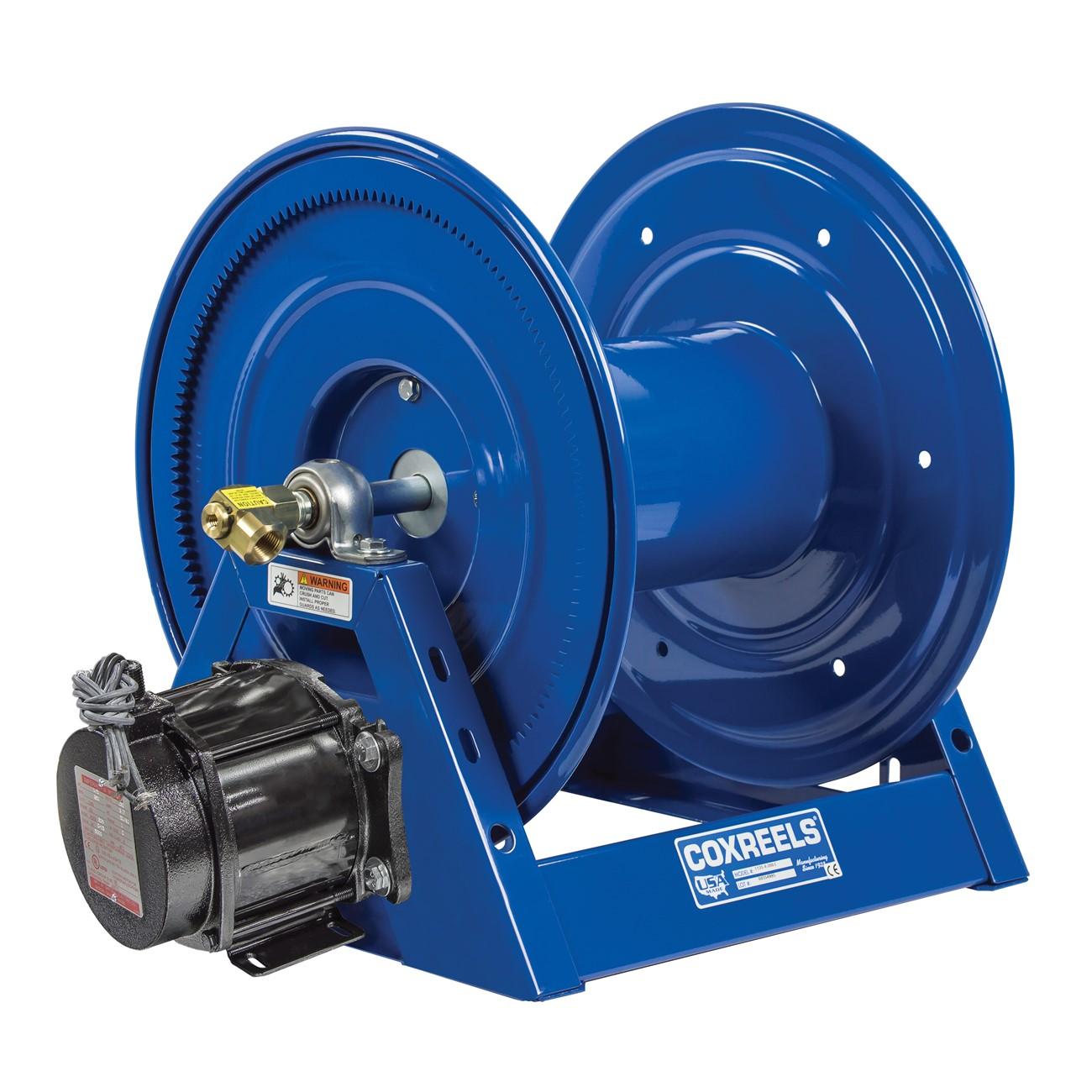

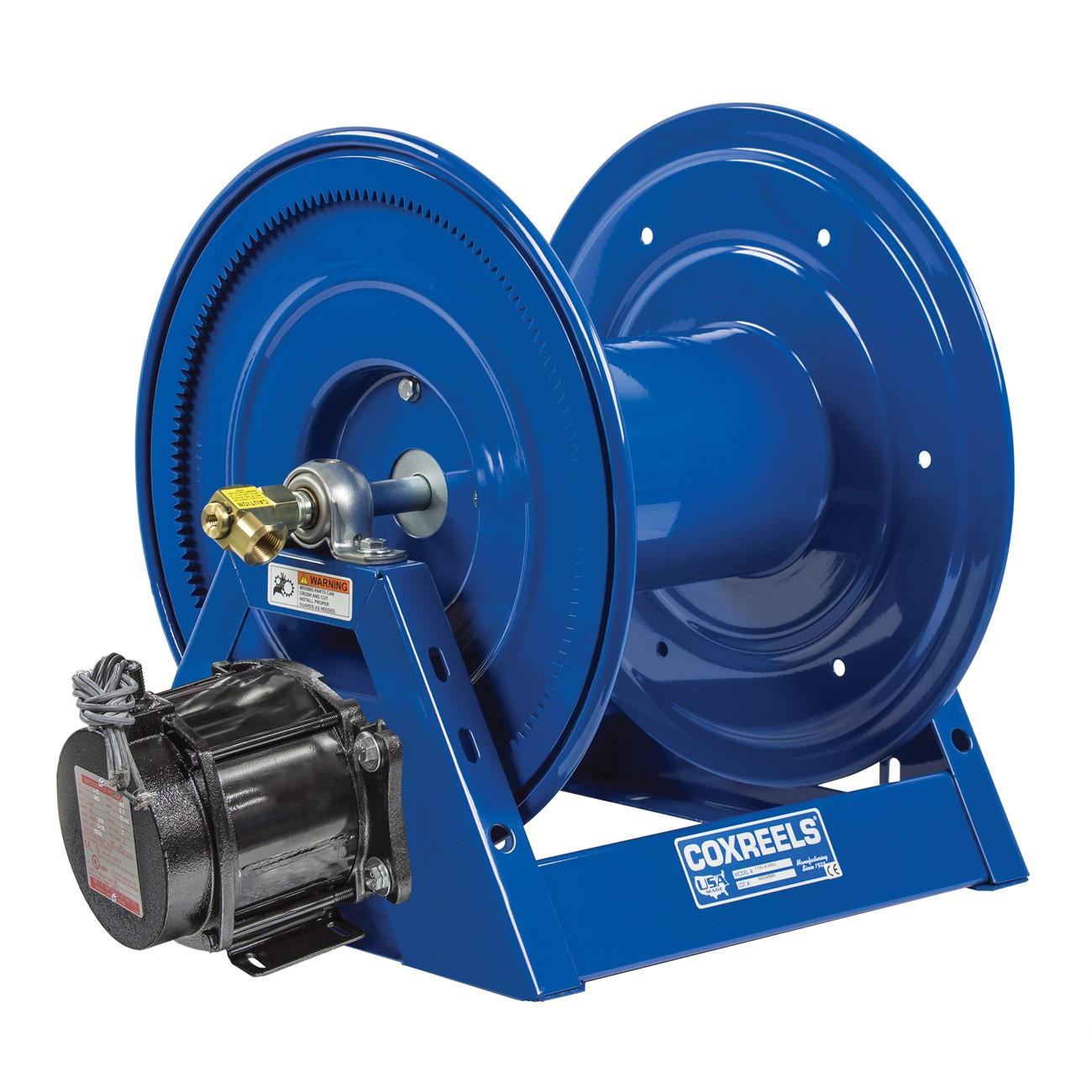

The COXREELS 1125-5-200-EB is a heavy-duty motorized hose reel from the 1125 Series, designed for industrial and commercial fluid-handling applications. It accommodates hose with a 3/4 inch ID and 1-1/4 inch OD up to 200 feet in length. The reel runs on a 24-volt DC, 1/3 HP reversible electric motor for powered retrieval. A one-piece all-welded steel A-frame base provides structural rigidity without bolted joints. The low-profile outlet riser and open drum slot design guides hose onto the drum flat and smooth, eliminating crimps that shorten hose life. Licensed HVAC, plumbing, and industrial service technicians rely on this unit for high-cycle, demanding service environments.

The 1125-5-200-EB suits industrial facilities, service fleets, wash bays, and mechanical rooms where a motorized, high-capacity hose reel is required. The 200-foot hose capacity makes it well suited for large service areas where manual crank retrieval is impractical. The reversible motor allows controlled payout and retract from a single station. The reel is sold as a single unit and is appropriate for professional installation in stationary or vehicle-mounted configurations.

Key Features

• 24-volt DC, 1/3 HP reversible electric motor for powered hose retrieval and payout
• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints — for superior structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Chip-resistant, rust-inhibiting CPC powder coat finish for corrosion protection in demanding environments

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS 1125 Series, compatible with 3/4 inch ID hose up to 200 feet in length with standard NPT fittings.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-handling systems and low-voltage DC electrical wiring. Shut off the fluid supply and disconnect all power to the motor circuit before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the mounting pattern in the steel base. Verify that the 24-volt DC power supply is properly rated and fused before energizing the motor.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Capacity: 200 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 81 pounds
• UPC: 674255837980

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200-EB
