Coxreels 1125-5-200-EA-SP Stainless Steel Hose Reel

Product Description

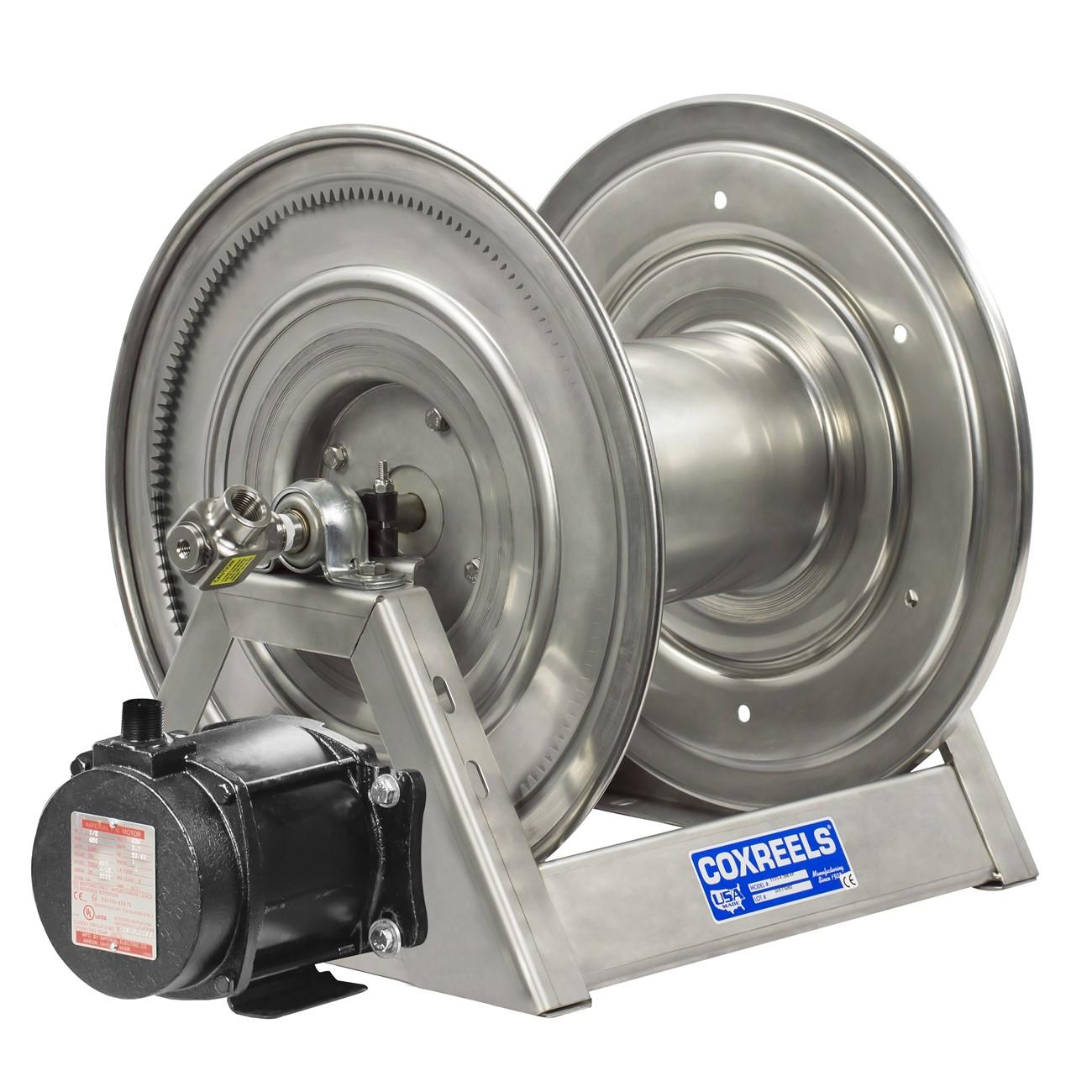

The COXREELS 1125-5-200-EA-SP is a motor-driven stainless steel hose reel from the 1125-SS Series, designed for demanding fluid handling applications where corrosion resistance and cleanliness are non-negotiable. The reel features a 3/4 inch ID hose inlet, a 1-1/4 inch OD drum, and is powered by a 115-volt AC, 1/2 HP reversible AC rectified motor for effortless hose retrieval. The entire fluid path is constructed from electro-polished stainless steel, making it suitable for environments where rust, contamination, or chemical exposure are ongoing concerns. Licensed tradespeople and facility maintenance professionals are the primary installers of this reel.

This hose reel is built for industrial and commercial environments that demand non-corrosive performance. Typical applications include food and beverage processing facilities, chemical handling operations, marinas, and coastal or wash-down environments where standard steel reels would corrode or contaminate the fluid stream. The low-profile outlet riser and open drum slot design allow for a flat, smooth, non-crimping hose wrap, supporting consistent flow delivery across a full range of operating conditions.

Key Features

• Electro-polished stainless steel construction throughout fluid path for corrosion resistance and contamination control
• 115-volt AC, 1/2 HP reversible AC rectified motor for powered hose retrieval
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for strength and operator safety
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base for superior reel structure with integrated mounting pattern
• Adjustable tension brake prevents free-wheeling; permanently lubricated self-aligning pillow block bearings for smooth rotation

Compatibility

Designed as a direct-fit unit within the COXREELS 1125-SS Series; intended for use with 3/4 inch ID hose in corrosive or sanitary fluid handling applications requiring stainless steel construction.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with industrial hose reel mounting and electrical connections. Disconnect and lock out all electrical power before servicing the motor or wiring connections, following applicable NFPA 70 (NEC) requirements for motor branch circuits. Secure the A-frame base to a structurally sound mounting surface using the integrated mounting pattern in the base. Verify hose ID and working pressure ratings are compatible with the intended fluid and system pressure before placing the reel in service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Reversible AC rectified
• Frame Material: 1/4 inch stainless steel, CNC robotically welded
• Disc Material: Stainless steel, CNC robotically spun and ribbed
• Finish: Electro-polished stainless steel (fluid path); standard unpolished as-manufactured (exterior)
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Weight: 81 pounds
• UPC: 674255853164

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200-EA-SP
