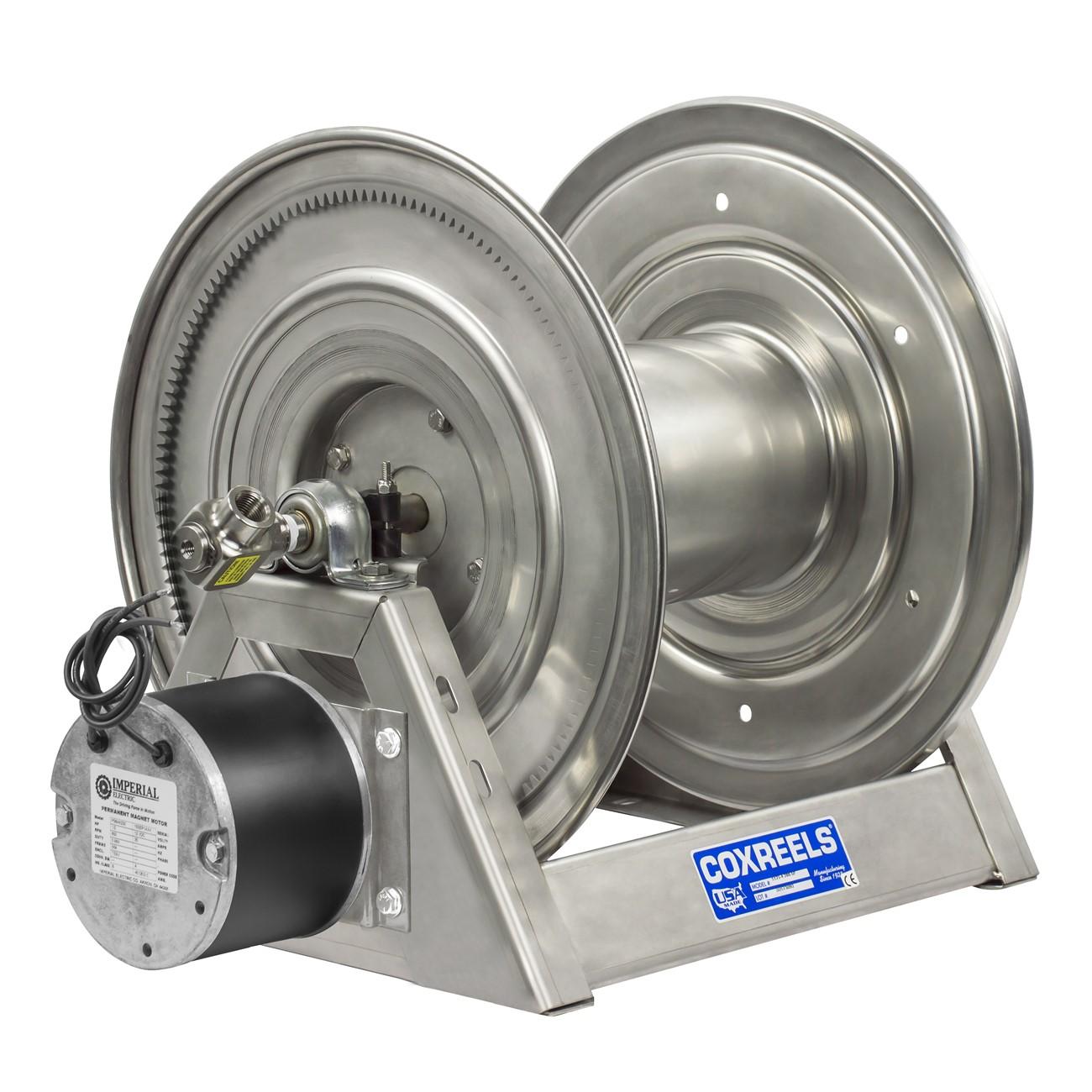

Coxreels 1125-5-200-E-SP Stainless Steel Hose Reel

Product Description

The COXREELS 1125-5-200-E-SP is an electro-polished stainless steel electric hose reel from the 1125-SS Series, designed for demanding environments where corrosion, contamination, and rust are ongoing concerns. It holds 3/4 inch ID hose up to 200 feet in length and is driven by a 12V DC, 1/3 HP reversible motor for powered retrieval. The fully stainless steel fluid path, including the swivel inlet, outlet riser, and drum components, makes this reel suitable for food processing, chemical handling, marina applications, and other service environments where standard steel would fail quickly. Licensed trade professionals in industrial, marine, and food-service facilities are the primary installers.

This hose reel is built for stationary or fixed-mount applications in environments requiring non-corrosive, cleanable equipment. Typical use cases include chemical dispensing stations, washdown systems at food processing facilities, marina fuel or water service, and industrial fluid transfer points where contamination control is critical. The 200-foot hose capacity accommodates large service areas. The adjustable tension brake prevents free-wheeling during hose deployment, keeping operations controlled in busy service environments.

Key Features

• Electro-polished stainless steel construction with fully stainless fluid path for corrosion resistance
• 12V DC, 1/3 HP reversible electric motor for powered hose retrieval
• Machined stainless steel 90-degree full-flow NPT swivel inlet for leak-free rotation
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for strength and hose protection
• Exclusive low-profile stainless steel outlet riser and open drum slot for flat, non-crimping hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for secure installation
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life

Compatibility

Designed for use with 3/4 inch ID hose up to 200 feet in length. Suitable for food processing, chemical processing, marina, and industrial washdown applications requiring non-corrosive stainless steel fluid-handling equipment.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling and low-voltage DC electrical systems. Shut off the fluid supply and disconnect the 12V DC power source before mounting or servicing the reel. The A-frame base includes a fixed mounting pattern — secure to a structurally adequate surface using appropriate fasteners for the installation environment. Verify NPT inlet connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inches
• Hose Capacity: 200 feet
• Motor: 12V DC, 1/3 HP reversible electric
• Frame Construction: 1/4 inch stainless steel, CNC robotically welded one-piece A-frame
• Disc Construction: CNC robotically spun and ribbed stainless steel with rolled edges
• Swivel Inlet: 90-degree full-flow NPT, machined stainless steel
• Finish: Electro-polished stainless steel (standard unpolished as-manufactured also available)
• Weight: 68 pounds
• UPC: 674255852129

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200-E-SP
