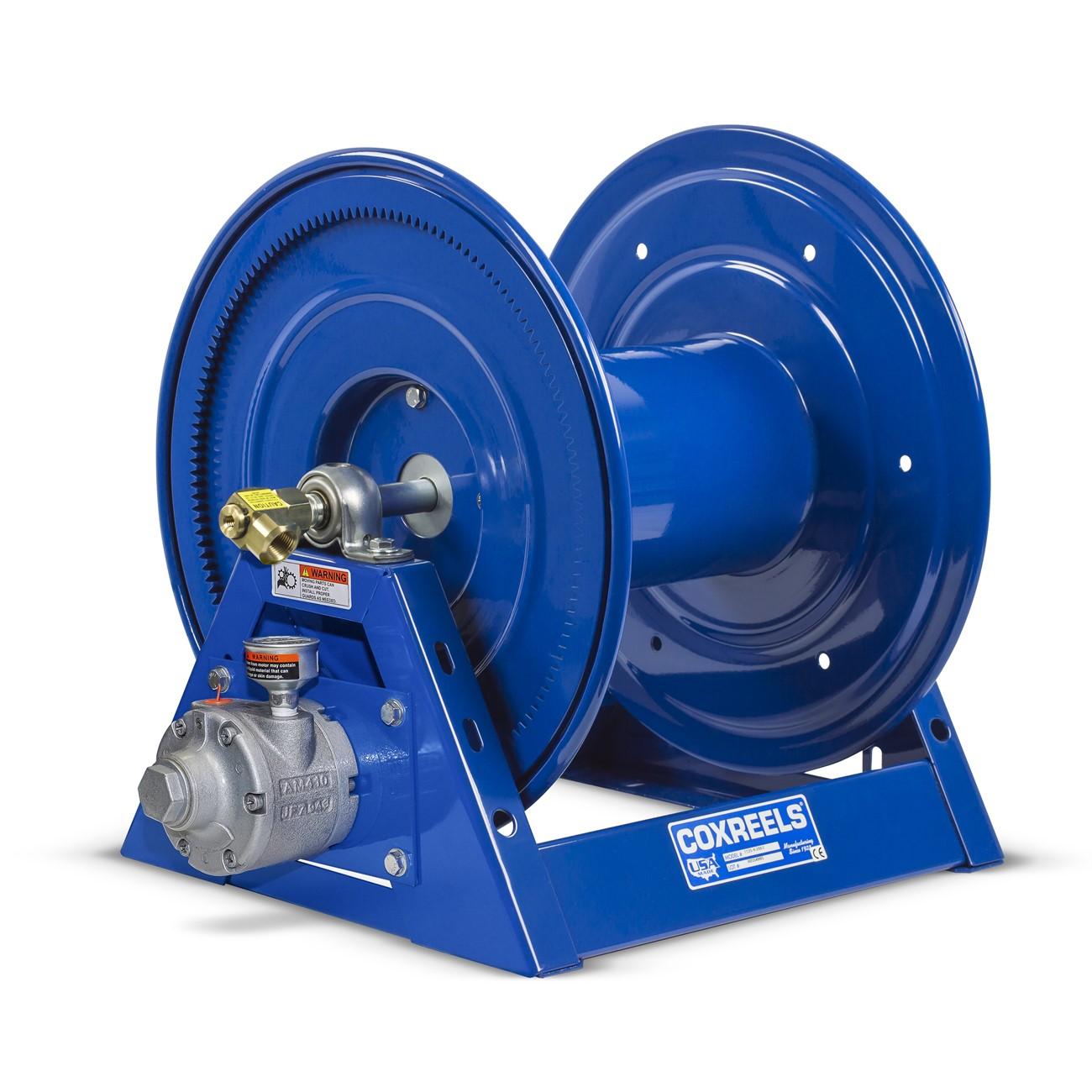

Coxreels 1125-5-200-A Hose Reel 3/4 Inch 200 Ft

Product Description

The COXREELS 1125-5-200-A is a heavy-duty hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates hose with a 3/4 inch ID and 1-1/4 inch OD, with a 200 ft capacity. The reel features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs, and a machined solid brass 90-degree full-flow NPT swivel. Available in hand crank and motorized configurations, this unit is built for service professionals who need reliable, repeatable hose deployment in high-cycle environments. The CPC powder coat finish resists chipping and rust for long service life.

The 1125-5-200-A suits a wide range of industrial and commercial service scenarios, including fluid transfer, air supply, and maintenance operations in facilities, fleet shops, and job sites. Its open drum slot and low-profile outlet riser deliver a non-crimping, flat smooth hose wrap, reducing hose wear over time. The mounting pattern is integrated into the steel base, making installation and removal straightforward. Both hand crank and motorized versions are covered under this series, with the motorized option using a 4-vane aluminum body air motor.

Key Features

• One-piece all-welded 12-gauge steel A-frame base — no bolted joints for superior structural integrity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without removing the reel from its mount
• Low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish — chip resistant and rust inhibiting

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125 Series, suitable for 3/4 inch ID hose lines up to 200 ft in industrial and commercial service applications.

Installation Notes

Installation is typically performed by qualified maintenance technicians or trade professionals. Shut off all fluid or air supply lines and depressurize the system before mounting or connecting the reel. The integrated base mounting pattern allows direct fastening to a wall, floor, or service vehicle surface using appropriate hardware. Verify all NPT swivel connections are properly sealed and torqued per the fitting manufacturer's guidance before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Capacity: 200 ft
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Motor Type: 4-vane aluminum body air motor (motorized configuration)
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 63 pounds
• UPC: 674255822443

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-200-A
