Coxreels 1125-5-175 Hose Reel 3/4 Inch Id 175 Ft

Product Description

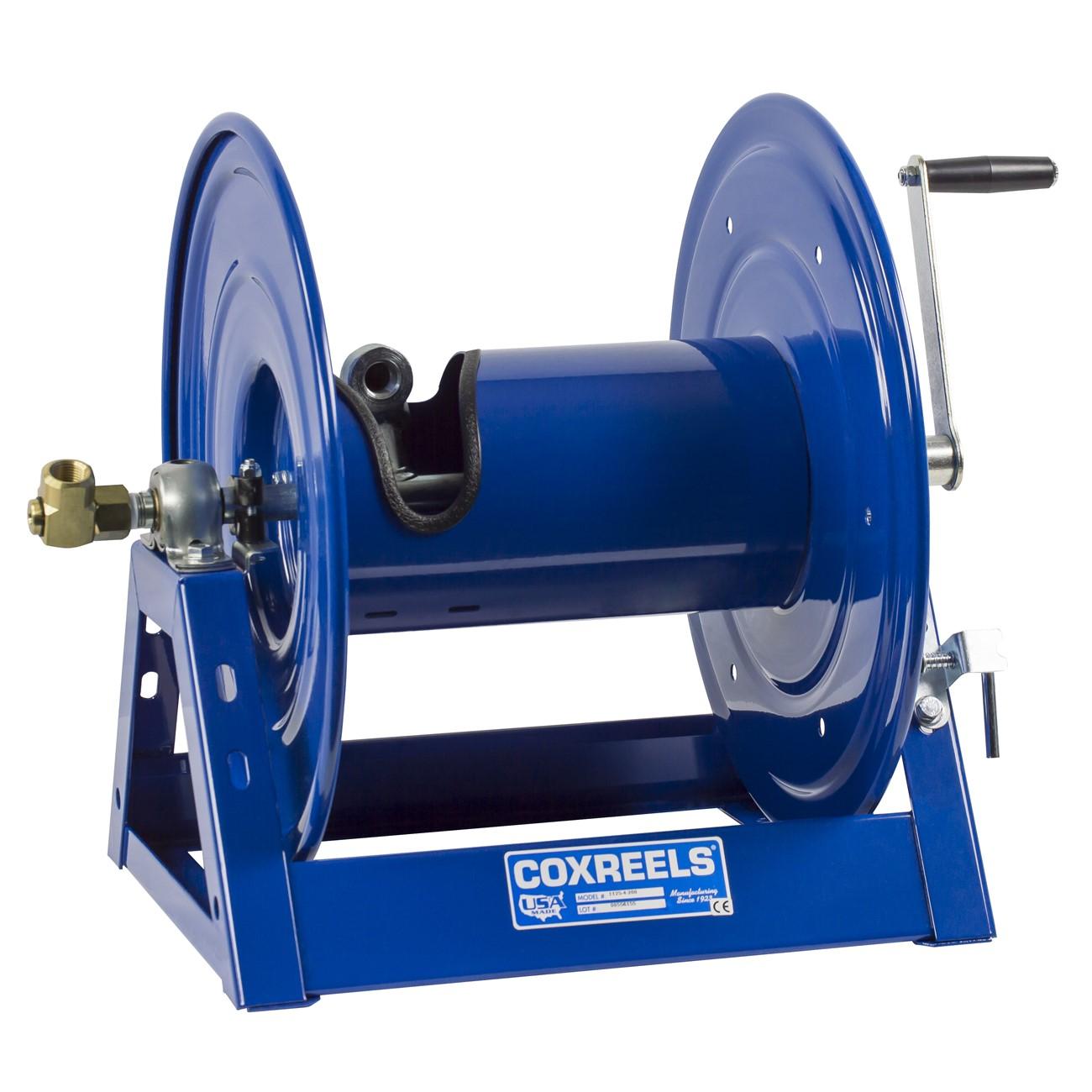

The COXREELS 1125-5-175 is a heavy-duty hand crank hose reel built for demanding industrial and trade applications. Part of the COXREELS 1125 Series, this reel accepts hose with a 3/4 inch inner diameter and 1-1/4 inch outer diameter, with a capacity of 175 feet. The unit weighs 50 pounds and ships as a single assembly. The one-piece all-welded steel frame, CNC-spun ribbed discs, and permanently lubricated pillow block bearings deliver the structural integrity and smooth operation expected on a professional job site. A CPC powder coat finish provides chip resistance and rust inhibition for long service life.

The 1125-5-175 is suited for industrial facilities, fleet maintenance shops, construction sites, and commercial service operations where reliable hose management is required. The open drum slot and low-profile outlet riser design promotes a flat, non-crimping hose wrap, reducing wear on hose during repeated retraction cycles. The direct hand crank allows mechanical retraction without power, making this reel practical in locations where electrical service is unavailable or inconvenient.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity — no bolted joints
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and reduced maintenance
• Low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chips and rust

Compatibility

Designed for use with 3/4 inch inner diameter hose up to 175 feet in length within the COXREELS 1125 Series mounting footprint.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial plumber. Shut off all fluid supply and relieve line pressure before connecting or disconnecting hose fittings. Use appropriate NPT thread sealant on all threaded connections per manufacturer and applicable plumbing code requirements. Secure the reel to a structurally sound mounting surface using the integrated base mounting pattern before placing the unit into service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/4 inch
• Hose Capacity: 175 feet
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 50 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-175
