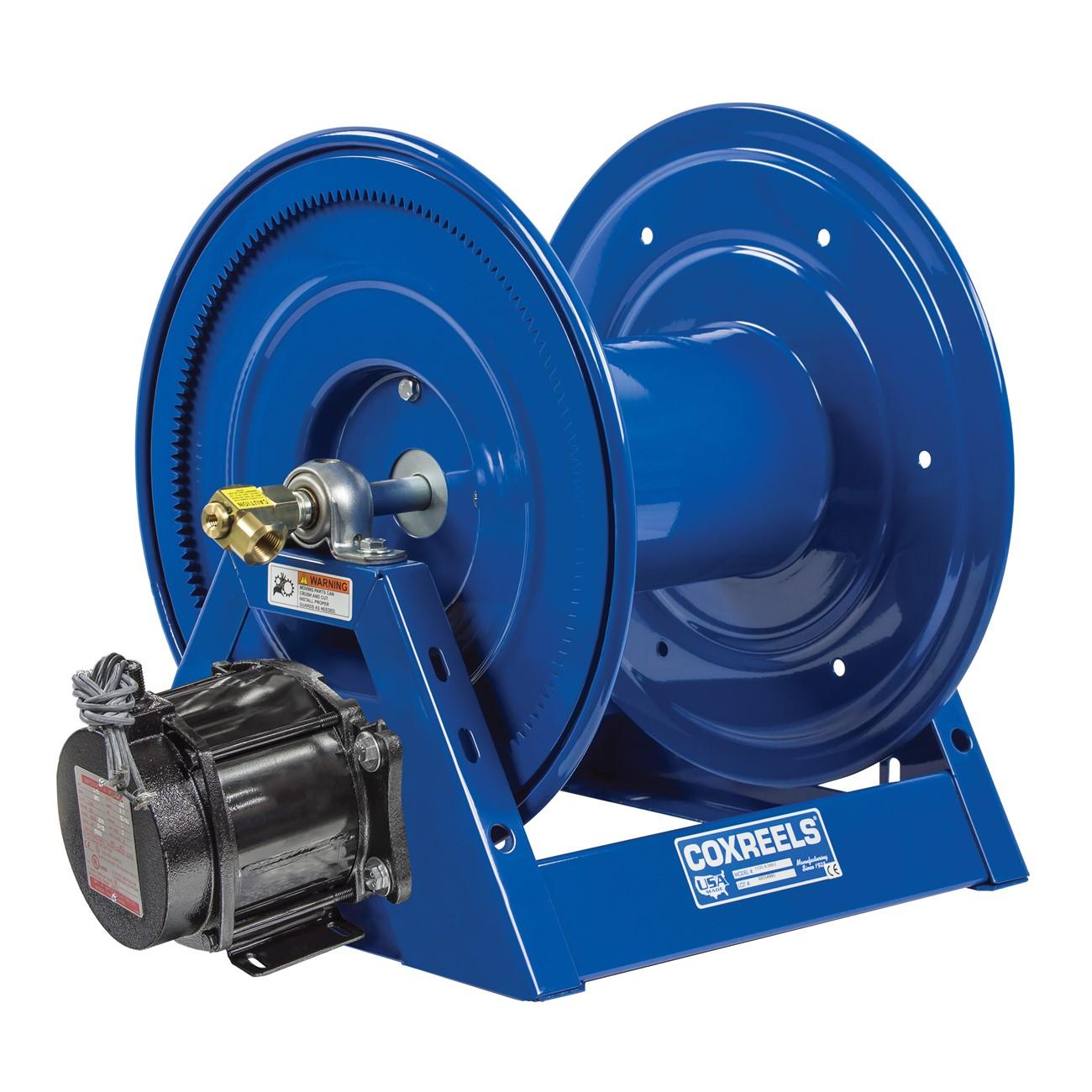

Coxreels 1125-5-175-EA Hose Reel 3/4 Inch Id 175 Ft

Product Description

The COXREELS 1125-5-175-EA is a heavy-duty hose reel from the 1125 Series, designed for industrial and trade applications that demand reliable, high-cycle performance. It accommodates 3/4 inch inner diameter hose up to 175 feet in length and features both hand crank and motorized operation via a 115-volt AC, 1/2 HP reversible AC rectified motor. The welded steel A-frame base, permanently lubricated pillow block bearings, and CPC powder coat finish make this a durable long-term installation for demanding work environments. Licensed tradespeople and service technicians across HVAC, plumbing, and industrial maintenance specify this reel for fixed mounting in service bays, equipment rooms, and job-site stations.

The 1125-5-175-EA suits commercial and industrial settings where high-volume hose management is required daily. Its open drum slot design and low-profile outlet riser deliver a flat, non-crimping hose wrap that extends hose service life. The reel ships as a single unit and is suited for wall, floor, or ceiling mounting using the integrated mounting pattern in the steel base. Facilities maintenance teams, plumbing contractors, and industrial service operations are the primary installers of this product.

Key Features

• Accommodates 3/4 inch ID hose up to 175 feet in length
• 115-volt AC, 1/2 HP reversible AC rectified motor for powered retrieval
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and extended service life
• Long-lasting CPC powder coat finish — chip resistant and rust inhibiting

Compatibility

Designed as an OEM-style fixed hose reel for industrial and commercial service installations requiring 3/4 inch ID hose management at lengths up to 175 feet.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with hose reel mounting and low-voltage motor wiring. Shut off power to any connected electrical circuit before wiring the 115-volt motor, and follow applicable NEC requirements for the installation environment. Verify that the mounting surface — wall, ceiling, or floor — is rated for the static and dynamic load of the reel, hose, and fluid weight. Do not operate the motorized function without confirming all hose connections and swivel fittings are secure.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/4 inches
• Hose Capacity: 175 feet
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 76 pounds
• UPC: 674255822580

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-175-EA
