Coxreels 1125-5-175-A Hose Reel 3/4 Inch Id 175 Ft

Product Description

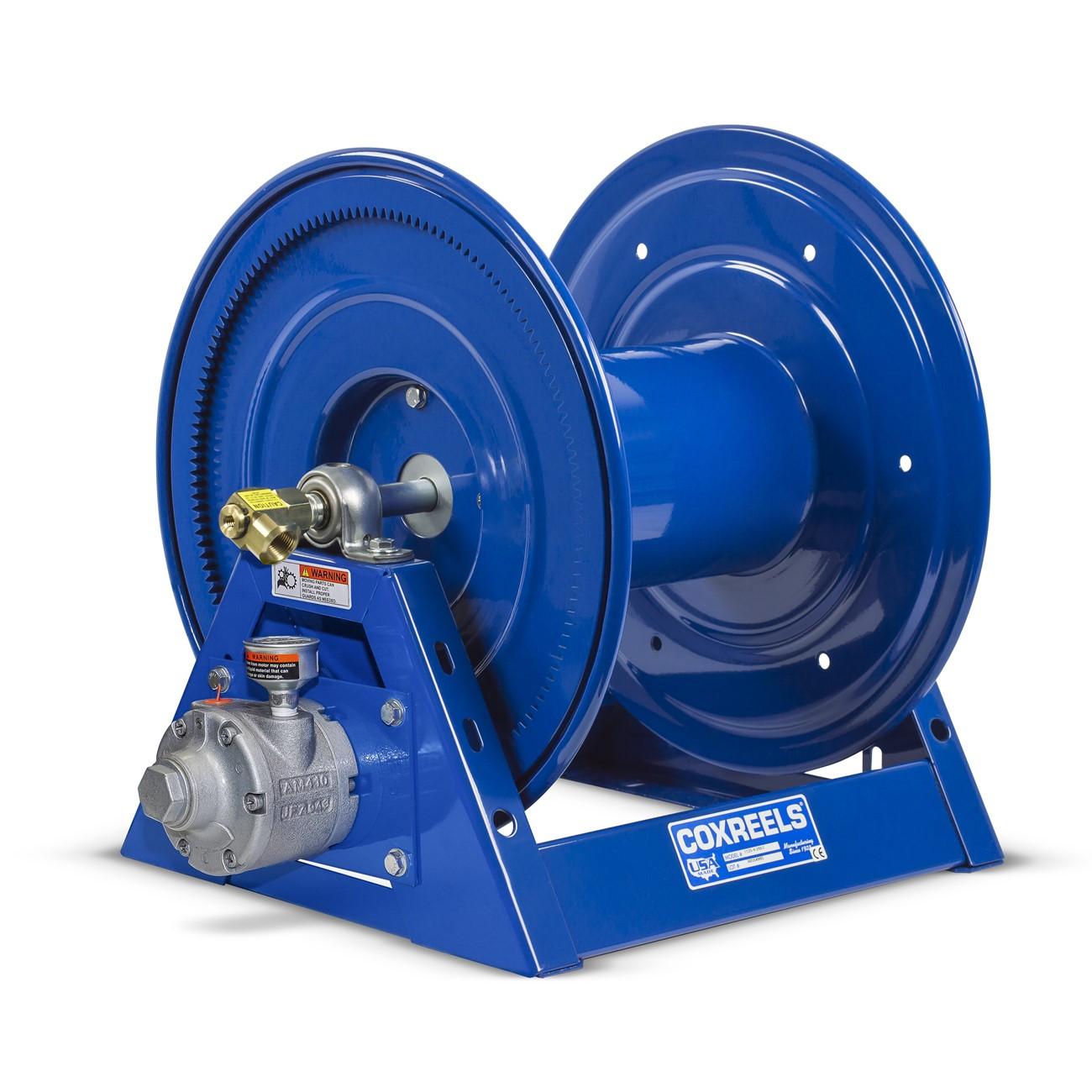

The COXREELS 1125-5-175-A is a heavy-duty hose reel from the 1125 Series, engineered for demanding industrial and commercial service environments. Built on a one-piece, all-welded 12-gauge steel A-frame base, this reel accepts 3/4 inch ID hose up to 175 feet in length. The low-profile outlet riser and open drum slot design ensure a flat, smooth, non-crimping hose wrap. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. Licensed HVAC technicians, plumbers, industrial maintenance crews, and fleet service technicians are the primary installers of this product.

The 1125-5-175-A is suited for industrial facilities, fleet maintenance shops, manufacturing plants, and commercial service bays where high-capacity hose management is required. The reel accommodates both hand crank and motorized operation, making it adaptable to a wide range of workflow demands. The CPC powder coat finish provides chip resistance and rust inhibition for long service life in harsh environments. CNC robotically spun and ribbed discs with rolled edges protect both the hose and the operator across repeated daily use cycles.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Machined solid brass 90-degree full-flow NPT swivel allows in-place seal maintenance and hose replacement
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrap
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation
• CPC powder coat finish resists chipping and rust in demanding service conditions

Compatibility

Designed for use with 3/4 inch ID hose up to 175 feet in length. Suitable for industrial hose reel applications requiring hand crank or motorized retraction in commercial and industrial service environments.

Installation Notes

Installation is typically performed by qualified industrial maintenance technicians or licensed trade professionals. Depressurize and drain all hose and supply lines completely before mounting or servicing the reel. The mounting pattern is located in the steel base to allow straightforward installation and detachment from fixed surfaces. Follow all applicable facility safety codes and manufacturer mounting guidelines when securing the reel to walls, ceilings, or floor stands.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Capacity: 175 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 58 pounds
• UPC: 674255822436

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-175-A
