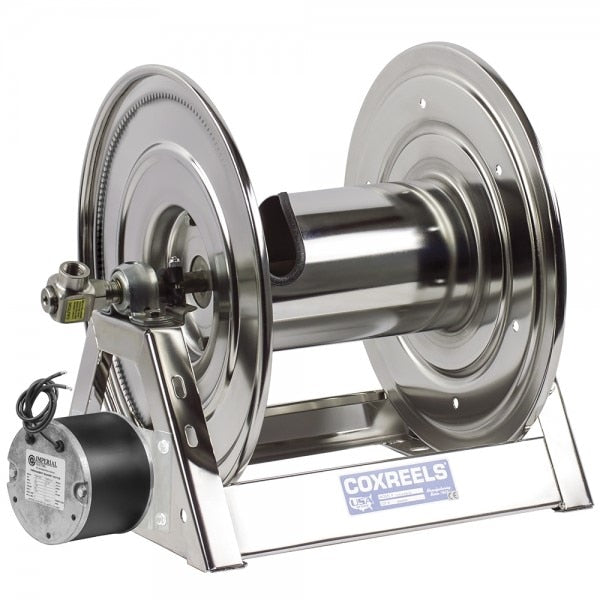

Coxreels 1125-5-100-SP Stainless Steel Hose Reel 3/4 in 100 Ft

Product Description

The COXREELS 1125-5-100-SP is a heavy-duty stainless steel hand crank hose reel built for demanding service environments where corrosion, rust, and contamination are ongoing concerns. Part of the COXREELS 1125-SS Series, this reel features an electro-polished stainless steel construction with a fully stainless fluid path, delivering clean and non-corrosive performance. The hose inlet is a machined 90-degree full-flow NPT swivel, and the drum accepts 3/4 inch ID hose up to 100 feet in length. Weighing 42 pounds, this is a substantial, permanent-installation reel suited for professional service settings.

This hose reel is designed for applications where standard steel reels are unsuitable due to exposure to moisture, chemicals, or sanitation requirements. Typical use cases include food and chemical processing facilities, marinas, wash-down stations, and industrial environments where rust and corrosion are persistent problems. The hand crank drive and adjustable tension brake make it practical for controlled, repeated hose deployment and retrieval without free-wheeling.

Key Features

• Electro-polished stainless steel construction throughout, including a fully stainless internal fluid path
• Machined stainless steel 90-degree full-flow NPT swivel inlet for a non-corrosive external fluid connection
• CNC robotically spun and ribbed stainless steel discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile stainless steel outlet riser with open drum slot design for flat, non-crimping hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for secure installation
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake for smooth, controlled rotation

Compatibility

Designed as an OEM-style replacement and standard offering within the COXREELS 1125-SS Series, compatible with 3/4 inch ID hose up to 100 feet in length in corrosion-sensitive professional installations.

Installation Notes

Installation is typically performed by a licensed plumber or industrial maintenance technician. Shut off all fluid supply and depressurize the hose line fully before mounting or connecting the reel. The base mounting pattern is integrated into the A-frame base, so secure anchoring to a fixed surface is required before connecting fluid supply lines. Follow applicable facility and local plumbing codes for connection fittings and pressure ratings.

Technical Specifications

• Hose Inside Diameter: 3/4 inches
• Hose Outside Diameter: 1-1/4 inches
• Hose Length Capacity: 100 feet
• Weight: 42 pounds
• Material: Electro-polished stainless steel
• Drive Type: Direct hand crank
• Inlet Type: 90-degree full-flow NPT swivel
• Frame: One-piece CNC welded 1/4 inch stainless steel A-frame
• UPC: 674255851993

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-100-SP
