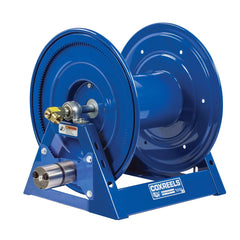

Coxreels 1125-5-100-H Hose Reel 3/4 in Id 100 Ft

Product Description

The COXREELS 1125-5-100-H is a hand crank hose reel from the 1125 Series, built for demanding industrial and trade applications. The reel accepts 3/4 inch ID hose up to 100 feet in length and features a one-piece, all-welded 12-gauge steel A-frame base for rigid, reliable support. A machined solid-brass 90-degree full-flow NPT swivel allows fast hose installation and seal servicing without removing the reel from its mount. CNC robotically spun and ribbed discs with rolled edges protect the hose and the operator. The direct hand crank provides straightforward mechanical retraction. Plumbing and industrial maintenance professionals are the primary installers of this unit.

The 1125-5-100-H is suited for stationary or semi-permanent installations in industrial plants, service garages, wash bays, and plumbing service environments. The low-profile outlet riser and open drum slot design guides hose onto the drum in a flat, non-crimping wrap, extending hose service life. The CPC powder coat finish resists chipping and corrosion in wet or chemically active service areas. This reel is appropriate for applications requiring organized, retractable hose management at a fixed service point.

Key Features

• One-piece, all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Machined solid-brass 90-degree full-flow NPT swivel — serviceable without dismounting the reel
• Low-profile outlet riser and open drum slot design for flat, non-crimping hose wrap
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life
• Direct hand crank for easy mechanical hose retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1125 Series platform for 3/4 inch ID hose applications up to 100 feet.

Installation Notes

Installation is typically performed by licensed plumbers or qualified industrial maintenance technicians. Shut off the supply line and relieve system pressure completely before connecting or disconnecting the swivel fitting. Mount the A-frame base to a structurally adequate surface using the integrated mounting pattern in the steel base. Verify that the hose material and fittings are rated for the intended fluid type and working pressure before placing the reel in service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length Capacity: 100 feet
• Hose OD: 1-1/4 inches
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 48 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-100-H
