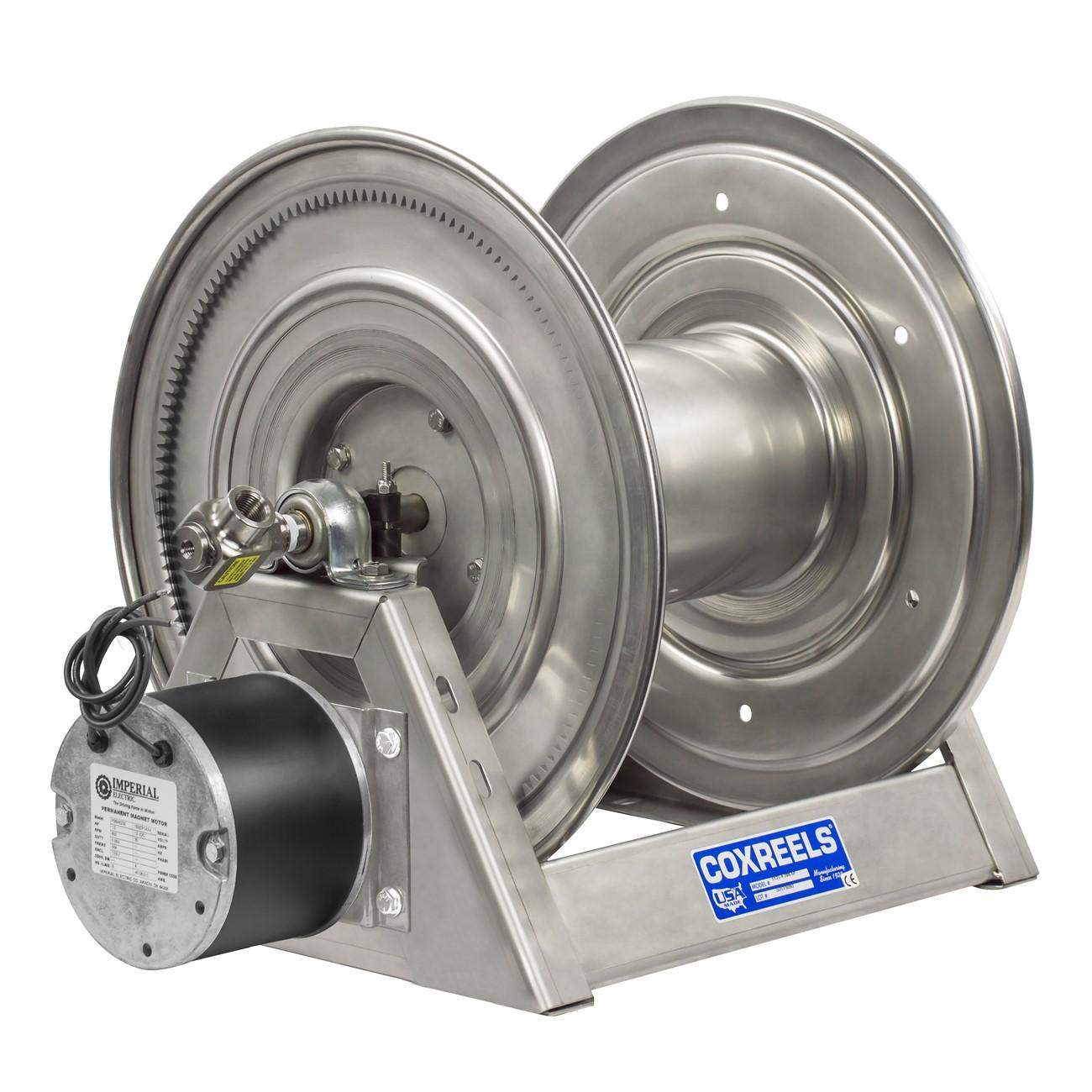

Coxreels 1125-5-100-E-SP Ss Motorized Hose Reel 3/4in 100ft

Product Description

The COXREELS 1125-5-100-E-SP is a heavy-duty stainless steel motorized hose reel designed for demanding fluid-handling environments. It features a 12V DC, 1/3 HP reversible electric motor and accommodates 3/4 inch ID hose up to 100 feet. The reel is constructed from electro-polished stainless steel throughout, including all fluid-path components, delivering corrosion-free performance in applications where rust, contamination, or chemical exposure are ongoing concerns. Licensed tradespeople and facility maintenance professionals install this unit in fixed-mount configurations.

This hose reel is built for environments where standard carbon steel or zinc-plated reels fall short. Typical applications include food and beverage processing facilities, chemical handling operations, marinas, and coastal installations where salt air and moisture accelerate corrosion. The fully stainless construction — frame, discs, swivel, and outlet riser — keeps fluid paths clean and uncontaminated. The low-profile outlet riser and open drum slot design produce a flat, non-crimping hose wrap, which is critical in high-cycle-count installations.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retrieval
• Electro-polished stainless steel construction throughout — frame, discs, swivel, and fluid path
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid path
• CNC robotically spun and ribbed stainless steel discs with rolled edges for strength and hose protection
• Exclusive low-profile stainless steel outlet riser and open drum slot for flat, non-crimping hose wrap
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake to prevent freewheeling

Compatibility

Designed as an OEM-style replacement and standard production unit in the COXREELS 1125-SS Series, suitable for 3/4 inch ID hose applications requiring a 100-foot capacity electric-drive stainless steel reel.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-handling equipment and low-voltage DC wiring. Power down all connected fluid and electrical supplies before mounting or servicing the reel. The one-piece CNC-welded 1/4 inch stainless steel A-frame base includes an integrated mounting pattern for secure attachment to a fixed surface — do not substitute the base mounting with field-fabricated brackets. Verify that the 12V DC power source is properly fused and meets the motor draw requirements before initial startup.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inches
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 1/4 inch stainless steel, CNC robotically welded one-piece A-frame
• Disc Construction: CNC robotically spun and ribbed stainless steel with rolled edges
• Swivel Inlet: Machined stainless steel 90-degree full-flow NPT
• Bearings: Permanently lubricated self-aligning pillow block
• Finish: Electro-polished stainless steel (standard unpolished as-manufactured also available)
• Weight: 55 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-100-E-SP
