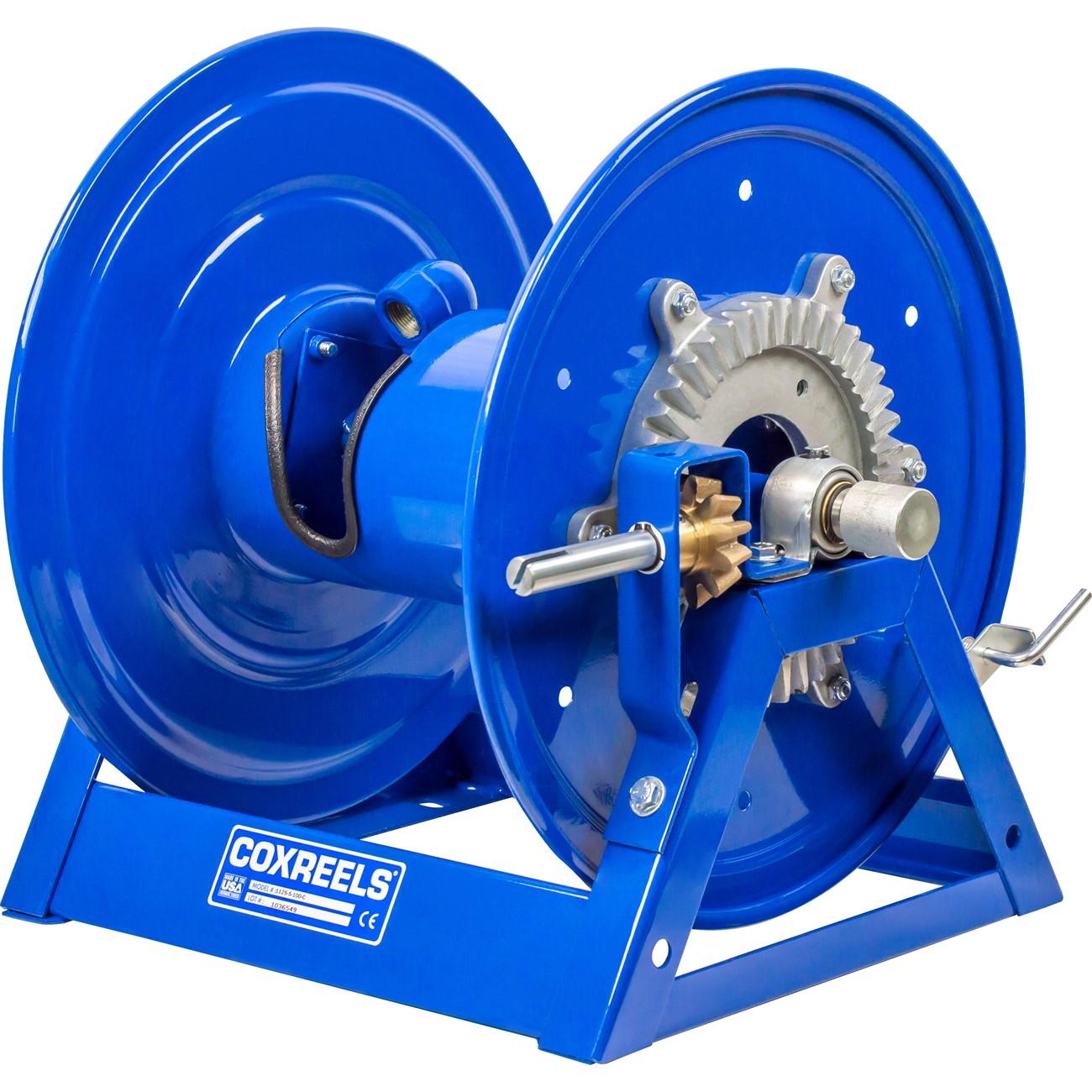

Coxreels 1125-5-100-C Hose Reel 3/4 Inch 100 Ft 12V Dc

Product Description

The COXREELS 1125-5-100-C is a heavy-duty hose reel from the 1125 Series, built for industrial and commercial service applications requiring reliable hose management. It accepts a 3/4 inch ID hose up to 100 feet in length and features both hand crank and 12V DC motorized retrieval options. The frame is constructed from 12-gauge steel using a one-piece all-welded A-frame base for rigid, bolt-free structure. CNC-spun and ribbed discs with rolled edges deliver added strength and hose protection. An exclusive low-profile outlet riser and open drum slot design keeps hose wrap flat and non-crimping throughout the full reel cycle.

The 1125-5-100-C is suited for industrial facilities, service vehicles, agricultural operations, and maintenance environments where a durable, high-cycle hose reel is required. The motorized 12V DC drive makes it practical for mobile service trucks and remote-power applications. Typical installations handle petroleum products, water, air, and other compatible media routed through 3/4 inch hose assemblies. Licensed trades including plumbers, HVAC service technicians, and general industrial maintenance crews commonly deploy this reel series in both fixed-mount and vehicle-mount configurations.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for rigid structure without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without removing reel from mount
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat hose wrap
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service life
• Reversible 12V DC 1/3 HP motor with adjustable tension brake to prevent free-wheeling
• CPC powder coat finish rated for chip resistance and rust inhibition

Compatibility

Designed for use with 3/4 inch ID hose up to 100 feet in length. Intended as a fixed or vehicle-mount industrial hose reel for applications compatible with the COXREELS 1125 Series mounting pattern and NPT swivel connection.

Installation Notes

Install by a qualified technician familiar with hose reel mounting and 12V DC electrical connections. Secure the A-frame base to a flat, load-rated surface using the integrated mounting pattern before connecting hose or power. Disconnect the 12V DC power source before servicing the motor, swivel, or bearings. Verify that hose media compatibility and pressure ratings are confirmed before placing the reel in service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length Capacity: 100 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, one-piece all-welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 42 pounds
• UPC: 674255855342

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-100-C
