Coxreels 1125-5-100-A Hose Reel 3/4 in 100 Ft

Product Description

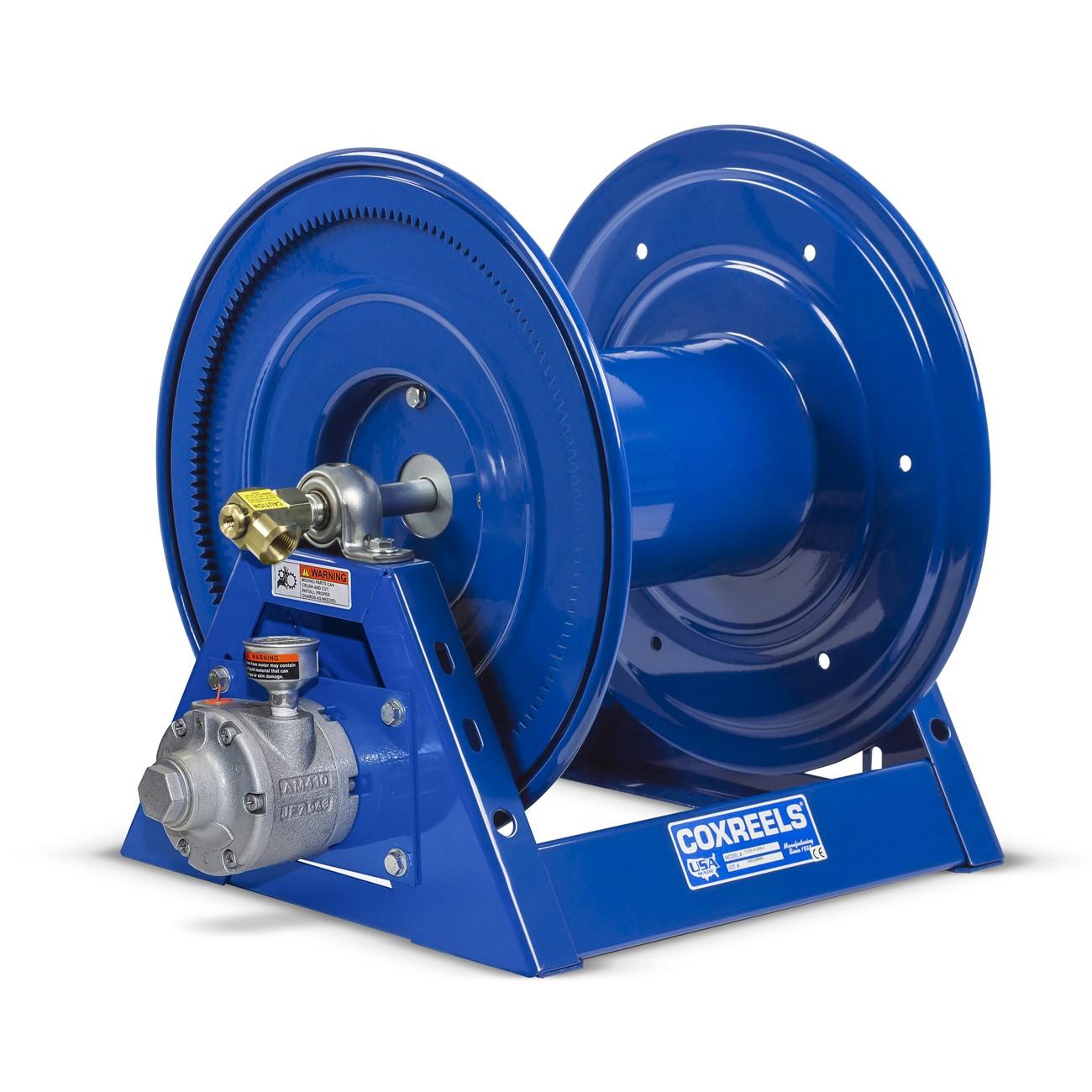

The COXREELS 1125-5-100-A is a heavy-duty industrial hose reel from the 1125 Series, designed for hand crank and motorized operation in demanding trade and industrial environments. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel accepts 3/4 inch ID hose up to 100 feet in length. The low-profile outlet riser and open drum slot design guides hose onto the drum in a flat, smooth wrap that eliminates crimping. CNC robotically spun and ribbed discs with rolled edges add structural strength while protecting hose from abrasion. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. The unit weighs 50 pounds and ships as a single assembly.

The 1125-5-100-A is suited for industrial, commercial, and heavy-trade applications where reliable hose management is critical. Typical installations include workshop air supply lines, fluid transfer stations, wash-down bays, and maintenance facilities. The reel accommodates both hand crank and motorized operation, making it appropriate for fixed-mount service points in manufacturing plants, fleet shops, and industrial maintenance operations. Licensed tradespeople installing hose reels for compressed air, water, or fluid delivery systems will find the mounting pattern integrated into the steel base for straightforward installation and future removal.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints for superior structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose changes without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design prevents hose crimping and ensures a flat, smooth wrap
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish is chip-resistant and rust-inhibiting for extended service in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for industrial and commercial fixed-mount applications requiring 3/4 inch ID hose capacity up to 100 feet.

Installation Notes

Installation is typically performed by a qualified millwright, pipefitter, or maintenance technician. Shut off and depressurize the supply line completely before connecting or disconnecting hose or fittings. The mounting pattern is built into the steel base — secure the reel to a structurally adequate surface rated for the combined weight of the reel, hose, and fluid load. Follow applicable facility safety codes and manufacturer torque guidelines for threaded NPT connections.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/4 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255822429

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-5-100-A
