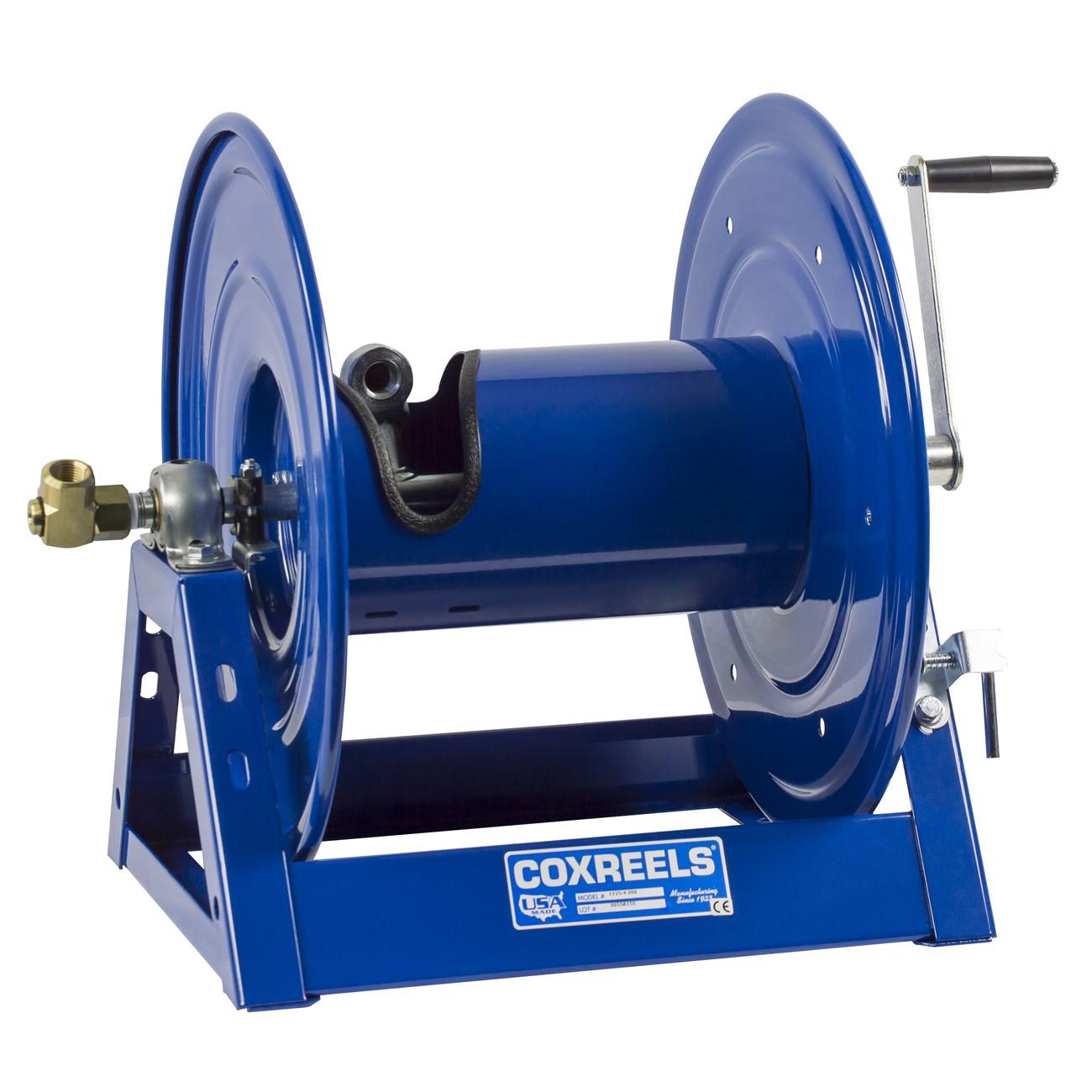

Coxreels 1125-4-500 Hose Reel 1/2 in Id 500 Ft

Product Description

The COXREELS 1125-4-500 is a heavy-duty hand crank hose reel built for demanding industrial and commercial applications. Designed around the 1125 Series platform, it accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 500 feet in length. The reel features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs, and permanently lubricated self-aligning pillow block bearings. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount. Licensed HVAC, plumbing, and industrial service technicians are the primary installers and operators of this unit.

The 1125-4-500 is suited for stationary and semi-permanent installations in industrial plants, service shops, fleet maintenance bays, and commercial facilities where long hose runs are required. The 500-foot capacity makes it appropriate for large work areas where multiple connection points are not practical. The open drum slot and low-profile outlet riser prevent hose crimping and promote a flat, smooth wrap across the full drum width, reducing wear on hose over repeated cycles.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints — for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel supports seal maintenance without dismounting the reel
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Exclusive low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat wrap
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Adjustable tension brake prevents free-wheeling; direct hand crank allows controlled mechanical retraction

Compatibility

Designed to accept hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 500 feet in length, consistent with standard 1/2 inch NPT-compatible hose assemblies used in industrial fluid and air distribution systems.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid handling systems and applicable workplace safety codes. Shut off all pressure to the supply line and bleed residual pressure before connecting or disconnecting hose at the swivel. Mount the reel to a structurally sound surface using the integrated base mounting pattern and fasteners rated for the combined weight of the reel and fully loaded hose. Verify swivel thread engagement and fitting torque are appropriate for the working pressure of the connected hose assembly before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 500 feet
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Retraction Method: Direct hand crank with adjustable tension brake
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 58 pounds
• UPC: 674255822252

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-500
