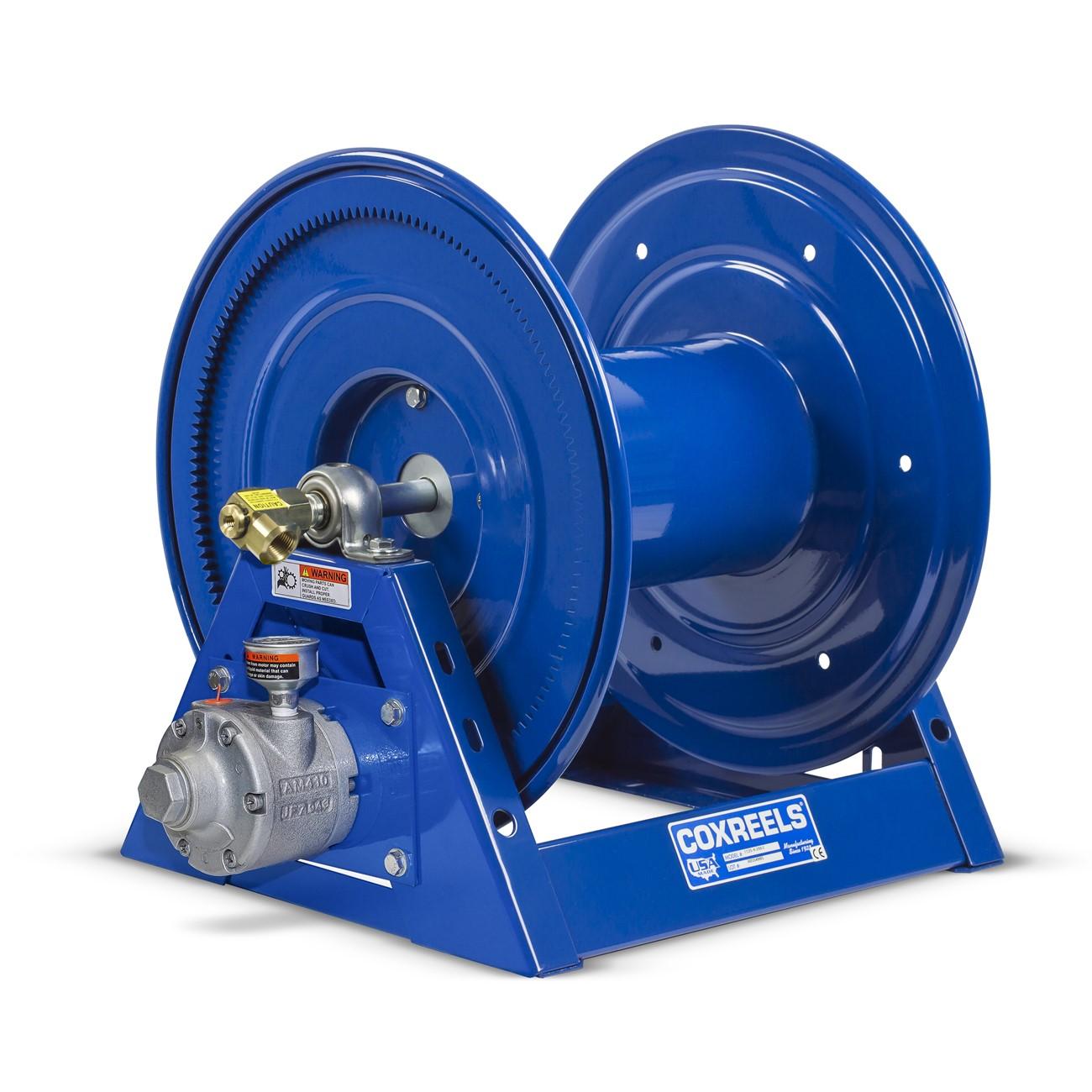

Coxreels 1125-4-500-A Hose Reel 1/2 Inch Id 500 Ft

Product Description

The COXREELS 1125-4-500-A is a heavy-duty hand crank and motorized hose reel from the 1125 Series, engineered for industrial and trade applications that demand reliable, high-volume hose management. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a capacity of 500 feet. The reel is built on a one-piece all-welded 12-gauge steel A-frame base and features CNC robotically spun and ribbed discs with rolled edges. A CPC powder coat finish provides chip resistance and rust inhibition for long service life in demanding environments. Licensed contractors and industrial service professionals install and maintain this unit.

The 1125-4-500-A is suited for industrial facilities, fleet maintenance shops, construction sites, and other commercial or heavy-duty service environments where large hose lengths must be stored and deployed efficiently. The open drum slot and low-profile outlet riser design allows hose to wrap flat without crimping, preserving hose integrity over repeated use cycles. The unit ships as a single reel assembly and is intended for fixed or semi-permanent mounting in professional service settings.

Key Features

• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose and operator protection
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low-maintenance operation
• CPC powder coat finish resists chips and rust for extended service life in harsh environments
• Includes aluminum body air 4-vane motor for motorized operation capability

Compatibility

Designed for use with 1/2 inch inner diameter hose up to 500 feet in length. Intended as a fixed-mount industrial hose reel for professional trade and facility maintenance applications.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial reel mounting practices. Shut off and depressurize any connected fluid or air supply lines before servicing or connecting hose. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 500 feet
• Frame Material: 12-gauge steel, all-welded one-piece construction
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Bearing Type: Permanently lubricated, self-aligning pillow block
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Motor: Aluminum body air 4-vane
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 66 pounds
• UPC: 674255822511

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-500-A
