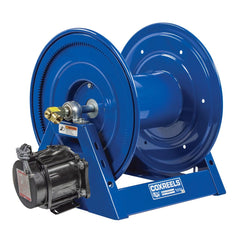

Coxreels 1125-4-450-EB Hose Reel 1/2 in 450 Ft Electric

Product Description

The COXREELS 1125-4-450-EB is a heavy-duty motorized hose reel built for industrial and commercial service applications. It accommodates hose with a 1/2 inch ID and 7/8 inch OD up to 450 feet in length and is powered by a 24-volt DC, 1/3 HP reversible electric motor. The reel rides on permanently lubricated, self-aligning pillow block bearings for smooth, consistent rotation under daily working loads. The one-piece, all-welded 12-gauge steel A-frame base provides a rigid mounting platform without bolted joints. A CPC powder coat finish resists chipping and rust for long service life in demanding environments. Licensed HVAC, plumbing, and industrial service technicians are the typical end users.

The 1125-4-450-EB suits high-volume hose management needs in commercial HVAC, industrial maintenance, oil and gas, and fleet service settings where large hose capacities and powered retraction are required. The open drum slot design and low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when working with long hose runs. The reel is suitable for wall, ceiling, or floor mounting depending on the application.

Key Features

• 24-volt DC, 1/3 HP reversible electric motor for powered hose retrieval
• Accommodates up to 450 feet of 1/2 inch ID hose
• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth, trouble-free rotation
• Low-profile outlet riser and open drum slot design prevent hose crimping during wrap
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125 Series motorized hose reel lineup, compatible with 1/2 inch ID hose assemblies requiring up to 450 feet of capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and low-voltage DC wiring. Disconnect and lock out all power sources before making electrical connections to the 24-volt DC motor circuit. Mount the reel to a structurally adequate surface using the mounting pattern located in the steel base. Verify hose end connections and swivel fittings are properly torqued per the hose manufacturer's specifications before pressurizing the system.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 450 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 78 pounds
• UPC: 674255837959

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-450-EB
