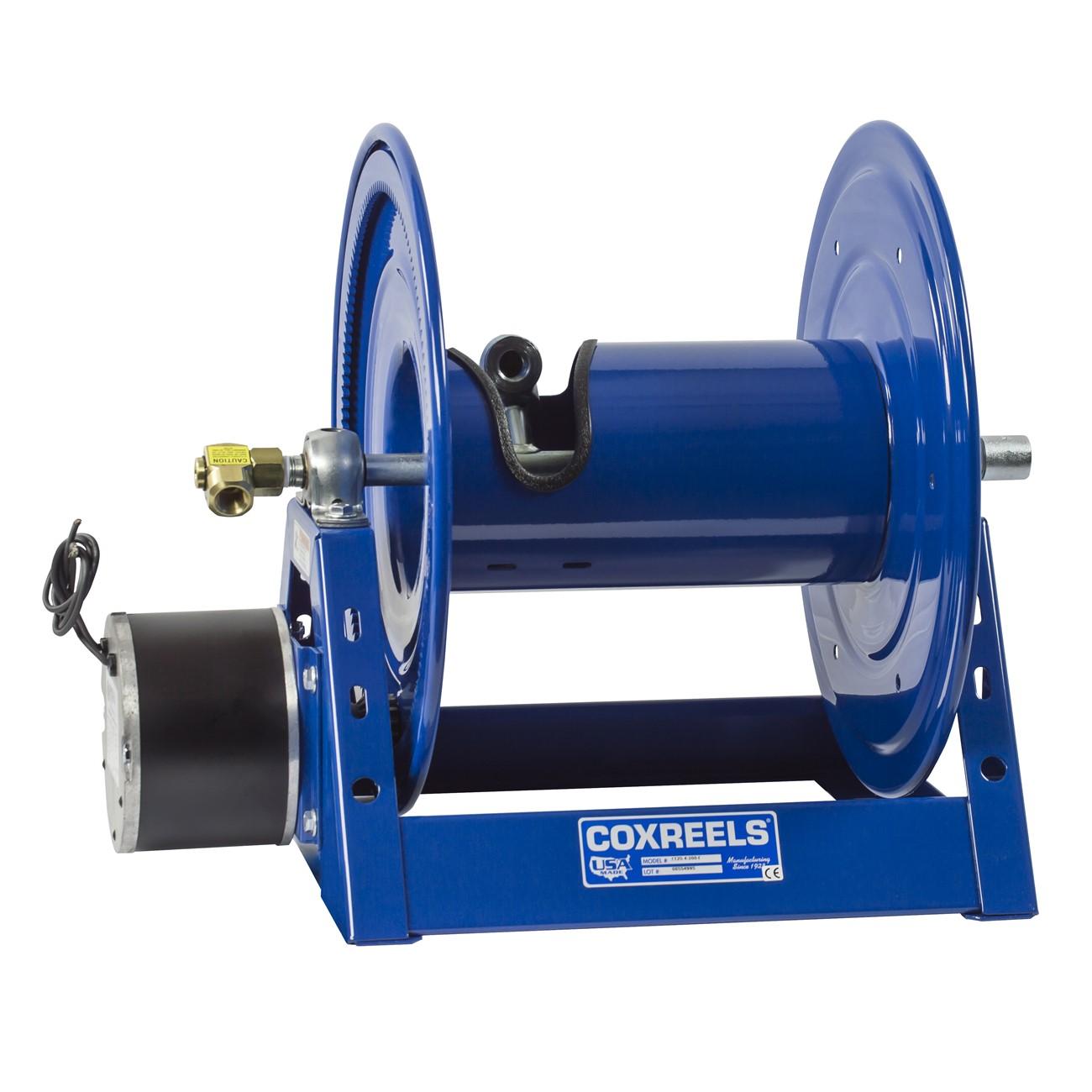

Coxreels 1125-4-450-E Motorized Hose Reel 450 Ft

Product Description

The COXREELS 1125-4-450-E is a heavy-duty motorized hose reel from the 1125 Series, built for industrial and commercial applications where reliable, high-capacity hose management is essential. The unit features a 12V DC, 1/3 HP reversible motor and accepts a 1/2 inch ID, 7/8 inch OD hose up to 450 feet in length. The reel is constructed around a one-piece, all-welded 12-gauge steel A-frame base and CNC robotically spun ribbed discs with rolled edges. Licensed HVAC, plumbing, and general mechanical contractors install this reel in shop, service truck, and permanent facility setups where extended hose runs and motorized retrieval are required.

The 1125-4-450-E is suited for industrial facilities, service shops, and fleet vehicles where a high-capacity hose reel must handle repeated daily use. The low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap, protecting hose integrity over long service life. The reel ships as a single unit and is compatible with standard mounting configurations via the integrated steel base mounting pattern.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval
• Accepts 1/2 inch ID, 7/8 inch OD hose up to 450 feet
• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolted-free structure
• CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or new-install hose reel for 1/2 inch ID hose applications in industrial, commercial, and service vehicle environments. Confirm hose OD does not exceed 7/8 inch before installation.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with hose reel mounting and low-voltage DC wiring. Power down or disconnect the 12V DC power source before making any electrical connections to the motor. Secure the reel to a structurally sound surface using the integrated mounting pattern in the steel base. Verify all NPT swivel fittings are properly sealed and that the hose is fully seated in the drum slot before first use.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Maximum Hose Length: 450 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 65 pounds
• UPC: 674255822351

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-450-E
