Coxreels 1125-4-450-A Hose Reel 1/2 Inch 450 Ft

Product Description

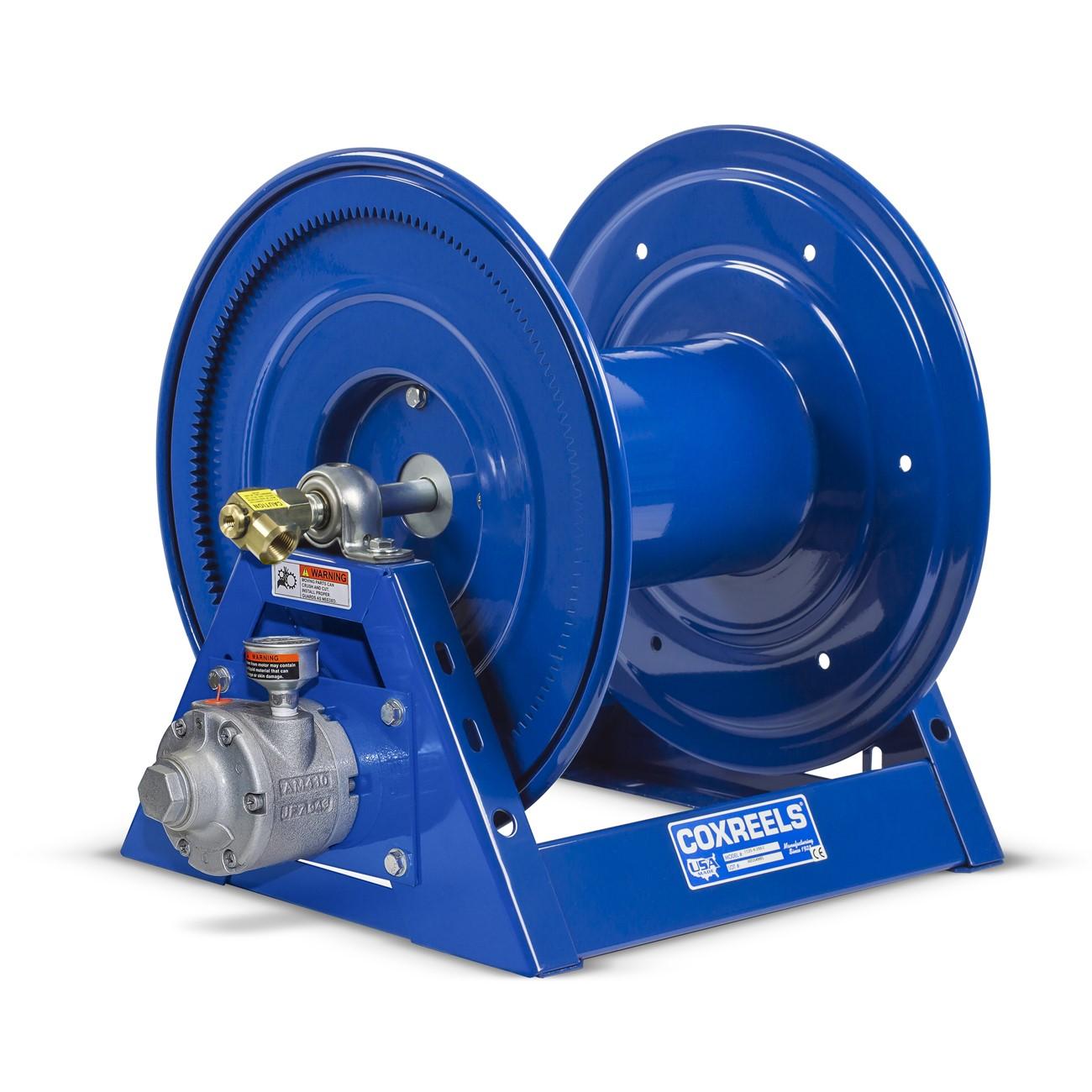

The COXREELS 1125-4-450-A is a heavy-duty hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a capacity of 450 feet. The reel features a one-piece all-welded steel A-frame base, CNC robotically spun ribbed discs, and a low-profile outlet riser with an open drum slot that promotes a flat, non-crimping hose wrap. Licensed plumbers, pipefitters, and industrial maintenance professionals rely on this reel for consistent, high-cycle service.

The 1125-4-450-A suits a wide range of industrial and commercial service environments where large hose capacities are required. The available hand crank and motorized configurations make it adaptable to both manual and powered retrieval setups. The welded steel frame and powder coat finish make it well-suited for shop floors, service bays, fleet maintenance facilities, and similar demanding installations where durability and corrosion resistance are priorities.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design ensures flat, non-crimping hose wrap
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Chip-resistant, rust-inhibiting CPC powder coat finish for extended corrosion protection

Compatibility

Designed as an OEM-style fit within the COXREELS 1125 Series platform, accommodating 1/2 inch inner diameter hose up to 450 feet in length with a 7/8 inch outer diameter.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid handling equipment. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the mounting pattern integrated into the steel base. Consult applicable OSHA and facility safety guidelines when working with high-pressure hose assemblies.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 450 feet
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 60 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-450-A
