Coxreels 1125-4-325 Hose Reel 1/2 Inch Id 325 Ft

Product Description

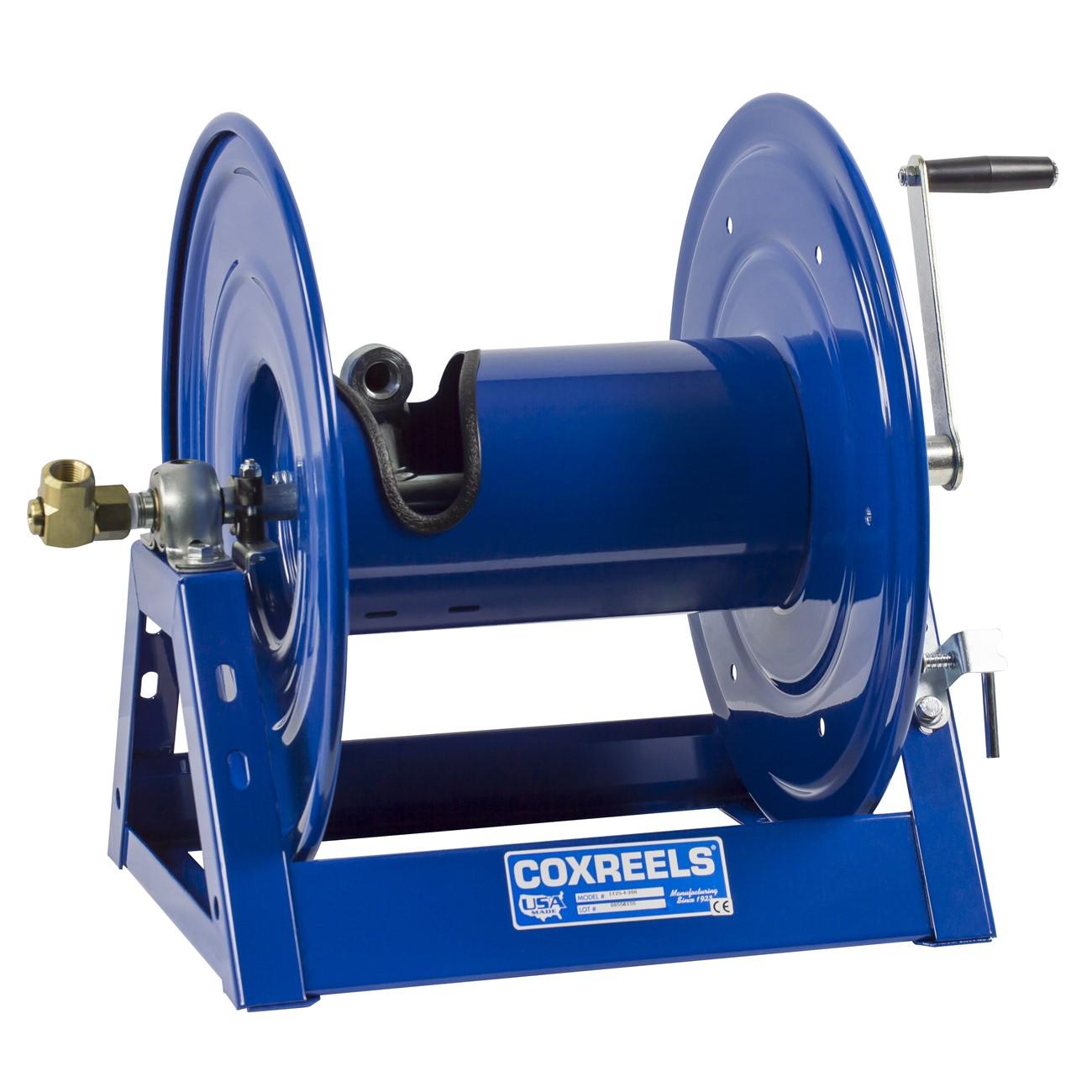

The COXREELS 1125-4-325 is a heavy-duty hand crank hose reel from the 1125 Series, designed for demanding industrial and trade applications. Built around a one-piece all-welded 12-gauge steel A-frame base, this reel accepts 1/2 inch ID hose with a 7/8 inch OD at a capacity of 325 feet. A machined solid brass 90-degree full-flow NPT swivel enables straightforward seal maintenance and fast hose installation without removing the reel from its mount. CNC robotically spun and ribbed discs with rolled edges deliver superior hose protection and operator safety. A licensed HVAC tech, plumber, or industrial service pro will find the retraction and layout process reliable across high-cycle service environments.

The 1125-4-325 is suited for industrial facilities, fleet maintenance bays, contractor rigs, and permanent wall or floor mount installations where large hose lengths are managed routinely. The open drum slot and low-profile outlet riser eliminate hose crimping and promote a flat, smooth wrap across the full 325-foot capacity. An adjustable tension brake prevents free-wheeling during payout, and the direct hand crank provides controlled mechanical retraction without external power. The CPC powder coat finish resists chipping and rust for long service life in harsh environments.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without dismounting the reel
• CNC spun and ribbed discs with rolled edges protect hose and improve operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures flat smooth wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation
• Adjustable tension brake prevents free-wheeling; direct hand crank enables easy mechanical retraction
• Chip-resistant, rust-inhibiting CPC powder coat finish for durability in demanding service environments

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS 1125 Series, accommodating 1/2 inch ID hose with 7/8 inch OD up to 325 feet in length.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with hose reel mounting requirements. Shut off all fluid supply and depressurize the system before connecting or disconnecting hose and swivel fittings. Secure the reel to a structurally adequate surface using the mounting pattern located in the steel base. Follow all applicable facility safety codes and manufacturer torque guidance for fitting connections.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 325 feet
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 48 pounds
• UPC: 674255822238

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325
