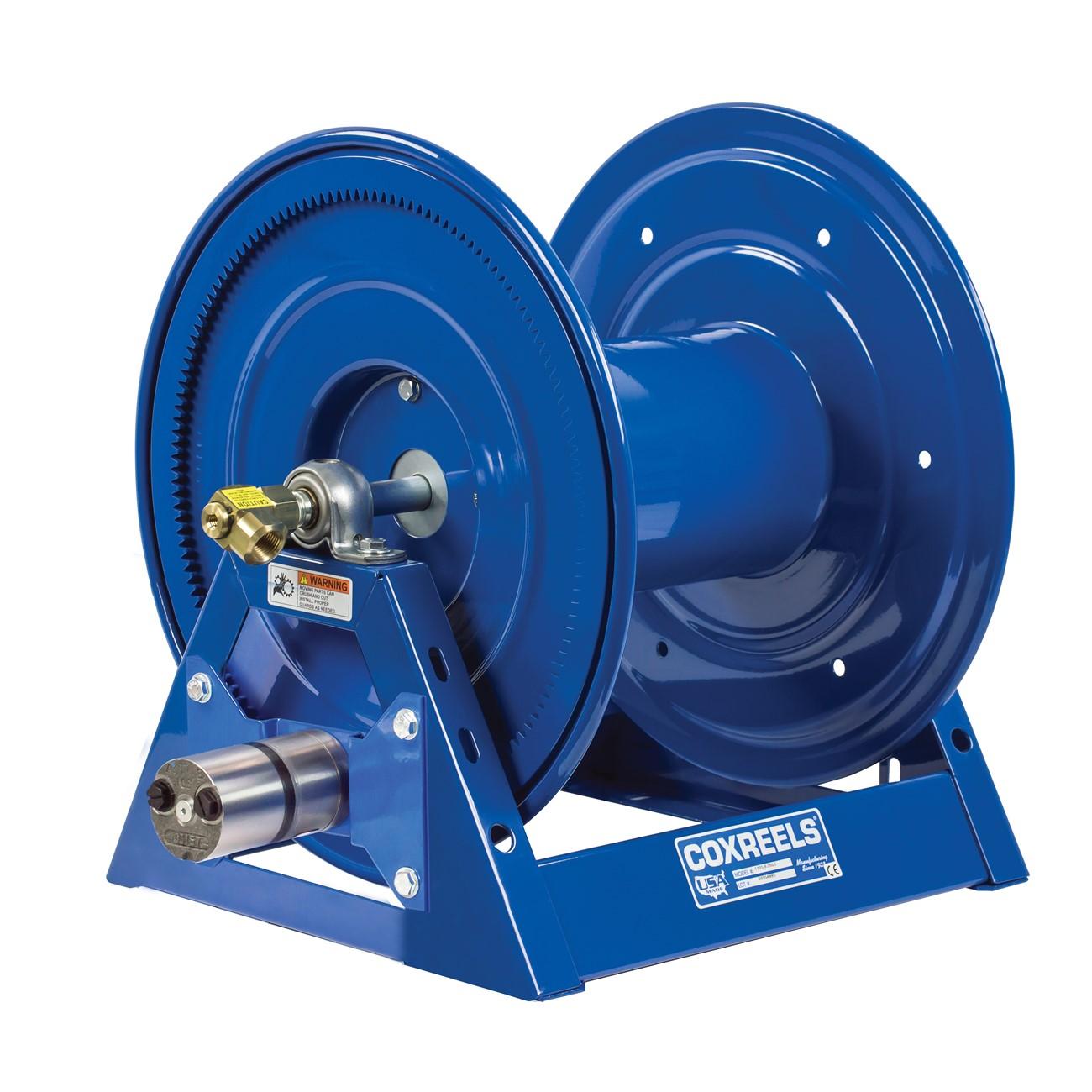

Coxreels 1125-4-325-H Hose Reel 1/2 in 325 Ft

Product Description

The COXREELS 1125-4-325-H is a heavy-duty industrial hose reel from the 1125 Series, designed for demanding service environments where reliable hose management and long service life are required. Built with a 1/2 inch ID and 7/8 inch OD hose capacity and a 325 ft hose length rating, this reel supports both hand crank and hydraulic motor operation. The all-welded A-frame base, CNC-spun ribbed discs, and permanently lubricated pillow block bearings make it a direct fit for professionals who need a reel that holds up under continuous use. Weighing 54 pounds, it is a substantial, fixed-mount unit intended for stationary service installations.

The 1125-4-325-H is suited for industrial, commercial, and heavy trade applications where large hose capacities are required. The open drum slot and low-profile outlet riser design ensures flat, smooth hose wrap without crimping, making it appropriate for fluid transfer, wash-down stations, lubrication systems, or similar high-cycle service points. The hydraulic motor drive option makes it well-suited for automated or remote-retract installations where manual cranking is impractical. Licensed mechanics, industrial maintenance technicians, and fluid-handling specialists are the primary installers.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended service in harsh environments
• Hydraulic motor included for powered retraction capability

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1125 Series, accommodating 1/2 inch ID hose up to 325 ft in length. Consult COXREELS documentation for full accessory and motor compatibility details.

Installation Notes

Installation should be performed by a qualified industrial mechanic or fluid-handling technician familiar with high-capacity hose reel mounting requirements. Shut off all fluid supply lines and relieve system pressure completely before mounting or connecting the reel. Secure the unit to a stable surface using the mounting pattern located in the steel base, following applicable facility and equipment codes. When connecting the hydraulic motor, ensure the hydraulic circuit is depressurized and all fittings are properly torqued per the hydraulic system manufacturer specifications.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Length Capacity: 325 ft
• Drive Type: Hand crank and hydraulic motor
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat
• Swivel Material: Solid brass
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 54 pounds
• UPC: 674255841857

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-H
