Coxreels 1125-4-325-ED Motorized Hose Reel 325 Ft 12V Dc

Product Description

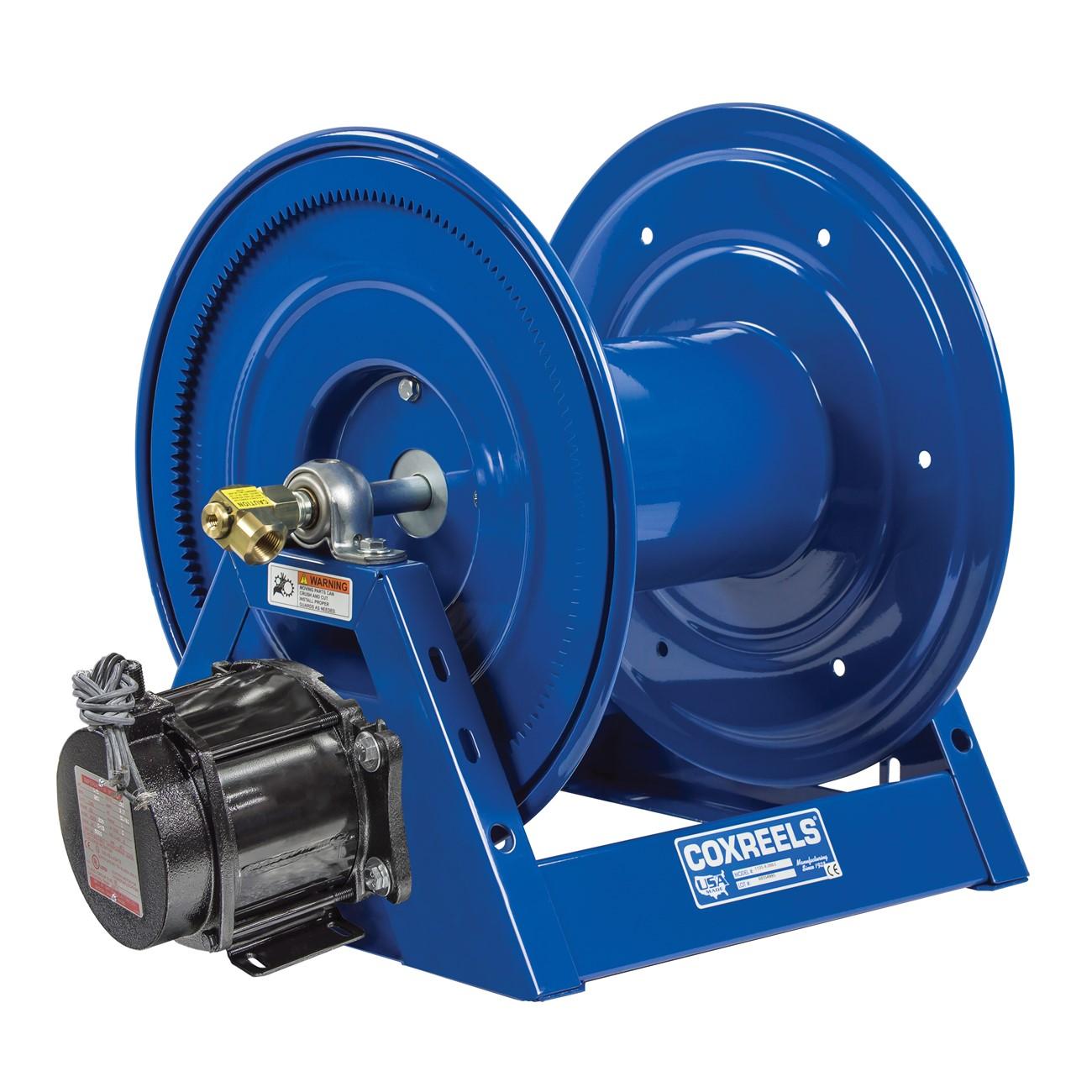

The COXREELS 1125-4-325-ED is a heavy-duty motorized hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a 325-foot hose capacity. Power comes from a 12V DC, 1/2 HP explosion-proof reversible motor, making it suitable for environments where ignitable gases or vapors may be present. The reel is built around a one-piece, all-welded 12-gauge steel A-frame base for rigid, reliable structure. Licensed trades and industrial service professionals install and operate this unit in fluid-handling and hose management setups.

This reel is suited for industrial service facilities, fleet maintenance shops, oil and gas operations, and other commercial environments requiring extended hose reach and motorized retraction. The 325-foot hose capacity supports large-scale fluid transfer or dispensing tasks. The explosion-proof motor designation makes it applicable in classified hazardous locations where standard motors are not permitted. Both hand-crank and motorized configurations are available in the 1125 Series, giving installers flexibility based on site requirements.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for motorized hose retraction in hazardous-rated environments
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• Heavy-duty CNC spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low-maintenance operation
• CPC powder coat finish resists chipping and rust for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125 Series, accommodating 1/2 inch ID hose up to 325 feet in length for industrial fluid-handling installations.

Installation Notes

Installation should be performed by a qualified technician familiar with motorized reel systems and local electrical codes. Disconnect and lock out all power sources before servicing the motor or electrical connections. In classified hazardous locations, verify the installation complies with applicable NEC requirements for explosion-proof equipment. Mount the reel using the integrated base mounting pattern and confirm all hose fittings are pressure-rated for the intended service before returning the system to operation.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 325 feet
• Motor Voltage: 12V DC
• Motor Output: 1/2 HP
• Motor Type: Explosion Proof Reversible
• Frame Material: 12-Gauge Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 74 pounds
• UPC: 674255822641

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-ED
