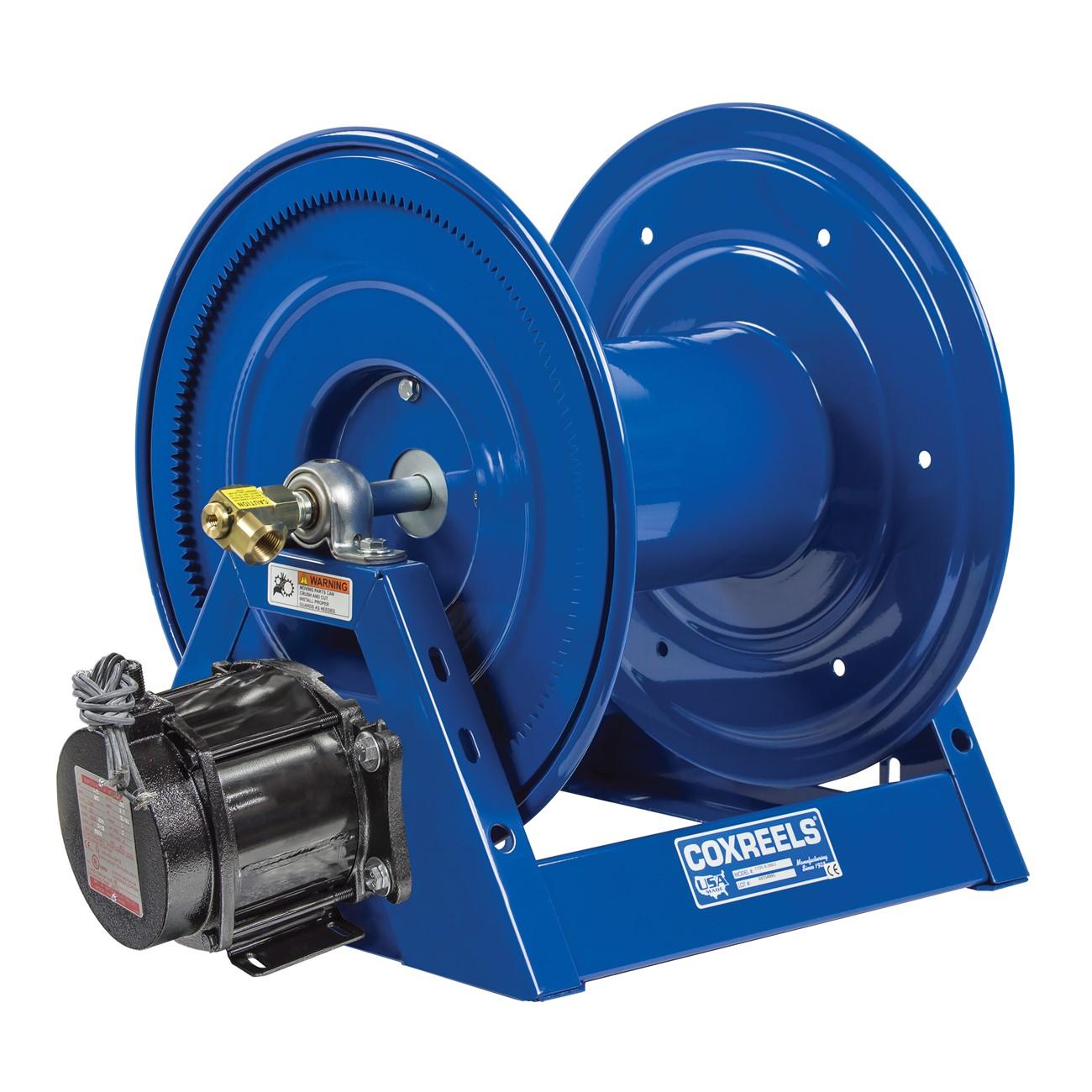

Coxreels 1125-4-325-EA Hose Reel 1/2 Inch Id 325 Ft

Product Description

The COXREELS 1125-4-325-EA is a heavy-duty hose reel from the 1125 Series, designed for industrial and commercial applications where reliable hose management is critical. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter at a working length of 325 feet. The reel ships as a single unit and weighs 74 pounds. It features a 115-volt AC, 1/2 HP reversible AC rectified motor alongside a hand crank option, giving operators flexible control during deployment and retrieval. A CPC powder coat finish resists chipping and rust for long service life in demanding environments. Licensed trades and industrial maintenance professionals are the primary installers.

The 1125-4-325-EA suits heavy industrial, commercial, and fleet maintenance settings where long hose runs are required. Its open drum slot and low-profile outlet riser design promotes a flat, non-crimping hose wrap, reducing wear on hose during repeated use. The all-welded steel A-frame base and permanently lubricated pillow block bearings support continuous-duty operation in workshops, service bays, and field service applications. No specific compatible models or systems are listed in the product data beyond the 1125 Series designation.

Key Features

• Accommodates 1/2 inch ID, 7/8 inch OD hose at 325 feet working length
• 115-volt AC, 1/2 HP reversible AC rectified motor with hand crank capability
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish provides chip resistance and rust inhibition

Compatibility

Designed as an OEM-style hose reel for industrial and commercial hose management systems requiring 1/2 inch ID hose capacity at extended lengths.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Shut off the fluid supply and depressurize the hose before mounting or servicing the reel. Electrical connections to the 115-volt AC motor must comply with applicable NEC requirements and should be performed by a licensed electrician. Ensure the mounting surface and fastener pattern are rated for the combined weight of the reel and fully loaded hose before securing the base.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Length: 325 feet
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Unit Length: 37 inches
• Unit Width: 21 inches
• Unit Height: 21 inches
• Weight: 74 pounds
• UPC: 674255822542

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-EA
