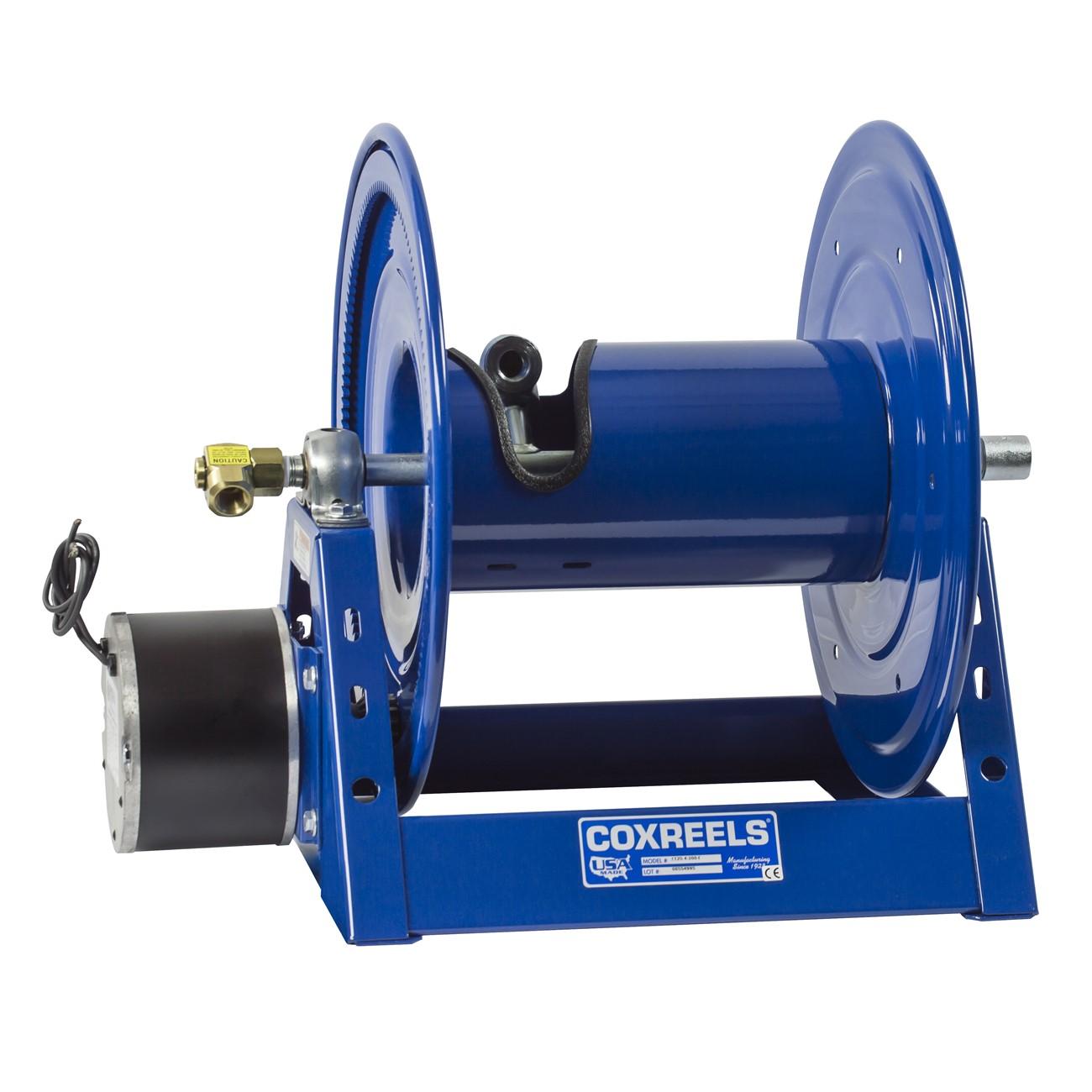

Coxreels 1125-4-325-E Motorized Hose Reel 325 Ft

Product Description

The COXREELS 1125-4-325-E is a heavy-duty motorized hose reel from the 1125 Series, designed for industrial and commercial hose management applications. It features a 12V DC, 1/3 HP reversible electric motor and accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 325 feet in length. The reel is built on a one-piece all-welded 12-gauge steel A-frame base and incorporates a low-profile outlet riser with an open drum slot design that delivers a non-crimping, flat smooth hose wrap. Licensed HVAC technicians, plumbers, and industrial service professionals install this unit in fleet vehicle bays, service trucks, and fixed facility applications.

The 1125-4-325-E fits demanding service environments where long hose runs and reliable retrieval are required. The motorized drive eliminates manual cranking on heavy or long hose assemblies, making it well-suited for high-volume or frequent-use installations. The open drum slot design and low-profile outlet riser reduce hose wear during winding and unwinding cycles. This reel is appropriate for use with air, water, and compatible fluid lines in both mobile and stationary service setups.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retrieval
• One-piece all-welded 12-gauge steel A-frame base for rigid, bolt-free structure
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low maintenance
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 325 feet in length. Consult the 1125 Series product line for compatible hose types and fluid service ratings.

Installation Notes

Install by a qualified technician familiar with hose reel mounting and low-voltage DC wiring. Power down the 12V DC supply circuit before making electrical connections to the motor. Secure the reel to a structurally adequate mounting surface using the integrated base mounting pattern. Follow applicable codes and manufacturer torque guidance for fasteners and fittings during installation.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 325 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 61 pounds
• UPC: 674255822344

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-E
