Coxreels 1125-4-325-E-BYXX Storage Hose Reel 12V Dc

Product Description

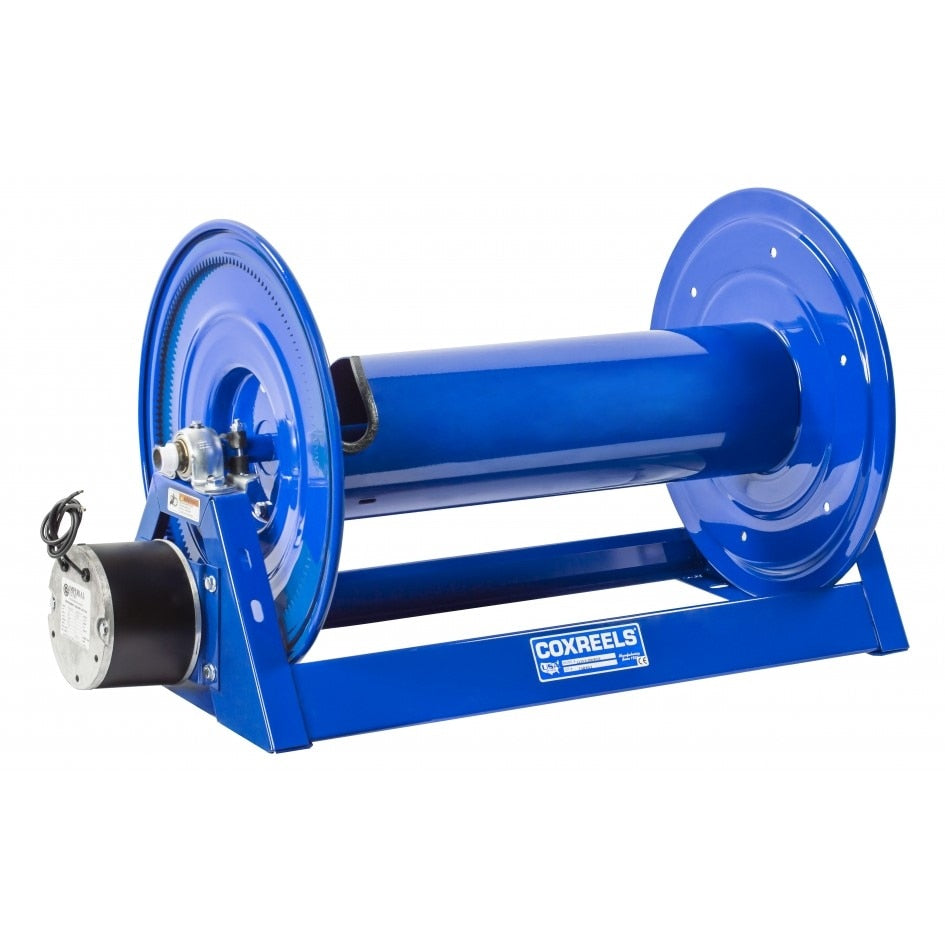

The COXREELS 1125-4-325-E-BYXX is a heavy-duty motorized storage reel designed for trade and industrial professionals who need to store and manage long runs of hose, cord, cable, rope, wire, tape, or chain. It runs on a 12-volt DC, 1/3 HP reversible electric motor that controls pay-out and retrieval without a swivel or riser — a configuration built specifically for storage applications rather than active fluid transfer. The frame is constructed from 1/4-inch steel using a fully CNC-robotically welded one-piece A-frame design. Discs are CNC-spun with ribbed profiles and rolled edges for structural integrity and operator safety. Finish is a CPC powder coat rated for chip resistance and rust inhibition.

This reel fits stationary or mobile installations in industrial, fleet maintenance, agricultural, construction, and utility service environments. It handles long lengths of material including standard hose, collapsible hose, power cord, cable, rope, barbed wire, tape, and chain. The motorized drive makes it well suited for situations where manual retrieval of heavy or lengthy material is impractical. Permanently lubricated, self-aligning pillow block bearings support smooth rotation under load. An adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage.

Key Features

• 12-volt DC, 1/3 HP reversible electric motor for powered retrieval and pay-out
• CNC robotically welded 1/4-inch steel one-piece A-frame base — no bolted joints
• CNC-spun, ribbed discs with rolled edges for strength, hose protection, and operator safety
• Adjustable tension brake prevents free-wheeling during operation and transport
• Permanently lubricated self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish for long-term chip and rust resistance
• No swivel, no riser — purpose-built for storage of hose, cord, cable, wire, rope, tape, and chain

Compatibility

Designed as an OEM-style storage reel for stationary or mobile installations requiring motorized management of long-length hose, cord, cable, rope, wire, tape, or chain in industrial and field service applications.

Installation Notes

Installation is typically performed by qualified maintenance or electrical personnel familiar with 12-volt DC wiring and mechanical reel mounting. Disconnect and lock out all power sources before connecting or servicing the motor. The steel base includes a pre-drilled mounting pattern for secure attachment to a stationary surface or mobile unit. Consult applicable NEC requirements when routing and connecting the DC power supply to the motor.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 1/4-inch steel, CNC robotically welded A-frame
• Disc Construction: CNC-spun, ribbed with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 61 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-E-BYXX
