Coxreels 1125-4-325-C Hose Reel 1/2 Inch 325 Ft

Product Description

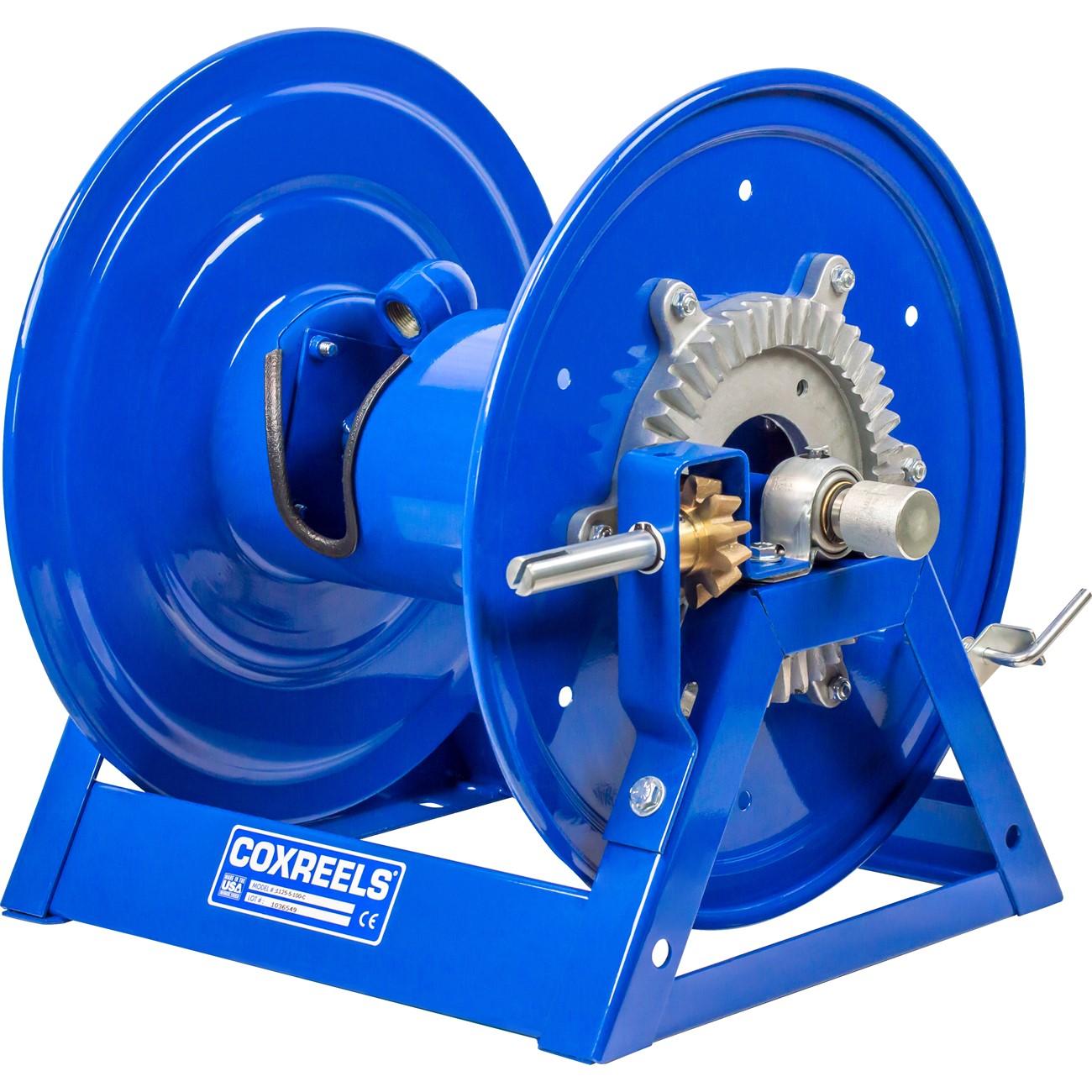

The COXREELS 1125-4-325-C is a heavy-duty hand crank hose reel from the 1125 Series, built for demanding industrial and trade applications. It accepts hose with a 1/2 inch ID and 7/8 inch OD, handling up to 325 feet of hose. The frame is a one-piece, all-welded 12-gauge steel A-frame base constructed with CNC robotic welding for structural rigidity without bolted joints. A low-profile outlet riser and open drum slot design ensures flat, non-crimping hose wrap. The reel ships as a single unit weighing 48 pounds. Licensed tradespeople and industrial maintenance crews are the primary installers of this equipment.

The 1125-4-325-C is suited for industrial plants, commercial facilities, fleet maintenance bays, and other heavy-use environments where large hose capacities and reliable retraction are required. The hand crank mechanism with a front bevel gear system provides controlled, mechanical hose retrieval. The open drum slot and low-profile riser make it appropriate for applications where hose kinking would cause operational or safety problems. This reel is sold individually and is intended for permanent or semi-permanent wall, floor, or ceiling mounting.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural integrity without bolted connections
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design delivers flat, non-crimping hose wrap across the full 325-foot capacity
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended service in harsh environments
• Adjustable tension brake prevents free-wheeling during hose payout

Compatibility

Designed for use with hose measuring 1/2 inch ID and 7/8 inch OD, with a maximum hose length of 325 feet, consistent with standard 1125 Series reel configurations for industrial hose management applications.

Installation Notes

Installation is typically performed by qualified industrial maintenance technicians or licensed tradespeople. Shut off all fluid supply and depressurize the hose line before mounting or connecting the reel. The mounting pattern is located in the steel base to facilitate secure attachment to a wall bracket, ceiling mount, or floor stand rated for the combined reel and hose weight. Consult applicable local codes and the manufacturer documentation for mounting hardware specifications and torque requirements.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Maximum Hose Length: 325 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 48 pounds
• UPC: 674255858336

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-325-C
