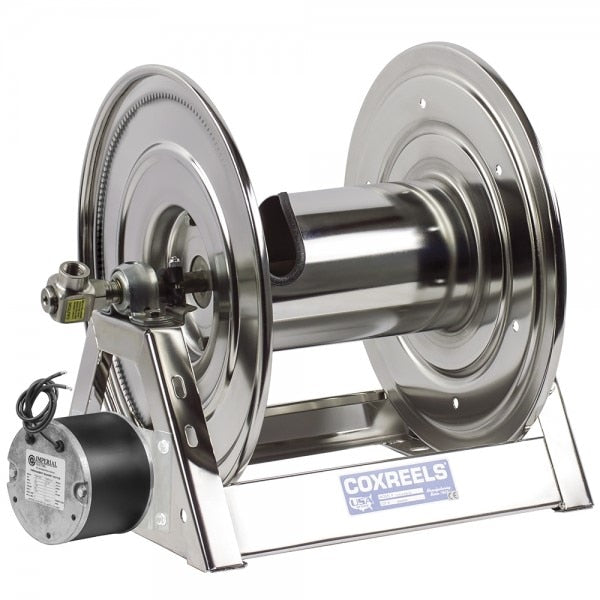

Coxreels 1125-4-200-SP Ss Hand Crank Hose Reel 1/2in 200ft

Product Description

The COXREELS 1125-4-200-SP is a stainless steel hand crank hose reel from the 1125-SS Series, built for demanding environments where corrosion, rust, and contamination are constant concerns. The reel features an electro-polished stainless steel construction with a fully stainless fluid path, keeping the media isolated from any corrosive or reactive metals. It accommodates 1/2 inch ID hose with a 7/8 inch OD up to 200 feet in length. A 90-degree full-flow NPT swivel inlet is machined from high-quality stainless steel, and the drum is formed from CNC robotically spun and ribbed stainless steel discs with rolled edges for strength and operator safety. Licensed tradespeople and industrial maintenance crews install this unit in settings where standard steel reels are not acceptable.

This hose reel is designed for applications that demand non-corrosive, contamination-free fluid handling. Typical environments include food and chemical processing facilities, marinas, wash-down stations, and any location where moisture, salt air, or aggressive chemicals accelerate corrosion on standard carbon steel equipment. The 1125-4-200-SP handles 200 feet of 1/2 inch ID hose, making it practical for larger service areas where hose reach is critical. The direct hand crank drive and adjustable tension brake give operators precise control over hose extension and retraction without free-wheeling.

Key Features

• Electro-polished stainless steel construction with fully stainless fluid path for corrosion resistance and media purity
• 90-degree full-flow stainless steel NPT swivel inlet machined for high-quality sealing and non-corrosive external fluid path
• CNC robotically spun and ribbed stainless steel discs with rolled edges for structural strength and hose protection
• Exclusive low-profile stainless steel outlet riser with open drum slot design for non-crimping, flat hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for secure installation
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake for smooth, controlled operation

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 200 feet in length. Suitable for food processing, chemical processing, marina, and industrial wash-down applications requiring stainless steel fluid paths and corrosion-resistant construction.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbers following applicable facility and local plumbing codes. Shut off fluid supply and depressurize the hose line completely before mounting or connecting the reel. Use the integrated A-frame base mounting pattern to secure the reel to a stable surface capable of supporting the reel weight plus a fully loaded 200-foot hose. Verify NPT thread connections are properly sealed with an appropriate thread sealant rated for the fluid media in use.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Length Capacity: 200 feet
• Frame Material: Stainless Steel (1/4 inch welded A-frame)
• Disc Material: Stainless Steel (CNC spun and ribbed)
• Finish: Electro-polished stainless steel
• Drive Type: Direct hand crank
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Bearings: Permanently lubricated self-aligning pillow block
• Weight: 39 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-SP
