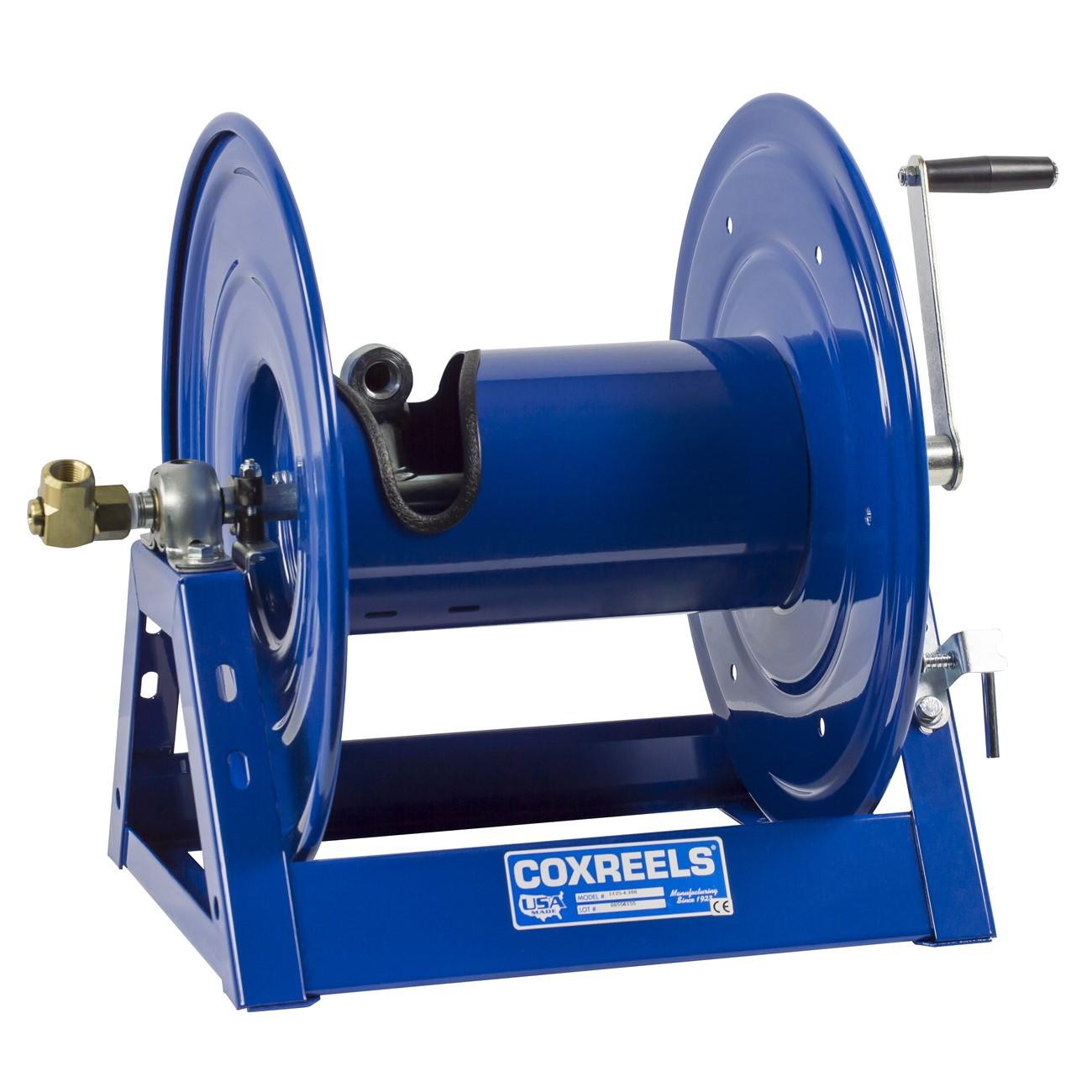

Coxreels 1125-4-200 Hose Reel 1/2 Inch Id 200 Ft

Product Description

The COXREELS 1125-4-200 is a heavy-duty hose reel from the 1125 Series, designed for demanding industrial and trade applications. It features a 1/2 inch ID inlet and accommodates up to 200 feet of hose. The reel is built on a one-piece, all-welded 12-gauge steel A-frame base and uses permanently lubricated, self-aligning pillow block bearings for smooth, consistent rotation. A direct hand crank provides mechanical retraction, and a CPC powder coat finish resists chipping and rust. This unit is suited for plumbing, HVAC, and general industrial service work where a durable, reliable hose management solution is required.

The 1125-4-200 is intended for professional trade use in shops, service bays, and field installations. Its open drum slot and low-profile outlet riser design allows hose to lay flat and smooth on the drum, preventing crimping during winding and unwinding. The adjustable tension brake prevents free-wheeling during payout. At 39 pounds and measuring 25.5 inches in length, 18 inches in width, and 20 inches in height, this reel is compact enough for fixed wall or floor mounting in tight service areas. It is a practical choice for HVAC technicians, plumbers, and industrial maintenance crews who need a stationary hose management solution.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat, smooth hose wrap
• CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling; direct hand crank enables easy mechanical retraction
• CPC powder coat finish resists chipping and rust for extended service life in harsh environments

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for professional trade applications requiring a 1/2 inch ID, 200-foot capacity fixed hose reel in the 1125 Series configuration.

Installation Notes

Installation is typically performed by a qualified tradesperson using standard hand tools. Mount the reel to a structurally sound wall, floor, or bench surface using the mounting pattern built into the steel base. Shut off the fluid supply line before connecting or disconnecting hose fittings at the swivel. Verify that all NPT threaded connections are properly sealed before restoring system pressure.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 ft
• Frame Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 39 pounds
• UPC: 674255822221

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200
