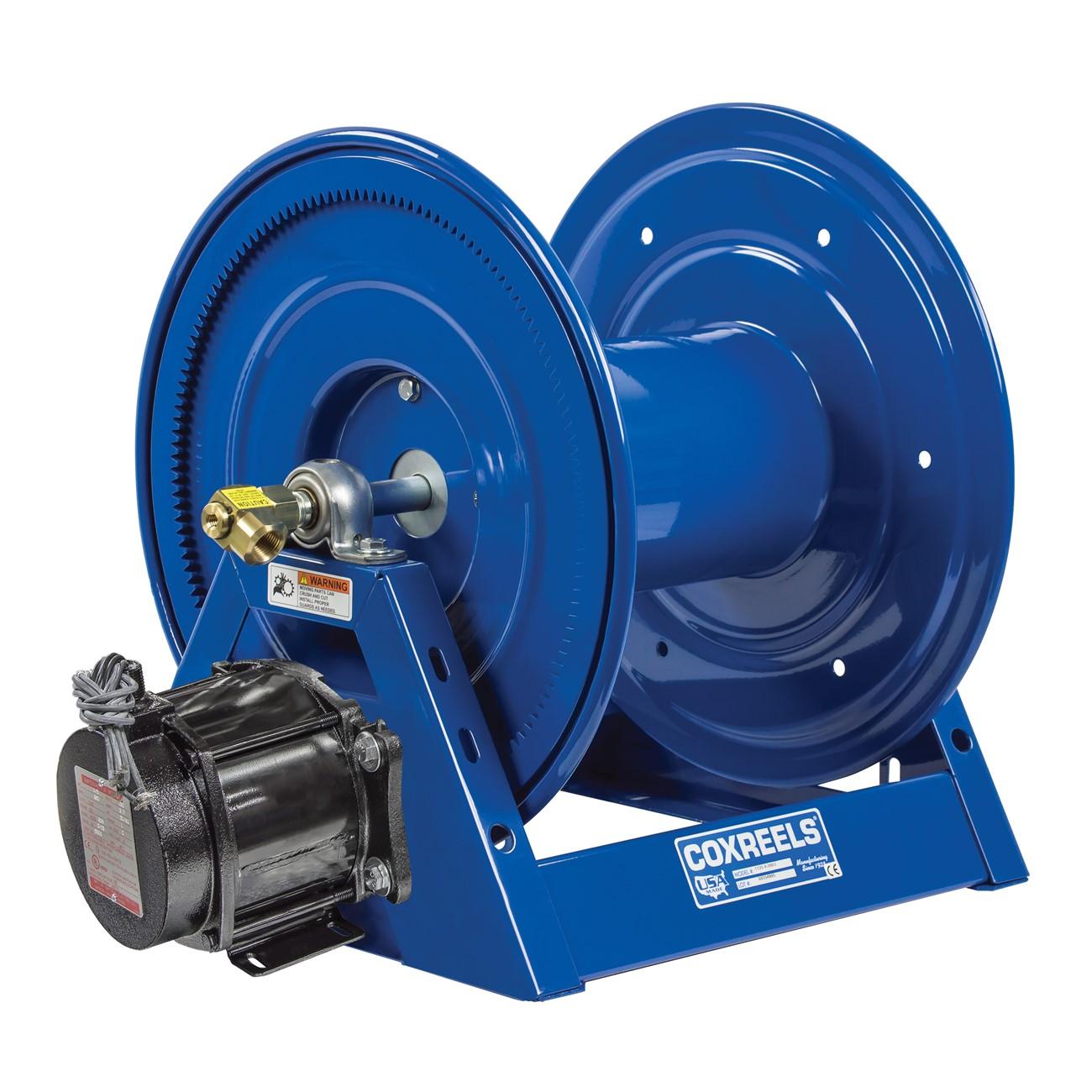

Coxreels 1125-4-200-ED Motorized Hose Reel 200 Ft

Product Description

The COXREELS 1125-4-200-ED is a motorized hose reel from the 1125 Series, designed for industrial and trade applications requiring reliable, high-cycle hose management. The reel is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suitable for environments where ignition hazards are a concern. It accommodates hose with a 1/2-inch inner diameter and 7/8-inch outer diameter up to 200 feet in length. The all-welded steel frame, CNC-spun discs, and permanently lubricated pillow block bearings combine to deliver a reel built for continuous use by maintenance crews, industrial technicians, and service professionals.

The 1125-4-200-ED is intended for industrial, commercial, and heavy-duty service environments where a motorized, wall- or floor-mounted hose reel is required. The explosion-proof motor makes it appropriate for use in facilities where flammable vapors or gases may be present. The open drum slot and low-profile outlet riser design supports clean, flat hose wrap without crimping, which extends hose service life in high-use settings. Typical installers include industrial maintenance technicians and fluid-handling system contractors.

Key Features

• 12-volt DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated areas
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service intervals
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed to accept hose with a 1/2-inch inner diameter and 7/8-inch outer diameter, with a maximum hose length of 200 feet. Consult COXREELS documentation to confirm fitting and mounting compatibility with your specific installation.

Installation Notes

Installation should be performed by a qualified technician familiar with both fluid-handling systems and low-voltage DC electrical connections. Disconnect and lock out all power sources before making electrical connections to the motor. The mounting pattern is located in the steel base; ensure the mounting surface is rated to support the weight of the reel plus a fully loaded hose. In hazardous-location installations, verify that all wiring and conduit comply with applicable NEC requirements for the classified area.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Maximum Hose Length: 200 feet
• Motor: 12 volts DC, 1/2 HP, explosion-proof reversible
• Frame Material: 12-gauge steel, all-welded
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 65 pounds
• Finish: CPC powder coat
• UPC: 674255822634

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-ED
