Coxreels 1125-4-200-ED-BYXX Storage Hose Reel 12V Dc

Product Description

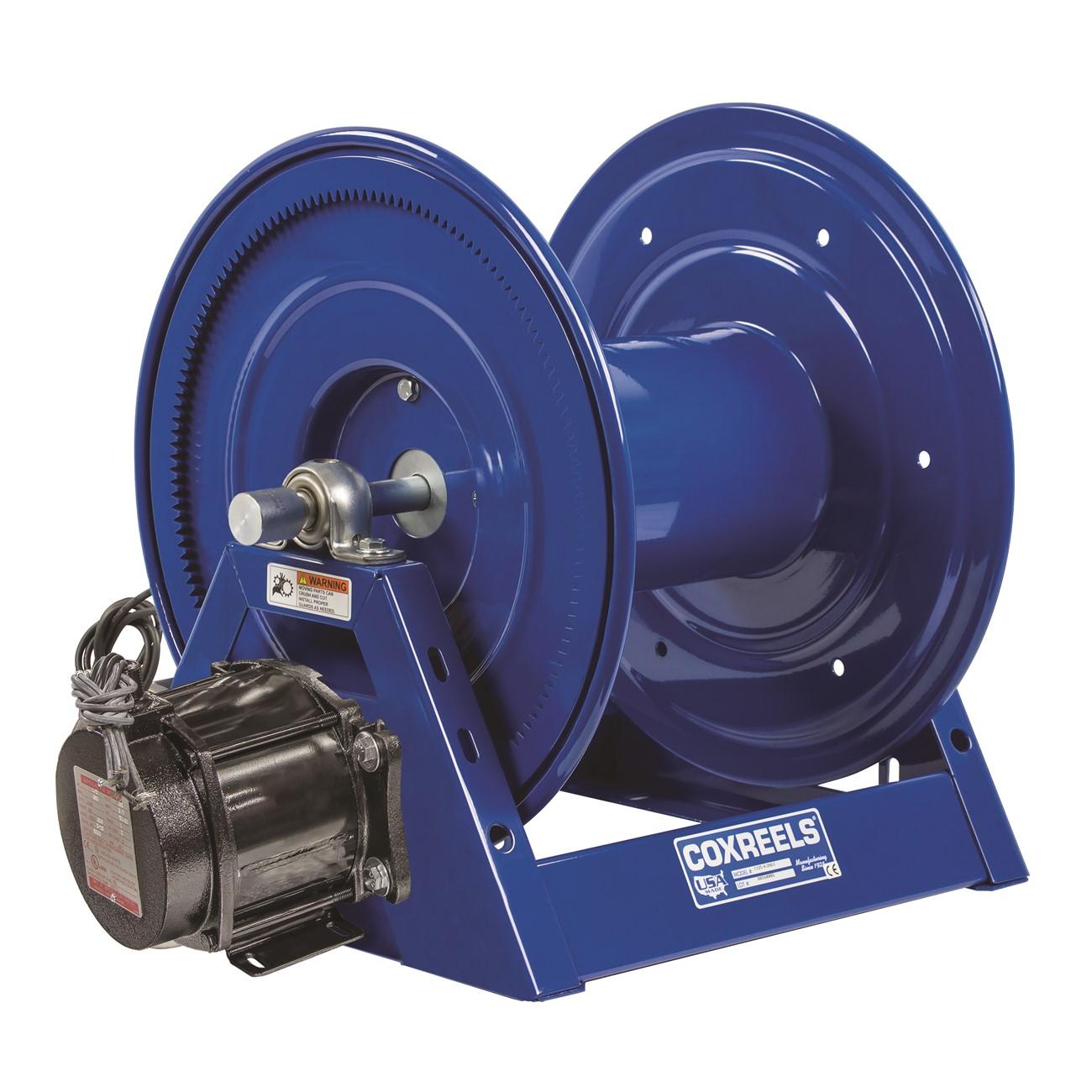

The COXREELS 1125-4-200-ED-BYXX is a heavy-duty motorized storage hose reel built for trade and industrial professionals who need reliable, long-length storage in demanding environments. The reel features CNC robotically spun and ribbed steel discs with rolled edges for structural strength and operator safety. Power comes from a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suitable for powered take-up and dispensing without a manual crank. Weighing 65 pounds and measuring 31 inches long by 21 inches wide by 21 inches high, this is a full-size unit intended for stationary or mobile mount applications.

This storage reel is designed for facilities, service vehicles, and industrial worksites where personnel need to store and manage long runs of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, or chain. The absence of a swivel and riser is intentional — this unit is purpose-built for storage and retrieval, not live fluid or electrical transfer. It fits both stationary floor-mount and mobile unit installations, making it adaptable for fleet maintenance shops, construction sites, and plant operations.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered storage and retrieval
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 1/4-inch steel A-frame base — not bolted — for superior structural integrity
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term reliability
• CPC powder coat finish resists chips, rust, and corrosion for extended service life

Compatibility

Designed as an OEM-style storage reel suitable for stationary or mobile mounting applications where long-length storage of hose, cord, cable, wire, rope, tape, or chain is required.

Installation Notes

Installation should be performed by a qualified technician familiar with 12-volt DC electrical systems and applicable NEC requirements for motor wiring. Secure all power to the motor circuit before servicing or mounting the reel. Mount using the integrated steel base mounting pattern; ensure the mounting surface can support the reel weight plus the weight of the stored material. Verify that the explosion-proof motor rating is appropriate for the surrounding environment before energizing.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Power: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: Steel, 1/4-inch welded A-frame
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 65 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-4-200-ED-BYXX
